Liberty D3660-Series Duplex Grinder Packages Buyers Guide & Review

The Liberty D3660 duplex grinder package series is built for residential and commercial applications. The package features two LSG/LSGX Omnivore grinder pump, basin, QuickTree float system, guide rail system, and piping.

Features:

Omnivore® Grinder Pumps with new V-Slice® Cutter Technology: Recessed cutter bolt eliminates wadding and exclusion cleanout slots clears debris from under the cutter. Provides superior cutting with improved shredding performance over radial cutters. V-pattern cutter provides up to 108 alternate cuts per revolution.
QuickTree® pre-mounted float system for pump control and alarm
NEMA 4X junction box for electrical connections included
Stainless steel chain for pump lift-out included
Includes Liberty's standard three year limited warranty

All internal brackets, floats, guide-rail base and discharge piping are pre-installed at the factory, saving hours of labor on the job site.

LIBERTY D3660-SERIES GRINDER PACKAGES

Model Comparison Chart

Model	Pump	Discharge	HP	Voltage	Phase	GPM	Max. Head	Basin	Discharge Depth
D3660LSG202-24	LSG202M	2"	2	208/230	1	50	108'	36" x 60"	24"
D3660LSG202-36	LSG202M	2"	2	208/230	1	50	108'	36" x 60"	36"
D3660LSG202-C-24*	LSG202M	2"	2	208/230	1	50	108'	36" x 60"	24"
D3660LSG202-C-36*	LSG202M	2"	2	208/230	1	50	108'	36" x 60"	36"
D3660LSG204-24	LSG204M	2"	2	440/480	3	50	108'	36" x 60"	24"
D3660LSG204-36	LSG204M	2"	2	440/480	3	50	108'	36" x 60"	36"
D3660LSG203-24	LSG203M	2"	2	208/230	3	50	108'	36" x 60"	24"
D3660LSG203-36	LSG203M	2"	2	208/230	3	50	108'	36" x 60"	36"
D3660LSGX202-36	LSGX202M	2"	2	208/230	1	38	185'	36" x 60"	36"
D3660LSGX202-24	LSGX202M	2"	2	208/230	1	38	185'	36" x 60"	24"
D3660LSGX202-C-24*	LSGX202M	2"	2	208/230	1	38	185'	36" x 60"	24"
D3660LSGX202-C-36*	LSGX202M	2"	2	208/230	1	38	185'	36" x 60"	36"
D3660LSGX203-24	LSGX203M	2"	2	208/230	3	38	185'	36" x 60"	24"
D3660LSGX204-24	LSGX204M	2"	2	440/480	3	38	185'	36" x 60"	24"
D3660LSGX204-24	LSGX204M	2"	2	440/480	3	38	185'	36" x 60"	24"
D3660LSGX204-36	LSGX204M	2"	2	440/480	3	38	185'	36" x 60"	36"

*Please note that pumps with the “C” suffix are for external capacitor applications and require the use of control panels fitted with properly matched capacitors and start relays.

PERFORMANCE CURVES

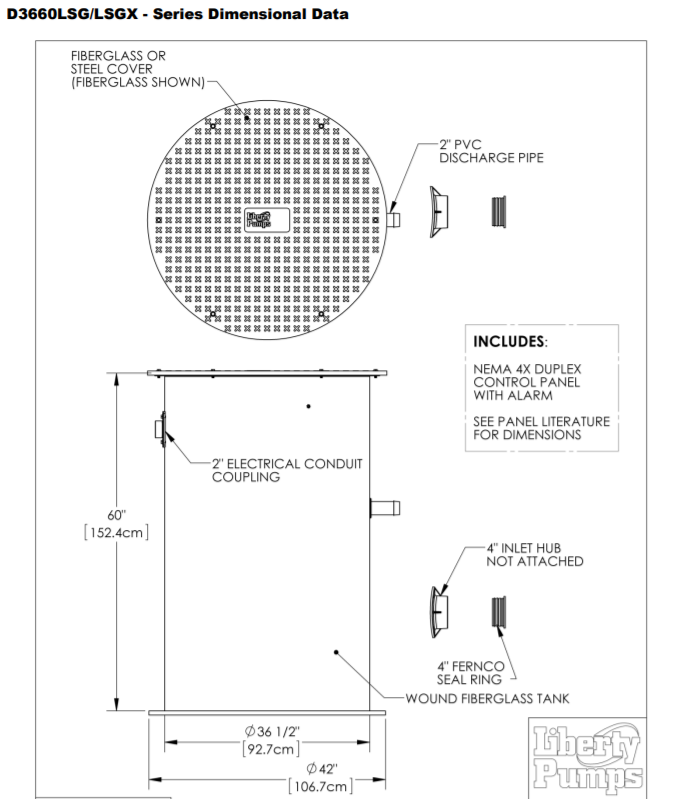

DIMENSIONAL DATA

GUIDE RAIL DIAGRAM

INSTALLATION

DIAGRAMS

TECHNICAL DATA

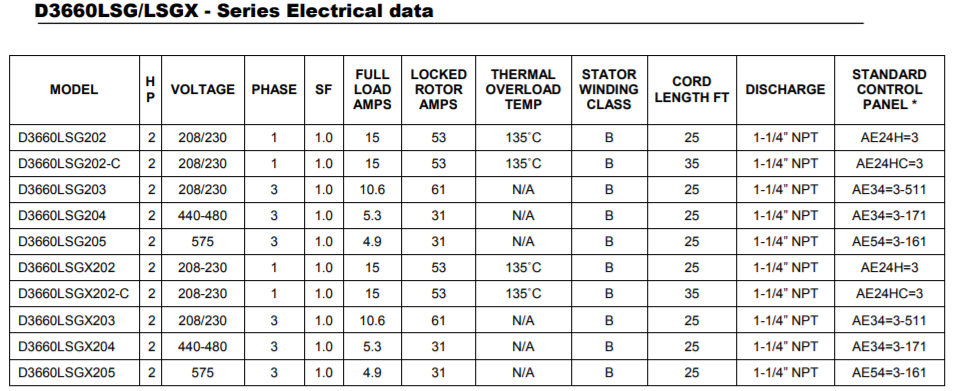

ELECTRICAL DATA

BROCHURE

Liberty D3600 Series Grinder Package Brochure

MANUAL

Liberty D3600 Series Grinder Package Installation Manual

CURVES

Liberty D3660 Series Grinder Package Curves

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
