Liberty D3672-Series Duplex Grinder Packages Buyers Guide & Review

Liberty Pumps Buyer Guides

April 26, 2019

Liberty D3672-Series Duplex Grinder Packages Buyers Guide & Review

The Liberty D3672 series duplex grinder packages are designed for both residential and commercial applications. The packages include two LSG/LSGX Omnivore grinder pumps, a fiberglass basin, guide rail assembly, control panel and QuickTree float system.

Features:

Factory assembled duplex grinder package with 36" x 72" fiberglass basin with anti-flotation collar
Package includes two Omnivore Grinder Pumps which feature 2 HP heavy-duty oil filled and thermally protected motor
GR20 guide rail assemblies included
New V-Slice Cutter Technology: Recessed cutter bolt eliminates wadding and exclusion cleanout slots clear debris from under the cutter
Provides superior cutting with improved shredding performance over radial cutters
V-pattern cutter provides up to 108 alternate cuts per revolution
QuickTree pre-mounted float system for pump control and alarm
NEMA 4x junction box for electrical connections included
Stainless steel chain for pump lift-out included
Includes Liberty's standard three year limited warranty

All internal brackets, floats, guide-rail base and discharge piping are pre-installed at the factory saving hours of labor at the job site.

LIBERTY D3672-SERIES GRINDER PACKAGES

Model Comparison Chart

Model	Pump	Discharge	HP	Voltage	Phase	GPM	Max. Head	Basin	Discharge Depth
D3672LSG202-36	LSG202M	2"	2	208/230	1	50	108'	36" x 72"	36"
D3672LSG202-24	LSG202M	2"	2	208/230	1	50	108'	36" x 72"	24"
D3672LSG202-48	LSG202M	2"	2	208/230	1	50	108'	36" x 72"	48"
D3672LSG202-C-48*	LSG202M	2"	2	208/230	1	50	108'	36" x 72"	48"
D3672LSG202-C-36*	LSG202M	2"	2	208/230	1	50	108'	36" x 72"	36"
D3672LSG202-C-24*	LSG202M	2"	2	208/230	1	50	108'	36" x 72"	24"
D3672LSG203-24	LSG203M	2"	2	208/230	3	50	108'	36" x 72"	24"
D3672LSG204-24	LSG204M	2"	2	440/480	3	50	108'	36" x 72"	24"
D3672LSG203-48	LSG203M	2"	2	208/230	3	50	108'	36" x 72"	48"
D3672LSG204-36	LSG204M	2"	2	440/480	3	50	108'	36" x 72"	36"
D3672LSG203-36	LSG203M	2"	2	208/230	3	50	108'	36" x 72"	36"
D3672LSG204-48	LSG204M	2"	2	440/480	3	50	108'	36" x 72"	48"
D3672LSGX202-48	LSGX202M	2"	2	208/230	1	38	185'	36" x 72"	48"
D3672LSGX202-24	LSGX202M	2"	2	208/230	1	38	185'	36" x 72"	24"
D3672LSGX202-36	LSGX202M	2"	2	208/230	1	38	185'	36" x 72"	36"
D3672LSGX202-C-48*	LSGX202M	2"	2	208/230	1	38	185'	36" x 72"	48"
D3672LSGX202-C-24*	LSGX202M	2"	2	208/230	1	38	185'	36" x 72"	24"
D3672LSGX202-C-36*	LSGX202M	2"	2	208/230	1	38	185'	36" x 72"	36"
D3672LSGX203-24	LSGX203M	2"	2	208/230	3	38	185'	36" x 72"	24"
D3672LSGX203-48	LSGX203M	2"	2	208/230	3	38	185'	36" x 72"	48"
D3672LSGX204-24	LSGX204M	2"	2	440/480	3	38	185'	36" x 72"	24"
D3672LSGX204-48	LSGX204M	2"	2	440/480	3	38	185'	36" x 72"	48"
D3672LSGX203-36	LSGX203M	2"	2	208/230	3	38	185'	36" x 72"	36"
D3672LSGX204-36	LSGX203M	2"	2	208/230	3	38	185'	36" x 72"	36"

*Please note that pumps with the "C" suffix are for external capacitor applications and require the use of control panels fitted with properly matched capacitors and start relays.

PERFORMANCE CURVES

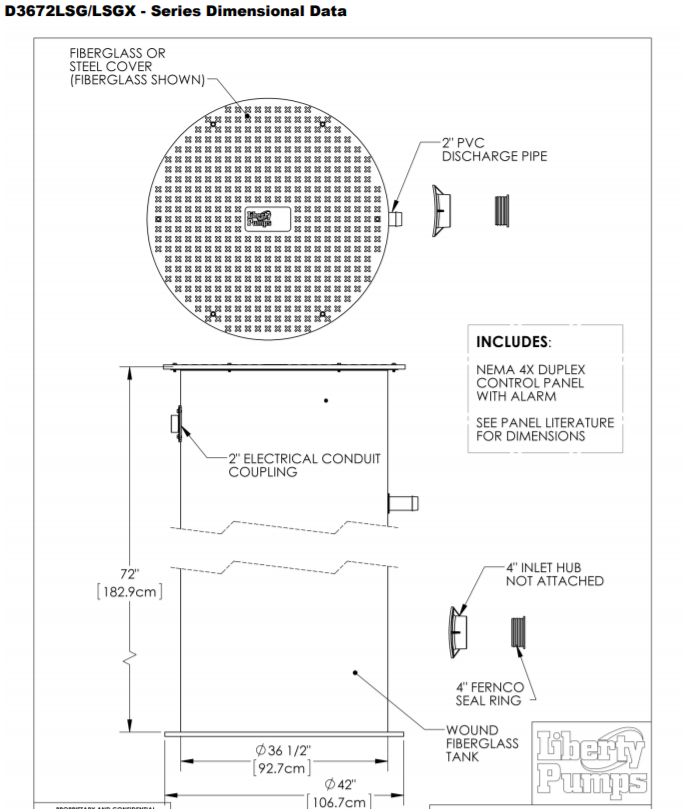

DIMENSIONAL DATA

GUIDE RAIL DIAGRAM

INSTALLATION

DIAGRAMS

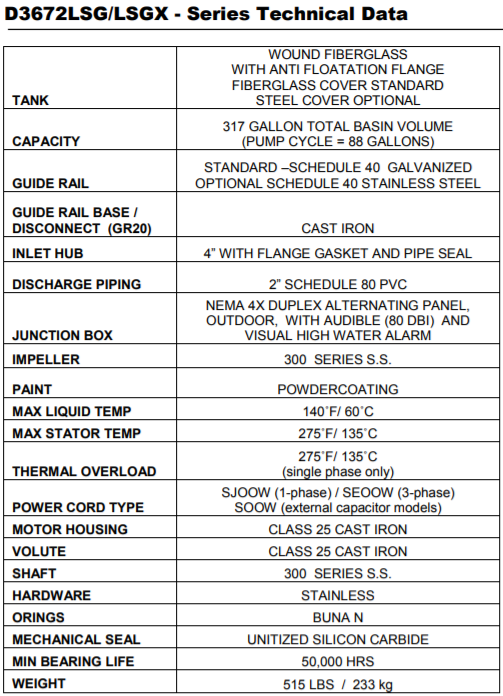

TECHNICAL DATA

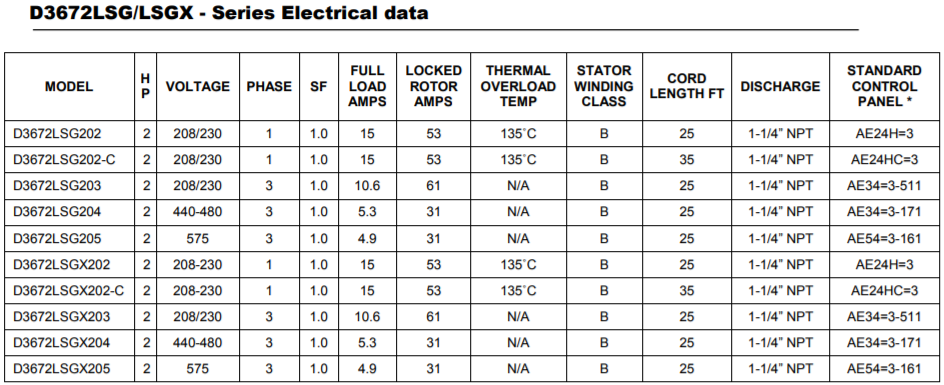

ELECTRICAL DATA

BROCHURE

Liberty D3600 Series Grinder Package Brochure

MANUAL

Liberty D3600 Series Grinder Package Installation Manual

CURVES

Liberty D3672 Series Grinder Package Curves

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
