Myers Pumps Buyer Guides

Myers MWS9 Series Sewage Pumps Buyers Guide & Review

Myers Pumps Buyer Guides

April 25, 2019

Myers MWS9 Series Sewage Pumps Buyers Guide & Review

The Myers MWS9 series of sewage pumps are ideal for sewage removal, wastewater removal, general transfer, and sump drainage applications. This series features a durable cast iron construction and a non-clog vortex impeller design with pump out vanes for seal protection. Bearing and mechanical seals are permanently lubricated for a long service life. Standard controls are available for automatic operation.

Features

Cast iron construction
Non-clog vortex style, cast iron impeller with pump out vanes for seal protection
Primary mechanical seal with a secondary self lubricating lip seal. Primary: Mechanical type 21 or equal, Buna-N elastomers, silicon carbide seal faces, stainless steel metal parts; Secondary: self-lubricating energized nitrile lip seal
Heavyduty lift-out ring, field serviceable
PSC with thermal overload with built-in thermal overload protection with automatic reset and permanent split capacitor
Cord design prevents oil loss from and moisture protection for motor
Acceptable pH range of 6-9

MYERS MWS9 SERIES SEWAGE PUMPS

Model Comparison Chart

Model	Discharge (NPT)	HP	Voltage	Phase	GPM	Max. Head
MWS9100220M	2"	1	230	1	200	35'
MWS9100220T	2"	1	230	1	200	35'
MWS9150220M	2"	1-1/2	230	1	215	43'
MWS9200220M	2"	2	230	1	232	54'
MWS9150420M	2"	1-1/2	460	3	215	43'
MWS9200420M	2"	2	460	3	232	54'

PERFORMANCE CURVE

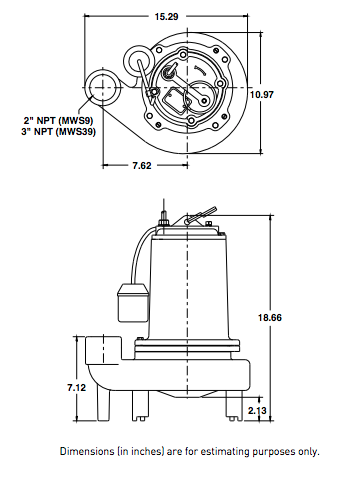

DIMENSIONS

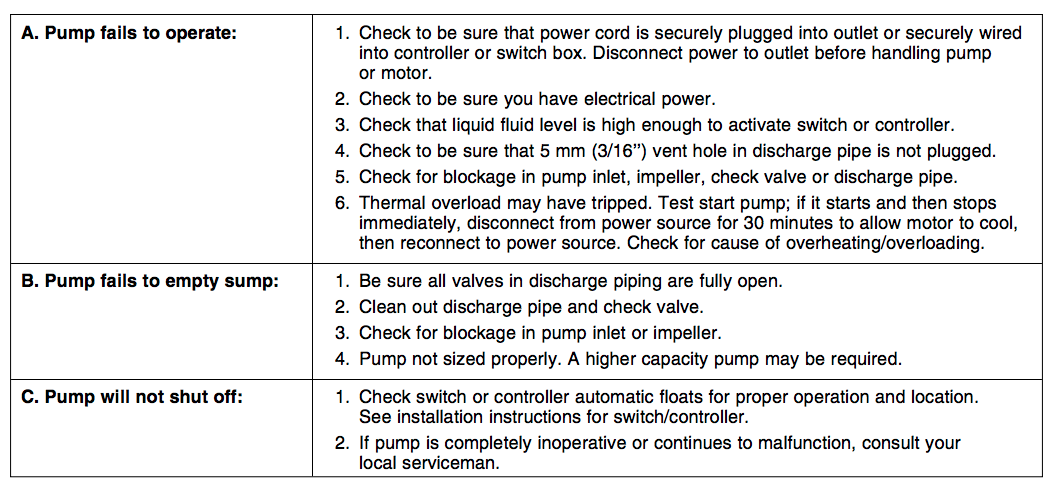

TROUBLESHOOTING

MANUAL

Myers MWS9 Series Sewage Pump Manual

SPECIFICATIONS

Myers MWS9 Series Sewage Pump Specifications

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
