Bell & Gossett Ecocirc Series Circulator Pumps Buyers Guide & Review

The Bell & Gossett Ecocirc series is designed with a highly efficient Electronically Commutated Permanent Magnet Motor (ECM/PM) technology specifically for hydronic systems. Ecocirc pumps are protected against dry run conditions. This series recognizes when there is no water in the pump housing and automatically stops the pump until the presence of water is detected.

Features

Cast iron pump body construction
Magnetically centered spherical impeller/rotor
Electronically commutated shaft-less spherical motor with permanent magnet technology
Rotor/impeller with anti-block technology that separates the main flow of the pumped media completely from the permanent magnetic parts, preventing the circulator block-up even in an old open system
Step-less speed dial with LED for pump status and troubleshooting

BELL & GOSSETT ECOCIRC SERIES CIRCULATOR PUMPS

Bell & Gossett Ecocirc Series Circulator Pumps

Model Comparison Chart

Model	Connection Size	Max Pressure (PSI)	Voltage	Phase	GPM	Max. Head
19-14 (Vario Speed)	3/4", 1", 1-1/4", 1-1/2"	150	115	1	26	20'
19-14 (Auto Speed)	3/4", 1", 1-1/4", 1-1/2"	150	115	1	26	20'

PERFORMANCE CURVES

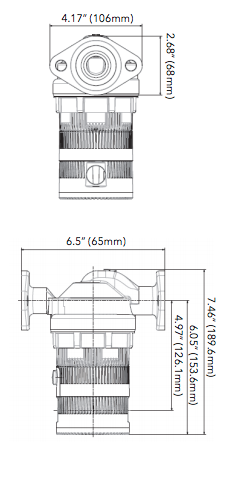

DIMENSIONS

DIAGRAM

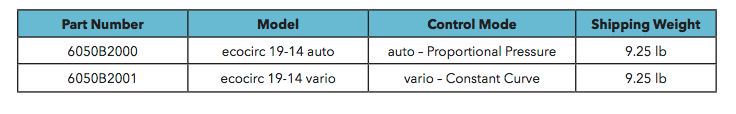

SPECIFICATIONS

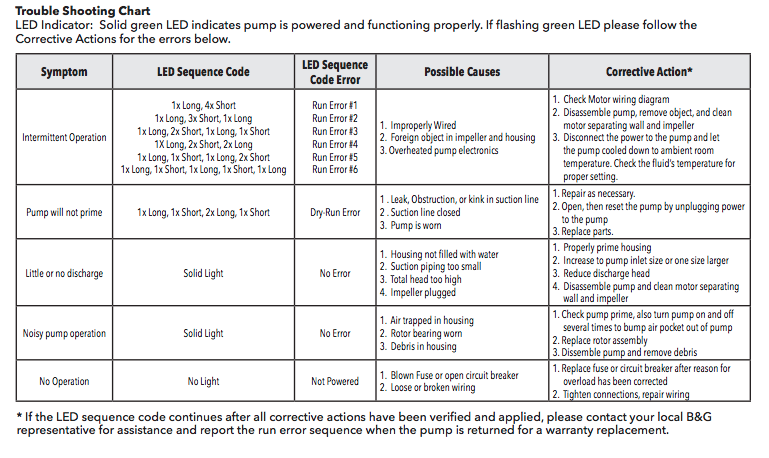

TROUBLESHOOTING

BROCHURE

Bell & Gossett Ecocirc Series Circulator Pump Brochure

INSTRUCTIONS

Bell & Gossett Ecocirc Series Circulator Pump Instructions

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
