Bell & Gossett SSF Series Circulator Pumps Buyers Guide & Review

The Bell & Gossett SSF series is designed specifically for quiet operation in open (potable) water systems. These pumps have 100% lead-free bronze bodies. The SSF series is designed for residential or light commercial potable or heating applications.

Features

Maintenance-free, stainless steel pump body.
Flanged, union or sweat models available.
High starting torque provides dependable start-ups.
Unique B&G DuraGlide Bearing System assures whisper-quiet, maintenance-free operation
Standard, universal flange-to-flange dimensions
Backed by B&G’s representatives and a 3-year warranty–the best in the business
DuraGlide Bearing System incorporates several components working together to eliminate seasonal freeze-up
Low-watt, energy-conserving models
Flanged and union system connection models are available
Automatic Timer and Aquastat accessories are available.

BELL & GOSSETT SSF SERIES CIRCULATOR PUMPS

Bell & Gossett SSF Series Circulator Pumps

Model Comparison Chart

Model	Connection Size	HP	Voltage	Phase	GPM	Max. Head
SSF-12F/LW	3/4", 1", 1-1/4", 1-1/2"	1/40	115	1	18	12'
SSF-22	3/4", 1-1/4", 1-1/2"	1/25	115	1	22	15'

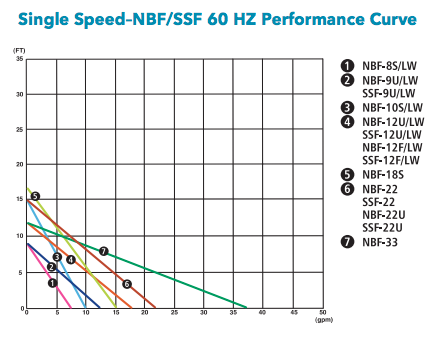

PERFORMANCE CURVES

MATERIALS OF CONSTRUCTION

SPECIFICATIONS

OPERATING DATA

BROCHURE

Bell & Gossett SSF Series Circulator Pump Brochure

INSTALLATION MANUAL

Bell & Gossett SSF Series Circulator Pump Installation Manual

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
