Bell & Gossett LS Series Condensate Pumps Buyers Guide & Review

The Bell & Gossett LS series condensate removal pump is an energy efficient lifting station that uses permanent magnet, ECM (electronically commutated motor) technology. LS condensate removal pumps are designed specifically for use in applications where the removal of condensate fluid is not possible. These pumps saves energy, have a very low noise level, and virtually guarantees trouble free operation.

Features

Condensate removal for condensing boilers and air conditioning/cooling systems
Drains condensate into a pressure hose and a control which starts and stops the pump
Indicator lights showing status of the unit
Alarm relay if there is a problem
Long, quiet operation
Small footprint
Low energy consumption
Resistant to blockage
Easy and ready to install
Fully automatic

BELL & GOSSETT LS SERIES CONDENSATE PUMP

Bell & Gossett LS Series Condensate Pump

Model Comparison Chart

Model	Max Pressure (PSI)	Tank Volume (Gallons)	Voltage	Phase	GPM	Max. Head
LS	150	0.184	100-240	1	1.98	14.9'

PERFORMANCE CURVES

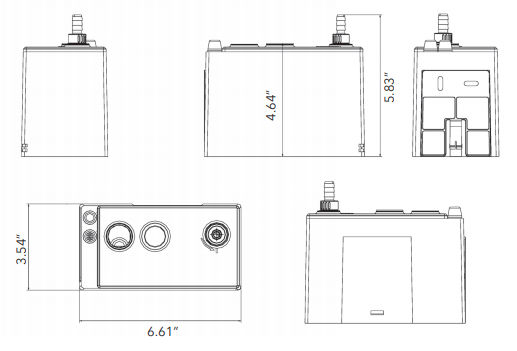

DIMENSIONS

DIAGRAM

SPECIFICATIONS

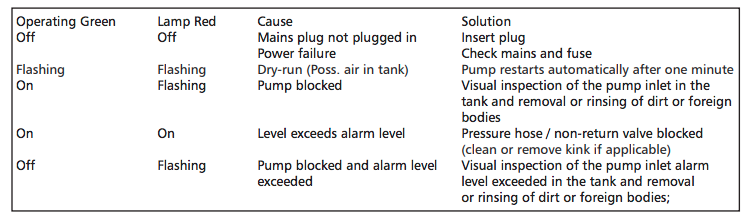

TROUBLESHOOTING

BROCHURE

Bell & Gossett LS Series Condensate Pump Brochure

INSTRUCTIONS

Bell & Gossett LS Series Condensate Pump Instructions

SUBMITTAL

Bell & Gossett LS Series Condensate Pump Submittal

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
