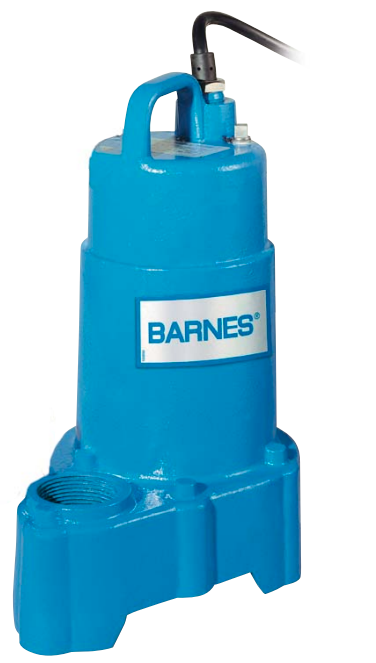

Barnes EP52 Series Effluent Pumps Buyers Guide & Review

The Barnes EP52 series of effluent pumps offers low cost, high performance benefits from a rugged, heavy duty design. This series is ideal for handling sewage effluent in typical septic tank/effluent applications. Barnes effluent pumps save time and replacement costs because they are interchangeable with competing effluent models. They require no additional plumbing when replacing most competitor’s pumps.

Features

1-1/2" NPT, female, vertical discharge
3/4" spherical solids handling
Maximum flow is 84 GPM
Maximum shut off head is 24 ft
Cast iron motor housing
Upper and lower ball bearings
Cast iron vortex impeller with pump out vanes on back side
Heavy duty industrial Type 21 carbon/ceramic seal
Stainless steel shaft and hardware provide excellent corrosion resistance
Permanent Split capacitor motor for reliable, high performance, longer motor life, greater starting torque, and lower amp draw.
Interchangeable with other effl uent pumps.
Requires no additional plumbing when replacing most competitor’s pump

BARNES EP52 SERIES EFFLUENT PUMPS

Barnes EP52 Series Effluent Pumps

Model Comparison Chart

Model	Discharge (NPT)	HP	Voltage	Float Switch Type	GPM	Max. Head
EP52X	1-1/2"	1/2	240	Manual	84	24'
EP52VFX	1-1/2"	1/2	240	Vertical	84	24'
EP52AX	1-1/2"	1/2	240	Wide Angle	84	24'

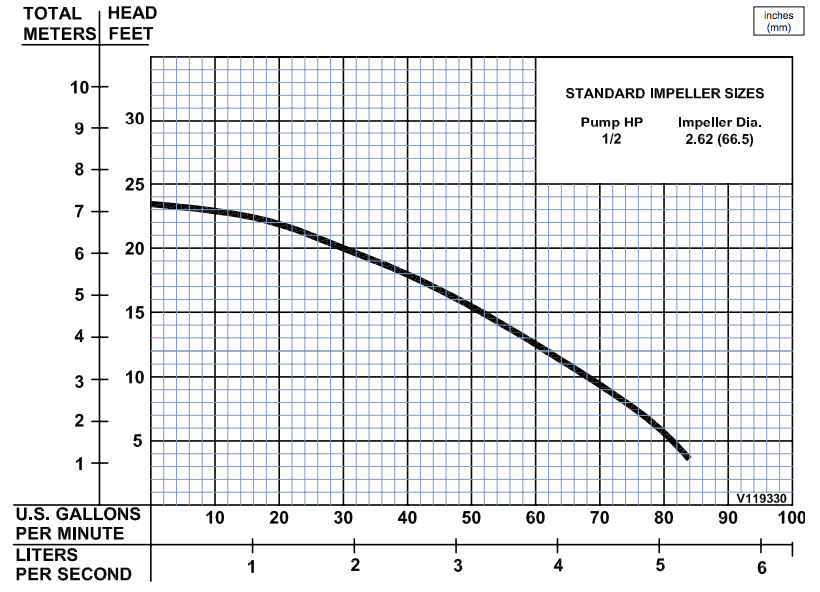

PERFORMANCE CURVES

DIMENSIONS

SPECIFICATIONS

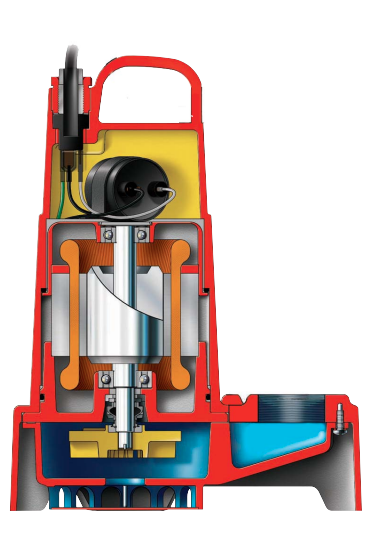

DIAGRAM

TROUBLESHOOTING

BROCHURE

Barnes EP52 Series Effluent Pump Brochure

SPECIFICATIONS

Barnes EP52 Series Effluent Pump Specifications

INSTALLATION MANUAL

Barnes EP52 Series Effluent Pump Installation Manual

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
