Barnes EP72X Series Effluent Pumps Buyers Guide & Review

Barnes Pumps Buyer Guides

June 06, 2019

Barnes EP72X Series Effluent Pumps Buyers Guide & Review

The Barnes EP72X series of effluent pumps is designed for handling graywater in typical septic tank / effluent applications. This series is capable of handling up to 3/4" spherical solids. Barnes effluent pumps save time and replacement costs because they are interchangeable with competing effluent models. They require no additional plumbing when replacing most competitor’s pumps.

Features

1-1/2" NPT, female, vertical discharge
90 GPM maximum flow
31 feet maximum head
Cast iron motor housing and impeller
Stainless steel shaft
Single row, ball, oil lubricated upper and lower bearings
Single phase motor with thermal overload protection in motor
20 feet cord length

BARNES EP72X SERIES EFFLUENT PUMPS

barnes ep72x x-series series-effluent pumps

Barnes EP72X Series Effluent Pumps

Model Comparison Chart

Model	Discharge (NPT)	HP	Voltage	Float Switch Type	GPM	Max. Head
EP72X	1-1/2"	3/4	240	Manual	90	31'
EP72VFX	1-1/2"	3/4	240	Vertical	90	31'
EP72AX	1-1/2"	3/4	240	Wide Angle	90	31'

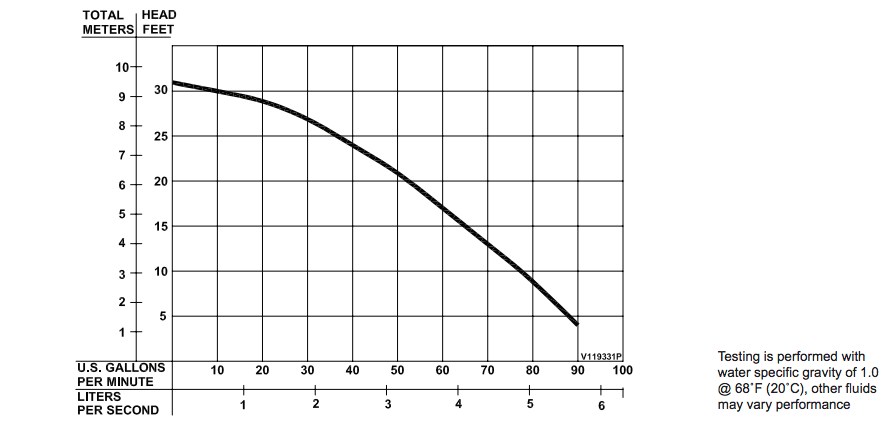

PERFORMANCE CURVES

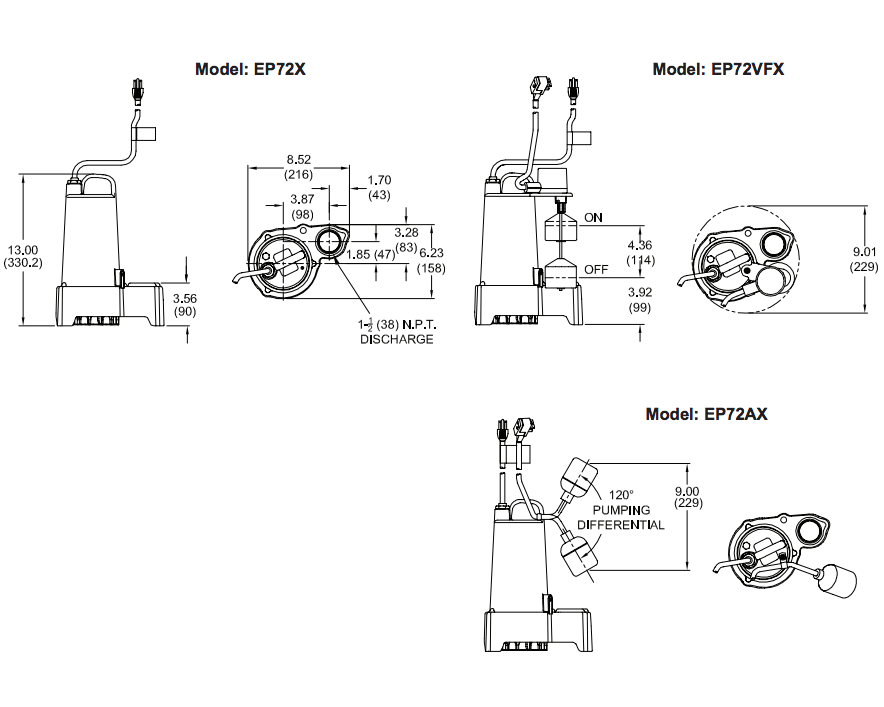

DIMENSIONS

SPECIFICATIONS

TROUBLESHOOTING

SPECIFICATIONS

Barnes EP72X Series Effluent Pump Specifications

INSTALLATION MANUAL

Barnes EP72X Series Effluent Pump Installation Manual

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
