Barnes SP75 Series Effluent Pumps Buyers Guide & Review

The Barnes SP75 series of effluent pumps offers low cost, high performance benefits from a rugged, heavy duty design. This series is ideal for handling sewage effluent in typical septic tank/effluent applications. This series is also robustly designed for long operational life and dependable service. A compact design enables pumps to fit into 5 gallon buckets or laundry tray systems.

Features

1-1/2" NPT, female, vertical
1/2" spherical solids handling
Maximum shutoff head is 33 feet
Maximum flow is 80 GPM
104°F Continuous
Top suction design
Cast iron motor housing
Upper and lower ball bearings
Cast iron vortex impeller with pump out vanes on back side
Heavy duty industrial Type 21 carbon/ceramic seal
Permanent split capacitor motor for reliable, high performance, longer motor life, greater starting torque, and lower amp draw
Stainless steel hardware and shaft
Automatic thermal overload protection
GFCI compatible for safety
CSA C/US listed
24 Month Warranty

BARNES SP75 SERIES EFFLUENT PUMPS

Barnes SP75 Series Effluent Pumps

Model Comparison Chart

Model	Discharge (NPT)	HP	Voltage	Float Switch Type	GPM	Max. Head
SP75X	1-1/2"	3/4	120	Manual	80	33'
SP75AX	1-1/2"	3/4	120	Wide Angle	80	33'
SP75VFX	1-1/2"	3/4	120	Vertical	80	33'

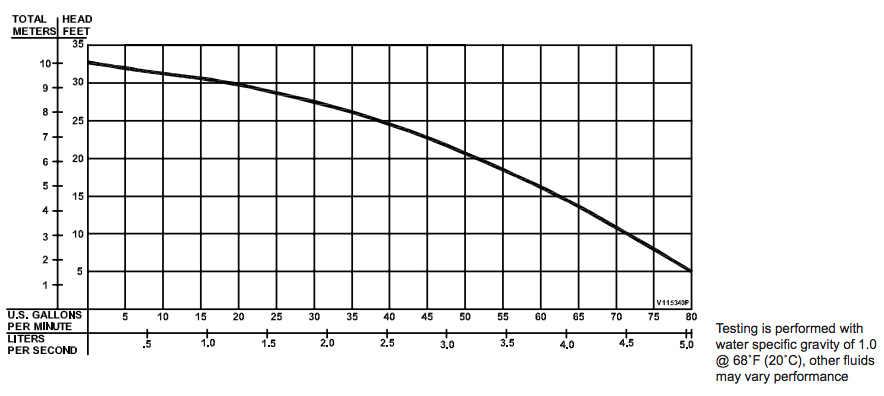

PERFORMANCE CURVES

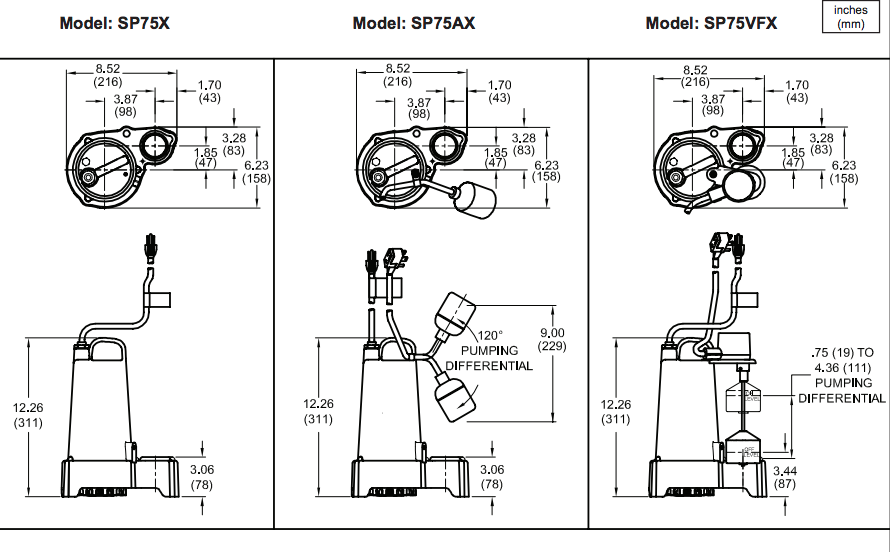

DIMENSIONS

SPECIFICATIONS

DIAGRAM

TROUBLESHOOTING

BROCHURE

Barnes SP75 Series Effluent Pump Brochure

SPECIFICATIONS

Barnes SP75 Series Effluent Pump Specifications

INSTALLATION MANUAL

Barnes SP75 Series Effluent Pump Installation Manual

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
