Barnes BT Series Transfer Pumps Buyers Guide & Review

The Barnes BT series of transfer pumps are general purpose pumps ideal for residential and dewatering applications. This series is constructed of durable materials.

Features

Permanently lubricated bearings
High speed mechanical seal
Includes fittings, strainer, spare brushes

Applications

Draining water heaters
Charging polyglycol lines for radiant heating
Pressure boosting
Draining pool covers
Dewatering flooded basements

BARNES BT SERIES TRANSFER PUMPS

Barnes BT Series Transfer Pumps

Model Comparison Chart

Model	Discharge (GHT Vertical)	HP	Voltage	Phase	GPM	Max. Head
BT12	3/4"	1/12	120	1	5	45'
BT50	3/4"	1/2	120	1	21	120'

PERFORMANCE CURVES

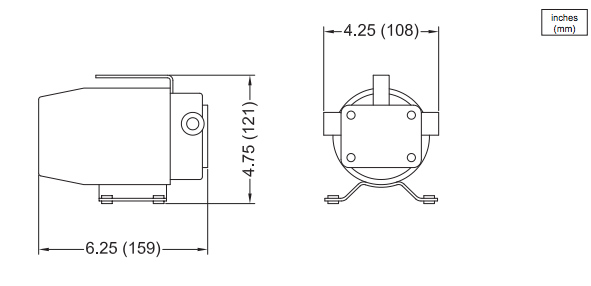

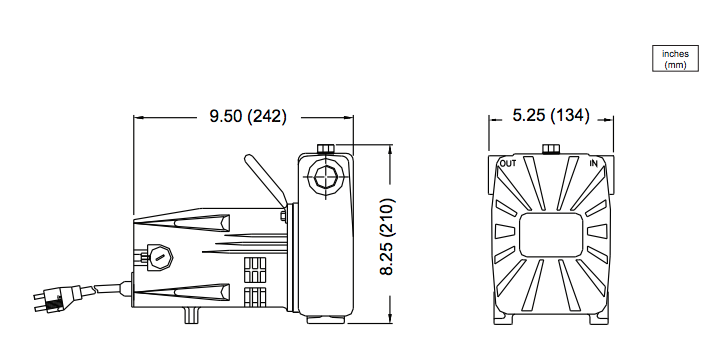

DIMENSIONS

SPECIFICATIONS

TROUBLESHOOTING

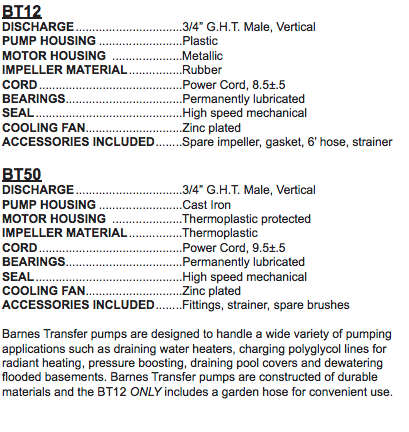

SPECIFICATIONS

Barnes BT Series Transfer Pump Specifications

INSTALLATION MANUAL

Barnes BT50 Transfer Pump Installation Manual

INSTALLATION MANUAL

Barnes BT12 Transfer Pump Installation Manual

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
