Barnes BGBSE Series Toilet Pump System Buyers Guide & Review

The Barnes BGBSE series (also known as the basement genie) toilet pump system can be installed almost anywhere. This series can accommodate a toilet, vanity, humidifier or shower. It is perfect for basements, family rooms, warehouses, factories, and room additions. These pumps fit almost anywhere and can be used with many toilet styles. The Basement Genie Basin can be installed free standing on any level surface (no need to destroy concrete floors) or the tank and all piping can be hidden behind a wall and under the floor.

Package includes

Basin
2" PVC discharge pipe, 2" NPT vent flange
2" straight discharge flange , 2" rubber gasket
Cast iron closet flange
Rubber cord grommet
3/8" foam lid gasket, 2" check valve, and hardware

Package Features

White finish
Polyethylene material
Assembly required
Allows for the installation of a bathroom where gravity flow is not available without breaking concrete

BARNES BGBSE SERIES TOILET PUMP SYSTEM

Barnes BGBSE Series Toilet Pump System

Model Comparison Chart

Model	Discharge (NPT)	HP	Voltage	Phase	GPM	Max. Head
BGBSEV412	2"	1/2	115	1	71	25'
BGBSE411	2"	4/10	115	1	120	25'

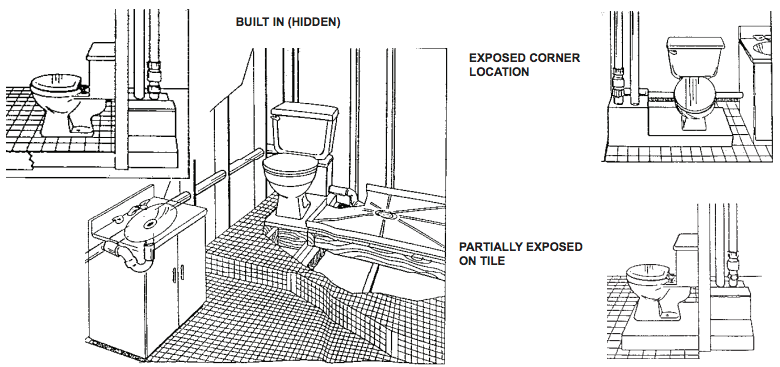

DIAGRAM

DIMENSIONS

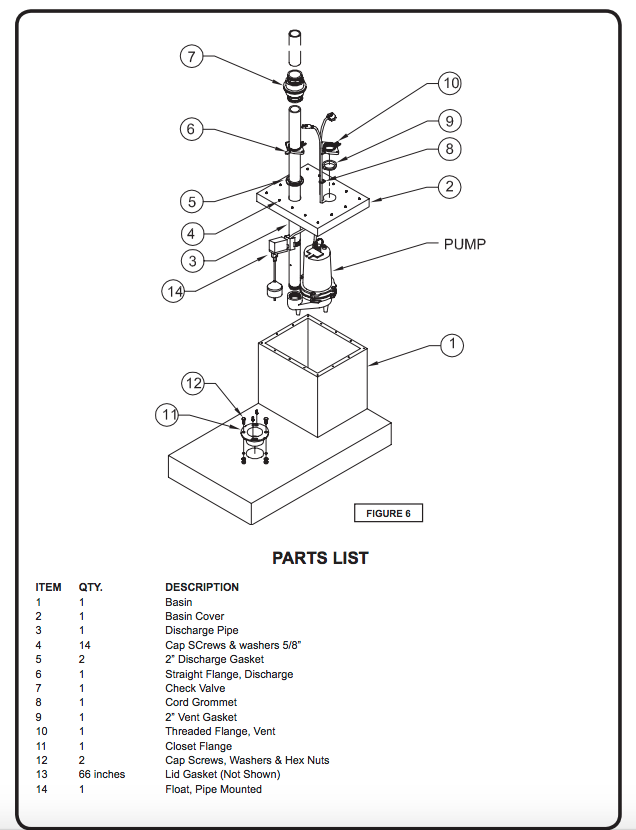

REPAIR PARTS

SPECIFICATIONS

Barnes BGBSE Series Toilet Pump System Specifications

INSTALLATION MANUAL

Barnes BGBSE Series Toilet Pump System Installation Manual
