Barnes HCU Series Centrifugal Pumps Buyers Guide & Review

Barnes Pumps Buyer Guides

June 20, 2019

Barnes HCU Series Centrifugal Pumps Buyers Guide & Review

Barnes HCU series of end-suction centrifugal pumps are heavy duty, general purpose pumps with heavy wall castings suitable for industrial and marine applications. Other applications include condenser, gear cooling, general water circulation, fire fighting, and washdown. High efficiencies as well as robust case and impeller construction make these pumps an ideal selection for applications that require an easy-to-maintain, reliable, long lasting pump.

Features:

PDA on five with ABS
Direct drive, motor operated
Extra deep stuffing box with seal cage
Renewable bronze shaft sleeve
Renewable bronze suction cover ring

Applications:

General Water Service
Chilled & Hot Water Systems
Cooling Tower
HVAC
Industrial Processes
Municipal Drinking Water
Sprinkler & Irrigation Systems

BARNES HCU SERIES CENTRIFUGAL PUMPS

Barnes HCU Series Centrifugal Pumps

Model Comparison Chart

Model	Discharge (NPT)	Suction (NPT)	Impeller Material	Liquid Temperature (Fahrenheit)	Weight (lbs.)	Shaft Sleeve Material
2020HCU	2"	2"	Bronze	180	74	Bronze
4030HCU	3"	4"	Cast Iron	180	254	Bronze

PERFORMANCE CURVES

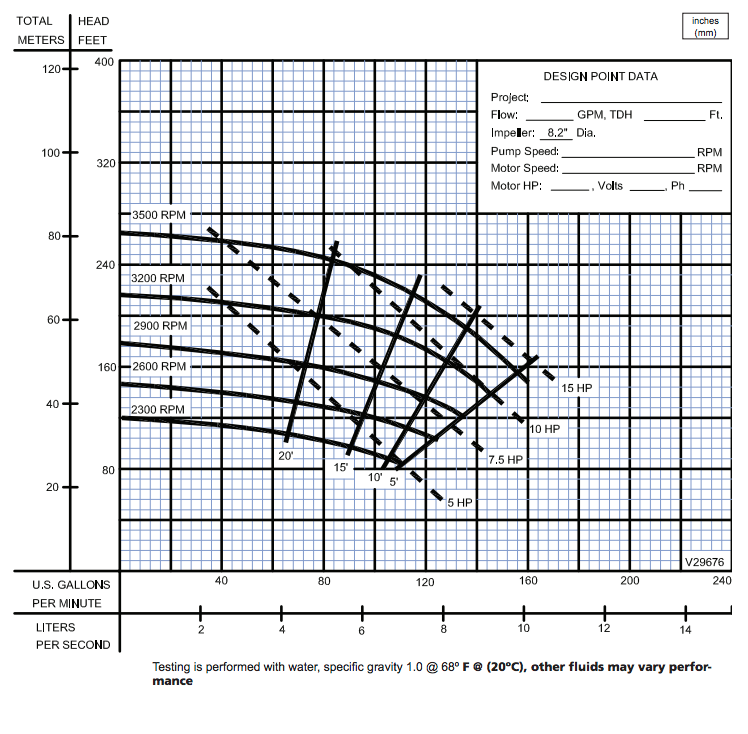

barnes hcu series centrifugal pumps curves 1

Model 2020 HCU

barnes hcu series centrifugal pumps curves 2

Model 4030HCU

DIMENSIONS

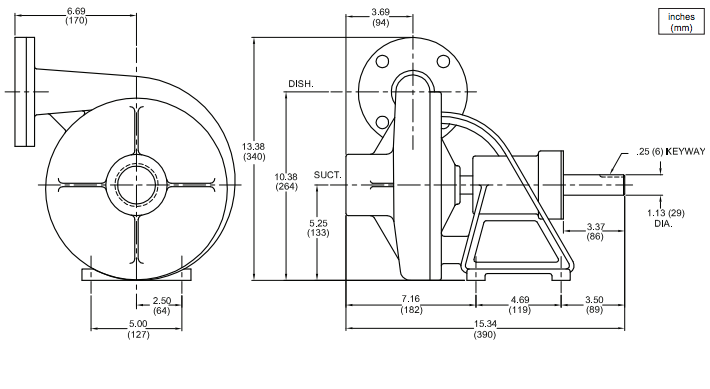

Model 2020HCU

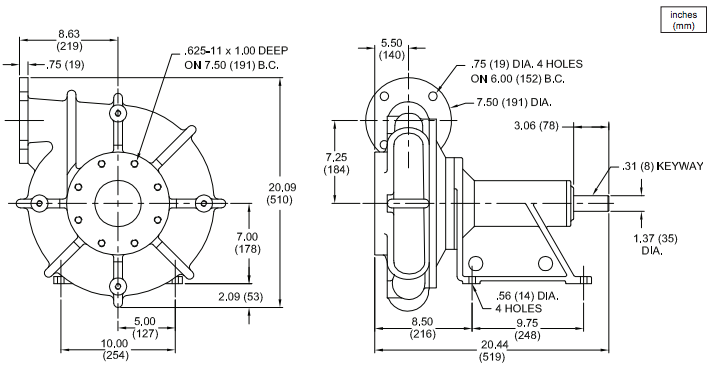

barnes hcu series centrifugal pumps dimensions 2

Model 4030HCU

SPECIFICATIONS

Model 2020HCU

Model 4030HCU

SPECIFICATIONS

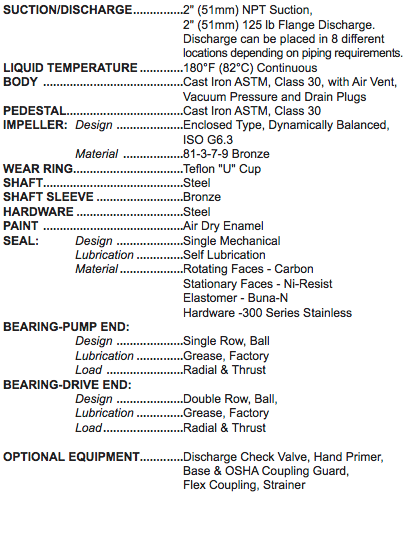

Barnes Model 2020HCU Centrifugal Pump Specifications

SPECIFICATIONS

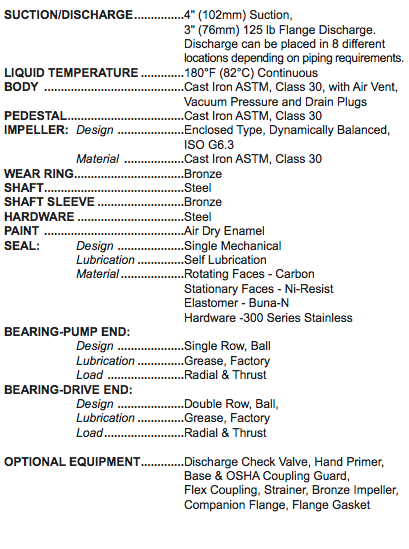

Barnes Model 4030HCU Centrifugal Pump Specifications

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
