Barnes 4SE-L Series Sewage Pumps Buyers Guide & Review

The Barnes 4SE-L series of submersible, non-clog sewage pumps are designed for typical raw sewage applications. This pump has a single seal and can handle spherical solids up to 2 inches in diameter. It has a torque curved, oil filled, squirrel cage induction motor. Barnes solids handling pumps are constructed of durable cast iron with oil-filled motors to provide a pump tough enough to meet almost any application need.

Features

3" & 4", 125 lb, flanged horizontal discharge
Volute, motor housing, and seal plate are cast iron ASTM A-48, Class 30
Impeller has a 2 vane open design with pump out vanes on back side
416 stainless steel shaft
300 series stainless steel hardware
Single mechanical seal design, made of Carbon/Ceramic/Buna-N, with an oil filled reservoir and secondary exclusion seal
Single row, oil lubricated upper and lower ball bearings

BARNES 4SE-L SERIES SEWAGE PUMPS

Barnes 4SE-L Series Sewage Pumps

Model Comparison Chart

Model	Discharge (Flanged Horizontal)	HP	Voltage	Phase	GPM	Max. Head
4SE924L	4"	0.9	240	1	164	25'
4SE914L	4"	0.9	120	1	164	25'
4SE1474L	4"	1.4	200/240	1	185	30'
4SE944L	4"	0.9	480	3	164	25'
4SE954L	4"	0.9	600	3	164	25'
4SE994L	4"	0.9	200/240	3	164	25'
4SE1454L	4"	1.4	600	3	185	30'
4SE1494L	4"	1.4	200/240	3	185	30'
4SE1444L	4"	1.4	480	3	185	30'
4SE1974L	4"	1.9	200/240	1	220	38'
4SE1944L	4"	1.9	480	3	220	38'
4SE1954L	4"	1.9	600	3	220	38'
4SE1994L	4"	1.9	200/240	3	220	38'
4SE5032L	4"	5	230	3	195	98'
4SE5042L	4"	5	460	3	195	98'
4SE1946L	4"	1.9	460	3	360	22'
4SE1996L	4"	1.9	200/230	3	360	22'
4SE1926L	4"	1.9	230	1	360	22'
4SE2896L	4"	2.8	200/230	3	375	26'
4SE2846L	4"	2.8	460	3	375	26'
4SE3794L	4"	3.7	200/230	3	430	41'
4SE3744L	4"	3.7	460	3	430	41'
4SE2826L	4"	2.8	230	1	375	26'
4SE2844L	4"	2.8	460	3	400	35'
4SE2894L	4"	2.8	200/230	3	400	35'
4SE5094L	4"	5	200/230	3	490	48'
4SE5044L	4"	5	460	3	490	48'
4SE2824L	4"	2.8	230	1	400	35'
4SE5024L	4"	5	230	1	490	48'
4SE3724L	4"	3.7	230	1	430	41'
4SE4544L	4"	4.5	460	3	650	40'
4SE4534L	4"	4.5	230	3	650	40'
4SE4564L	4"	4.5	200	3	650	40'
4SE7534L	4"	7.5	230	3	730	50'
4SE7544L	4"	7.5	460	3	730	50'
4SE4596L	4"	4.5	200/230	3	650	35'
4SE4546L	4"	4.5	460	3	650	35'
4SE4524L	4"	4.5	230	1	650	40'
4SE11344L	4"	11.3	460	3	880	70'
4SE11334L	4"	11.3	230	3	880	70'
4SE7564L	4"	7.5	200	3	730	50'
4SE7524L	4"	7.5	230	1	730	50'
4SE7596L	4"	7.5	200/230	3	900	50'
4SE7546L	4"	7.5	460	3	900	50'
4SE11364L	4"	11.3	200	3	880	70'
4SE15034L	4"	15	230	3	950	80'
4SE15044L	4"	15	460	3	950	80'
4SE11396L	4"	11.3	200/230	3	980	55'
4SE11346L	4"	11.3	460	3	980	55'

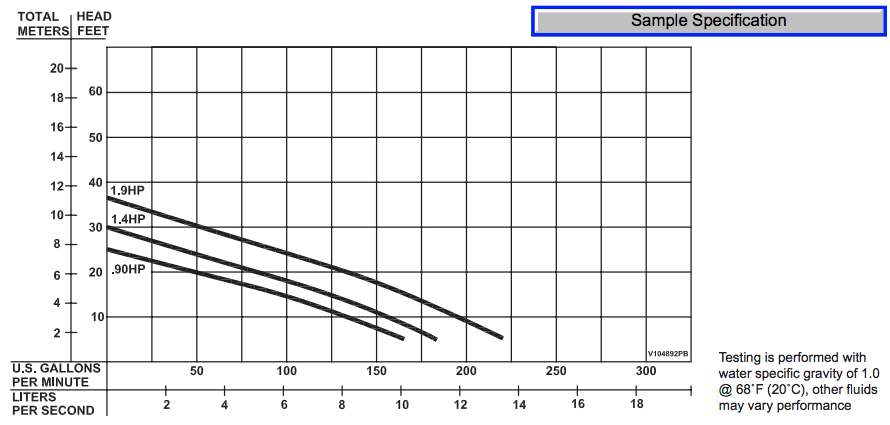

PERFORMANCE CURVES

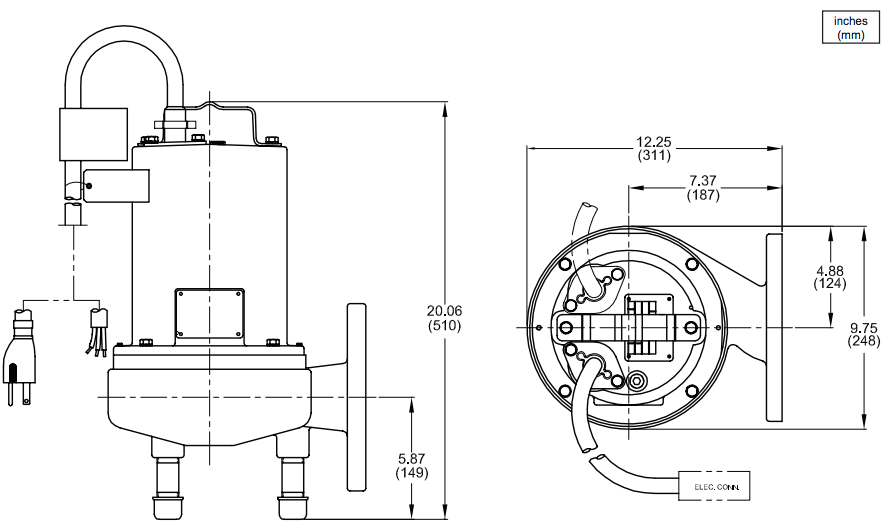

DIMENSIONS

SPECIFICATIONS

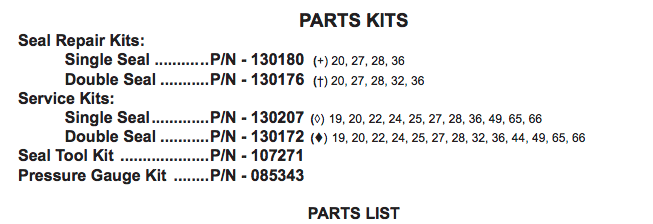

REPAIR KITS

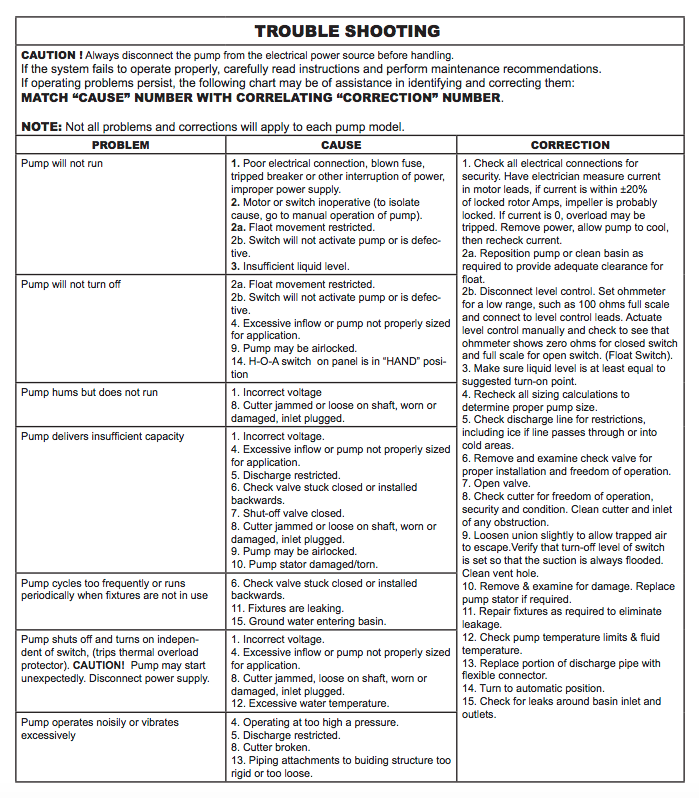

TROUBLESHOOTING

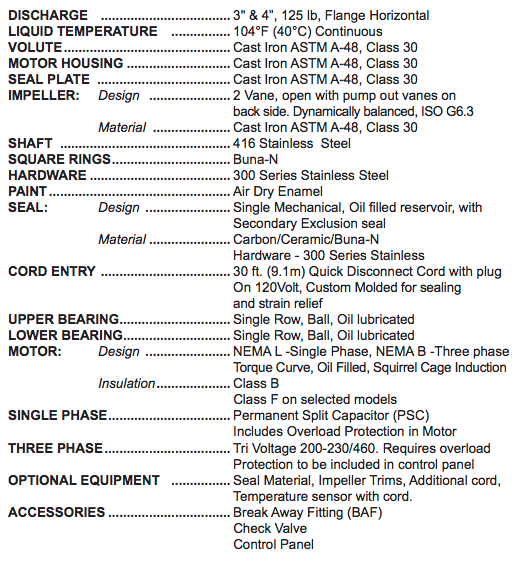

SPECIFICATIONS

Barnes 4SE-L Series Sewage Pump Specifications

INSTALLATION MANUAL

Barnes 4SE-L Series Sewage Pump Installation Manual

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
