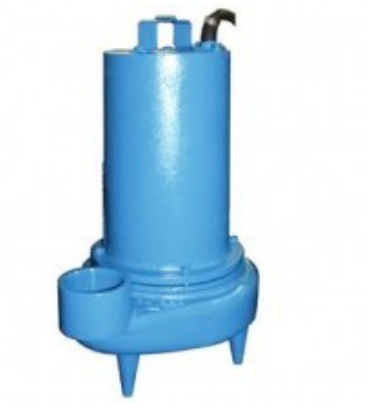

Barnes 3SE-L Series Sewage Pumps Buyers Guide & Review

The Barnes 3SE-L series of submersible, non-clog sewage pumps are designed for typical raw sewage applications. This pump has a single seal and can handle spherical solids up to 2 inches in diameter. It has a torque curved, oil filled, squirrel cage induction motor. Barnes solids handling pumps are constructed of durable cast iron with oil-filled motors to provide a pump tough enough to meet almost any application need.

Features

3" NPT female, vertical, bolt-on flanged discharge
Volute, motor housing, impeller and seal plate are cast iron
Impeller has a 2 vane open design with pump out vanes on back side
416 stainless steel shaft
Buna-N square rings
300 series stainless steel hardware
Single mechanical seal design made of Carbon/Ceramic/Buna-N
Single row, oil lubricated upper and lower ball bearings

BARNES 3SE-L SERIES SEWAGE PUMPS

Barnes 3SE-L Series Sewage Pumps

Model Comparison Chart

Model	Discharge (NPT Vertical)	HP	Voltage	Phase	GPM	Max. Head
3SE514L	3"	1/2	120	1	165	25'
3SE524L	3"	1/2	240	1	165	25'
3SE554L	3"	1/2	600	3	165	25'
3SE594L	3"	1/2	200/240	3	165	25'
3SE544L	3"	1/2	480	3	165	25'
3SE774L	3"	3/4	200/240	1	185	30'
3SE1074L	3"	1	200/240	1	220	37'
3SE744L	3"	3/4	480	3	185	30'
3SE794L	3"	3/4	200/240	3	185	30'
3SE754L	3"	3/4	600	3	185	30'
3SE1044L	3"	1	480	3	220	37'
3SE1054L	3"	1	600	3	220	37'
3SE1094L	3"	1	200/240	3	220	37'
3SE1592L	3"	1-1/2	200/230	3	152	65'
3SE1542L	3"	1-1/2	460	3	152	65'
3SE1522L	3"	1-1/2	230	1	152	65'
3SE2042L	3"	2	460	3	160	78'
3SE2092L	3"	2	200/230	3	160	78'
3SE1544L	3"	1-1/2	460	3	375	40'
3SE1594L	3"	1-1/2	200/230	3	375	40'
3SE2022L	3"	2	230	1	160	78'
3SE1524L	3"	1-1/2	230	1	375	40'
3SE2094L	3"	2	200/230	3	415	48'
3SE2044L	3"	2	460	3	415	48'
3SE2024L	3"	2	230	1	415	48'
3SE3032L	3"	3	230	3	195	96'
3SE3042L	3"	3	460	3	195	96'
3SE3034L	3"	3	230	3	320	65'
3SE3044L	3"	3	460	3	320	65'
3SE3024L	3"	3	230	1	320	65'

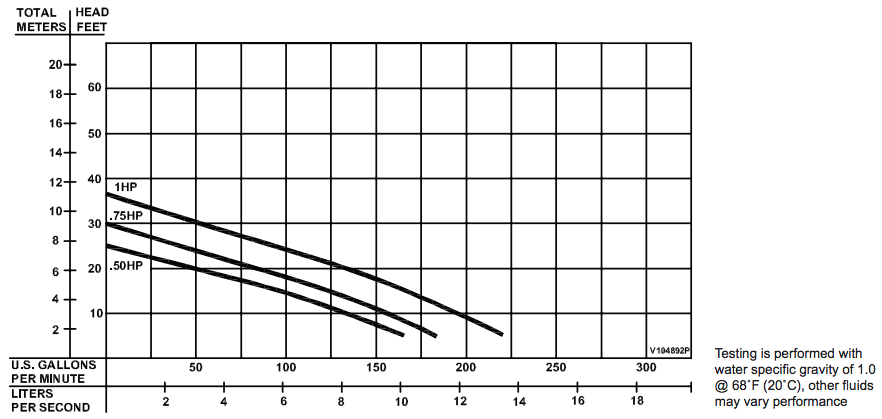

PERFORMANCE CURVES

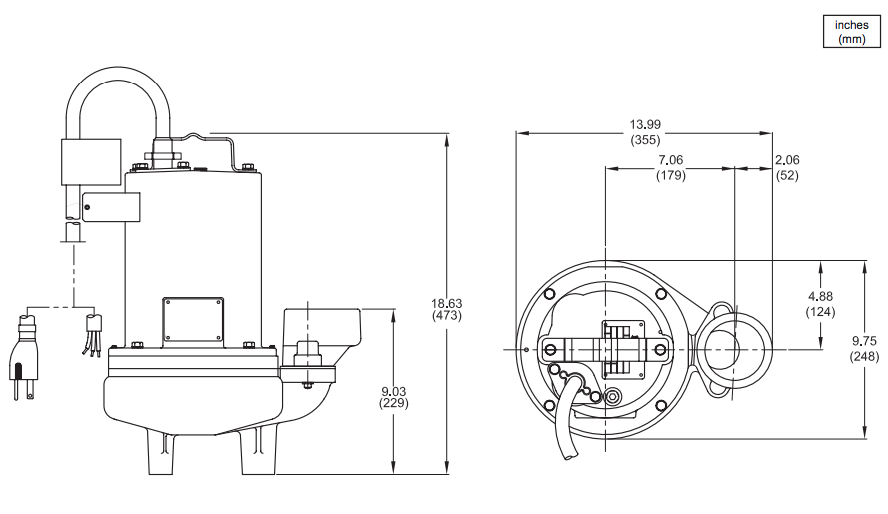

DIMENSIONS

SPECIFICATIONS

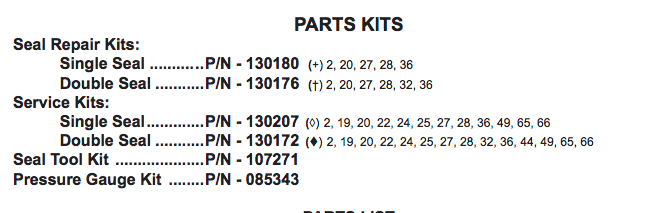

REPAIR KITS

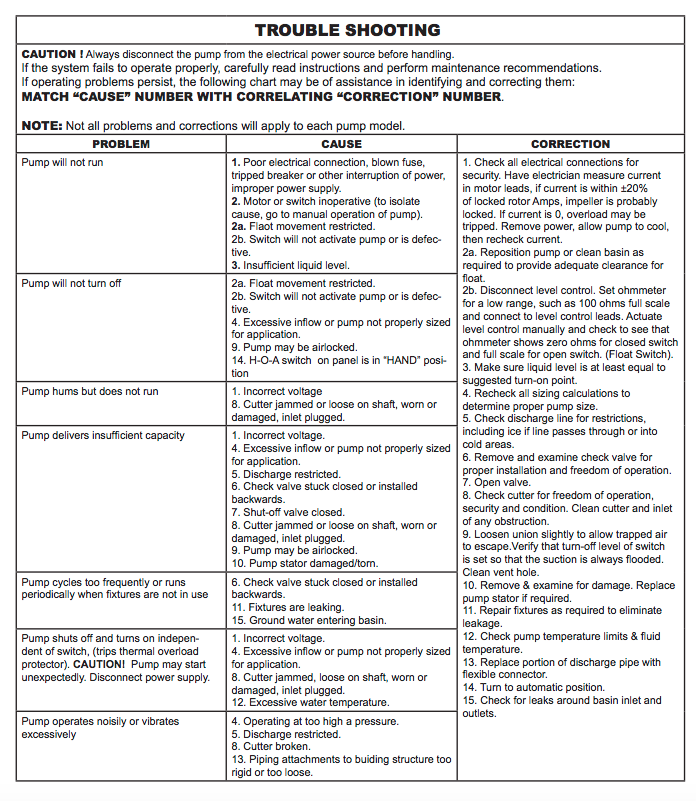

TROUBLESHOOTING

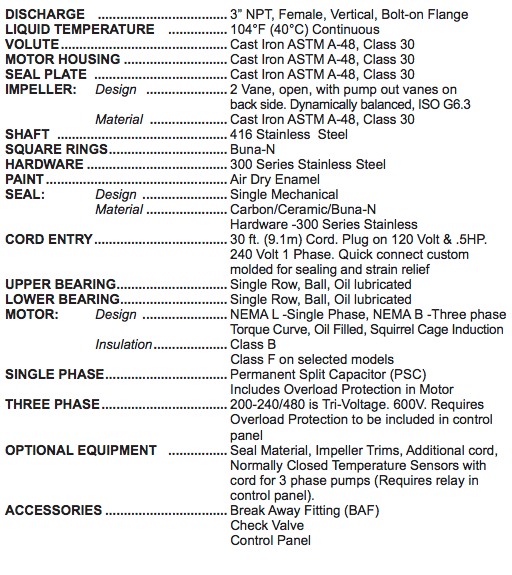

SPECIFICATIONS

Barnes 3SE-L Series Sewage Pump Specifications

INSTALLATION MANUAL

Barnes 3SE-L Series Sewage Pump Installation Manual

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
