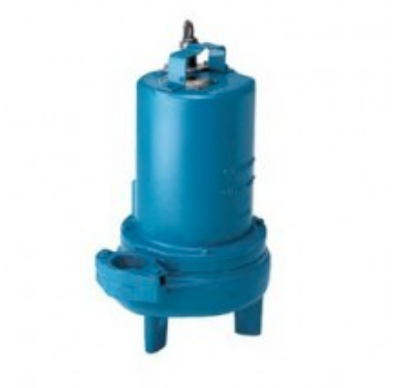

Barnes 2SE-L Series Sewage Pumps Buyers Guide & Review
The Barnes 2SE-L series of submersible, non-clog sewage pumps are designed for typical raw sewage applications. This pump has a single seal and can handle spherical solids up to 2 inches in diameter. It has a torque curved, oil filled, squirrel cage induction motor. Barnes solids handling pumps are constructed of durable cast iron with oil-filled motors to provide a pump tough enough to meet almost any application need.

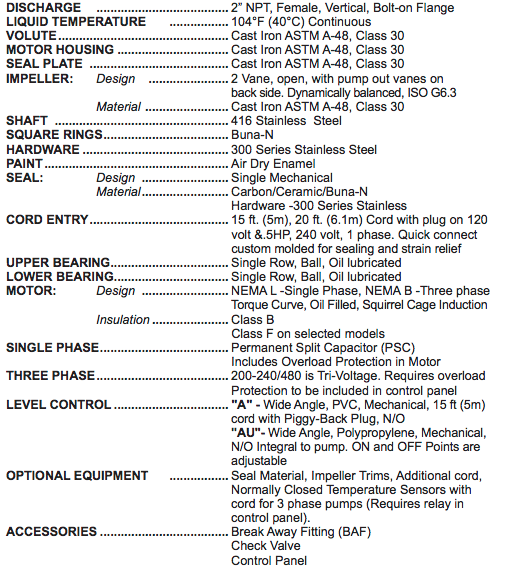

Features
- 2" NPT, female, vertical, bolt-on flanged discharge
- Volute, motor housing, impeller, and seal plate are cast iron
- Impeller has a 2 vane open design with pump out vanes on back side
- 416 stainless steel shaft
- Buna-N square rings
- 300 series stainless steel hardware
- Single mechanical seal design made of Carbon/Ceramic/Buna-N
- Single row, oil lubricated upper and lower ball bearings
| BARNES 2SE-L SERIES SEWAGE PUMPS |

Barnes 2SE-L Series Sewage Pumps
Model Comparison Chart
| Model |
Discharge (NPT Vertical Flanged) |
HP |
Voltage |
Phase |
GPM |
Max. Head |
| SE51 |
2" |
1/2 |
120 |
1 |
165 |
25' |
| SE51A |
2" |
1/2 |
120 |
1 |
165 |
25' |
| SE52 |
2" |
1/2 |
240 |
1 |
165 |
25' |
| SE51AU |
2" |
1/2 |
120 |
1 |
165 |
25' |
| SE52AU |
2" |
1/2 |
240 |
1 |
165 |
25' |
| SE594L |
2" |
1/2 |
200/240 |
3 |
165 |
25' |
| SE544L |
2" |
1/2 |
480 |
3 |
165 |
25' |
| SE554L |
2" |
1/2 |
600 |
3 |
165 |
25' |
| SE774L |
2" |
3/4 |
200/240 |
1 |
185 |
30' |
| SE1074L |
2" |
1 |
200/240 |
1 |
220 |
36' |
| SE744L |
2" |
3/4 |
480 |
3 |
185 |
30' |
| SE754L |
2" |
3/4 |
600 |
3 |
185 |
30' |
| SE794L |
2" |
3/4 |
200/240 |
3 |
185 |
30' |
| SE1054L |
2" |
1 |
600 |
3 |
220 |
36' |
| SE1094L |
2" |
1 |
200/240 |
3 |
220 |
36' |
| SE1044L |
2" |
1 |
480 |
3 |
220 |
36' |





Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
