Barnes SEV Series Sewage Pumps Buyers Guide & Review

The Barnes SEV series of submersible, non-clog sewage pumps are designed for typical raw sewage applications. This series has a single seal and can handle spherical solids up to 2 inches in diameter. The SEV series also has torque curved, oil filled, squirrel cage induction motors. Barnes solids handling pumps are constructed of durable cast iron with oil-filled motors to provide a pump tough enough to meet almost any application need.

Features

2" NPT, female, vertical discharge
Volute, motor housing, impeller, and seal plate are cast iron
Impeller has a multi-vane vortex design with pump out vanes on back side
416 stainless steel shaft
Buna-N square rings
300 series stainless steel hardware
Single mechanical seal design made of Carbon/Ceramic/Buna-N
Single row, oil lubricated upper and lower ball bearings

BARNES SEV SERIES SEWAGE PUMPS

Barnes SEV Series Sewage Pumps

Model Comparison Chart

Model	Discharge (NPT Vertical)	HP	Voltage	Phase	GPM	Max. Head
SEV412	2"	1/2	115	1	71	25'
SEV412A	2"	1/2	115	1	71	25'
SEV412AT	2"	1/2	115	1	71	25'
SEV412VF	2"	1/2	115	1	71	25'
SEV412VFT	2"	1/2	115	1	71	25'

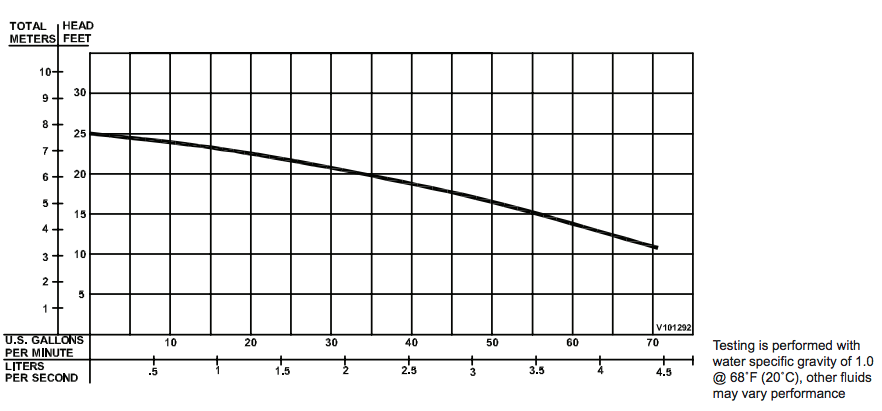

PERFORMANCE CURVES

DIMENSIONS

SPECIFICATIONS

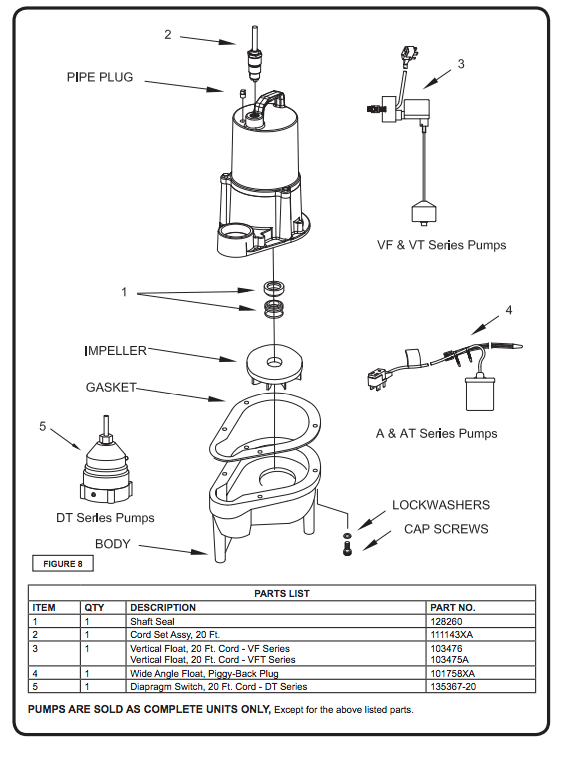

REPAIR PARTS

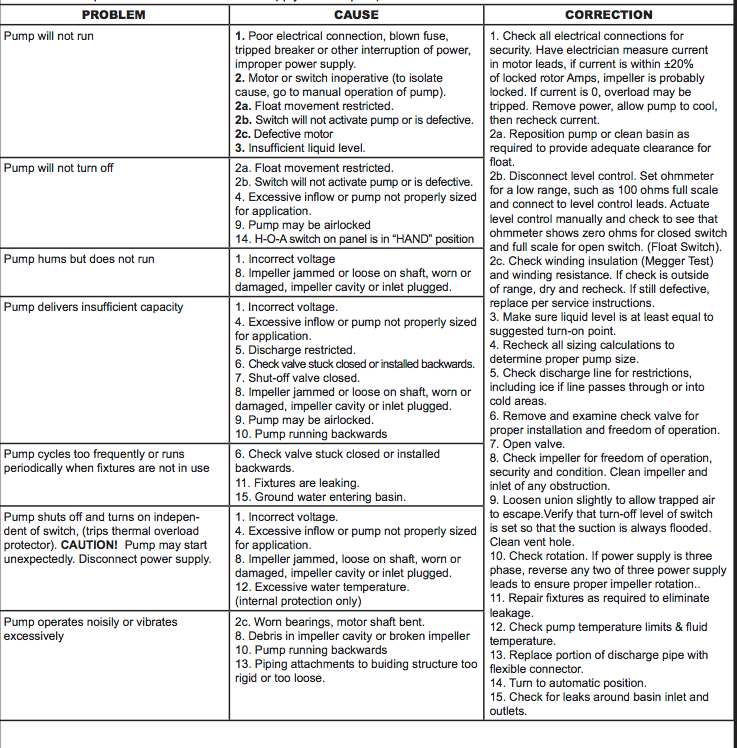

TROUBLESHOOTING

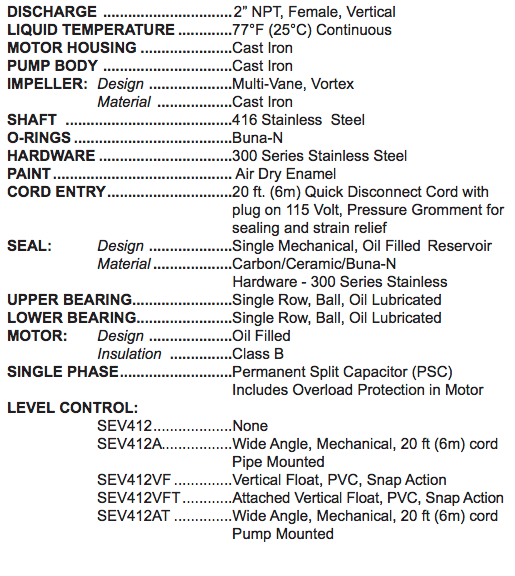

SPECIFICATIONS

Barnes SEV Series Sewage Pump Specifications

INSTALLATION MANUAL

Barnes SEV Series Sewage Pump Installation Manual

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
