Armstrong S Series Circulator Pumps Buyers Guide & Review

Product Buying Guides

July 26, 2019

Armstrong S Series Circulator Pumps Buyers Guide & Review

The Armstrong S series of in-line circulator pumps is suitable for domestic hot water systems. This series is built using a standard three-piece design that features a radially-split body, oversized shaft, centrifugal impeller, positive mechanical seal, and modular construction. The S series has been used by HVAC professionals for decades because it is cost-effective, durable, and easy to maintain.

Features

Maintenance free design which has permanently lubricated ball bearings and requires no maintenance at all
Radially-split body can be left in-line while servicing pump, eliminating disconnecting of pipes
Oversized shaft made from stainless steel
Balanced centrifugal impeller ensures maximum water delivery in the HVAC system
Proven seal design made from strong and long-lasting materials for extended operating life
Three piece modular construction and back pull-out design for easy replacement of wear components
Certified ≤ 0.25 weighted average percent lead and complies with California Health and Safety Code Section 116875 (commonly known as ab1953)

ARMSTRONG S SERIES CIRCULATOR PUMPS

Armstrong S Series Circulator Pumps

Model Comparison Chart

Model	Flanges (NPT)	HP	Voltage	Material of Construction	GPM	Max. Head
S-25	Sold separately	1/12	115	Bronze	31	6'
S-35	2"	1/6	115	Cast Iron	72	11'
S-45	Sold separately	1/4	115	Bronze	109	16'
S-46	3"	1/3	115	Cast Iron	112	19'
S-55-3	3"	1/2	208-230/460	Cast Iron	121	24'
S-35	2"	1/6	115	Bronze	72	11'
S-46	3"	1/3	115	Cast Iron	112	19'
S-55-1	3"	1/2	115/230	Cast Iron	121	24'
S-55-3	3"	1/2	208-230/460	Cast Iron	121	24'
S-57-3	3"	3/4	208-230/460	Cast Iron	139	29'
S-57-3	3"	3/4	208-230/460	Cast Iron	139	29'
S-57-1	3"	3/4	115/230	Cast Iron	139	29'
S-45	Sold separately	1/4	115	Bronze	109	16'
S-55-3	3"	1/2	208-230/460	Bronze	121	24'
S-55-1	3"	1/2	115/230	Bronze	121	24'
S-69-1	3"	1	115/230	Cast Iron	160	34'
S-69-3	3"	1	208-230/460	Cast Iron	160	34'
S-57-3	3"	3/4	208-230/460	Bronze	139	29'
S-57-3	3"	3/4	208-230/460	Bronze	139	29'
S-57-1	3"	3/4	115/230	Bronze	139	29'
S-55-1	3"	1/2	115/230	Bronze	121	24'
S-55-3	3"	1/2	208-230/460	Bronze	121	24'
S-46	3"	1/3	115	Bronze	112	19'
S-57-1	3"	3/4	115/230	Bronze	139	29'
S-69-3	3"	Bronze	1	208-230/460	160	34'
S-69-1	3"	1	115/230	Bronze	160	34'

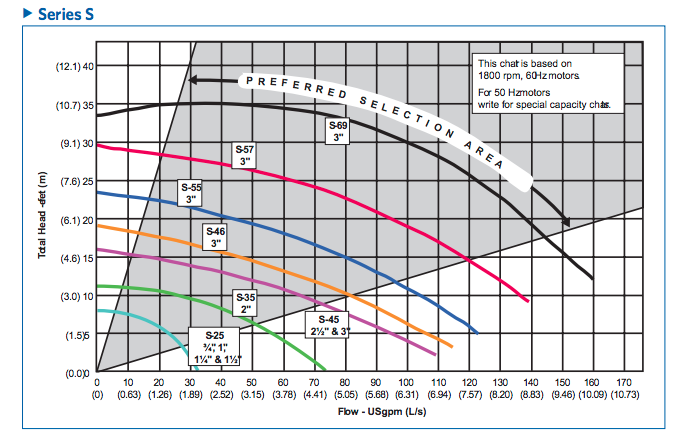

PERFORMANCE CURVES

DIMENSIONS

DESIGN INFORMATION

MATERIALS OF CONSTRUCTION

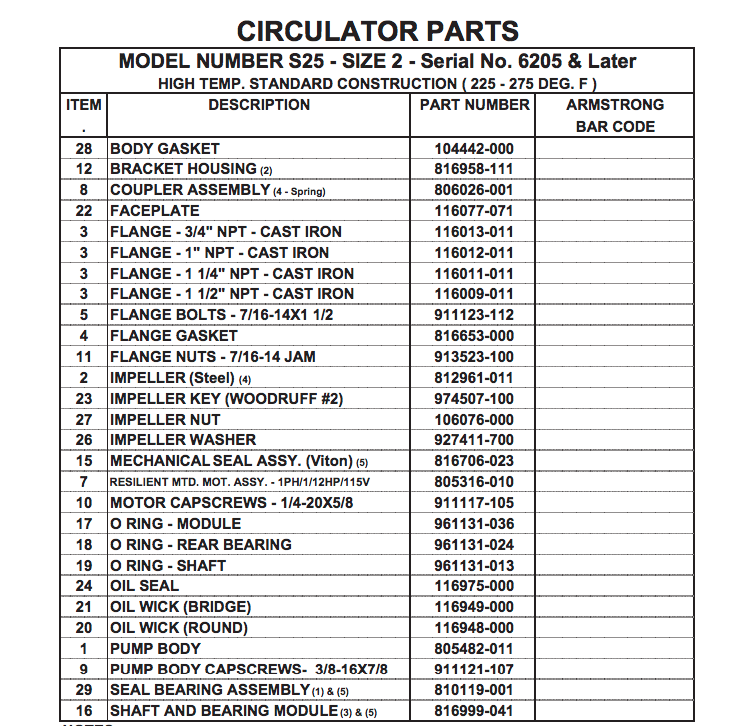

REPAIR PARTS

*For a complete part listing, please refer to the repair parts manual*

BROCHURE

Armstrong S Series Circulator Pump Brochure

INSTALLATION MANUAL

Armstrong S Series Circulator Pump Installation Manual

REPAIR PARTS

Armstrong S Series Circulator Pump Repair Parts

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
