Armstrong H Series Circulator Pumps Buyers Guide & Review

The Armstrong H series of in-line circulator pumps is suitable for domestic hot water systems. This series is built using a standard three-piece design that features a radially-split body, oversized shaft, centrifugal impeller, positive mechanical seal, and modular construction. The H series has been used by HVAC professionals for decades because it is cost-effective, durable, and easy to maintain.

Features

Standard three-piece design with sleeve - oil lubricated bearing
Radially-split body can be left in-line while servicing pump, eliminating disconnecting of pipes
Oversized shaft made from special alloy steel
Balanced centrifugal impeller ensures maximum water delivery in the HVAC system
Proven seal design made from strong and long-lasting materials for extended operating life
Three piece modular construction and back pull-out design for easy replacement of wear components

ARMSTRONG H SERIES CIRCULATOR PUMPS

Armstrong H Series Circulator Pumps

Model Comparison Chart

Model	Flange Size (NPT)	HP	Voltage	Phase	GPM	Max. Head
H-32	Flanges Sold Separately	1/6	115	1	36	12'
H-32	Flanges Sold Separately	1/6	115	1	36	12'
H-41	1"	1/6	115	1	21	17'
H-51	1"	1/4	208-230/460	3	42	24'
H-52	1-1/4"	1/3	208-230/460	3	52	26'
H-51	1"	1/4	115	1	42	24'
H-52	1-1/4"	1/3	115	1	52	26'
H-32	Flanges Sold Separately	1/6	115	1	36	12'
H-53	1-1/2"	1/2	208-230/460	3	80	28'
H-41	1"	1/6	115	1	21	17'
H-53	1-1/2"	1/2	115	1	80	28'
H-54	2"	3/4	208-230/460	3	95	28'
H-54	2"	3/4	208-230/460	1	95	28'
H-41	1"	1/6	115	1	21	17'
H-63	1-1/2"	1/2	208-230/460	3	34	33'
H-63	1-1/2"	1/2	115	1	34	33'
H-64	1-1/2"	3/4	208-230/460	3	55	45'
H-64	1-1/2"	3/4	115	1	55	45'
H-66	2"	3/4	208-230/460	3	102	30'
H-65	1-1/2"	1	208-230/460	3	55	57'
H-52	1-1/4"	1/3	208-230/460	3	52	26'
H-53	1-1/2"	1/2	208-230/460	3	80	28'
H-51	1"	1/4	115	1	42	24'
H-51	1"	1/4	208-230/460	3	42	24'
H-67	2"	1	208-230/460	3	132	36'
H-65	1-1/2"	1	115	1	55	57'
H-52	1-1/4"	1/3	115	1	52	26'
H-66	2"	3/4	115	1	102	30'
H-68	2"	1-1/2	208-230/460	3	142	46'
H-67	2"	1	115	1	132	36'
H-53	1-1/2"	1/2	115	1	80	28'
H-54	2"	3/4	208-230/460	3	95	28'
H-54	2"	3/4	115	1	95	28'
H-63	1-1/2"	1/2	208-230/460	3	34	33'
H-63	1-1/2"	1/2	115	1	34	33'
H-64	1-1/2"	3/4	208-230/460	3	55	45'
H-64	1-1/2"	3/4	115	1	55	45'
H-65	1-1/2"	1	208-230/460	3	55	57'
H-66	2"	3/4	115	1	102	30'
H-65	1-1/2"	1	115	1	55	57'
H-66	2"	3/4	208-230/460	3	102	30'
H-67	2"	1	208-230/460	3	132	36'
H-68	2"	1-1/2	208-230/460	3	142	46'
H-67	2"	1	115	1	132	36'

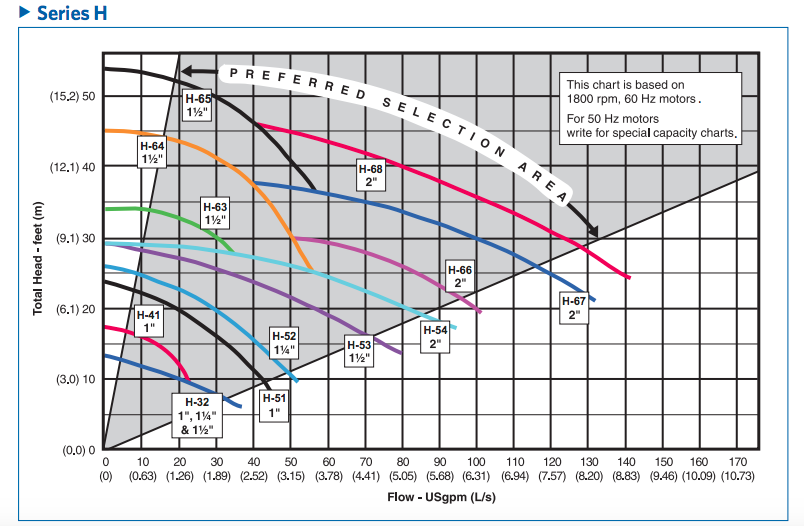

PERFORMANCE CURVES

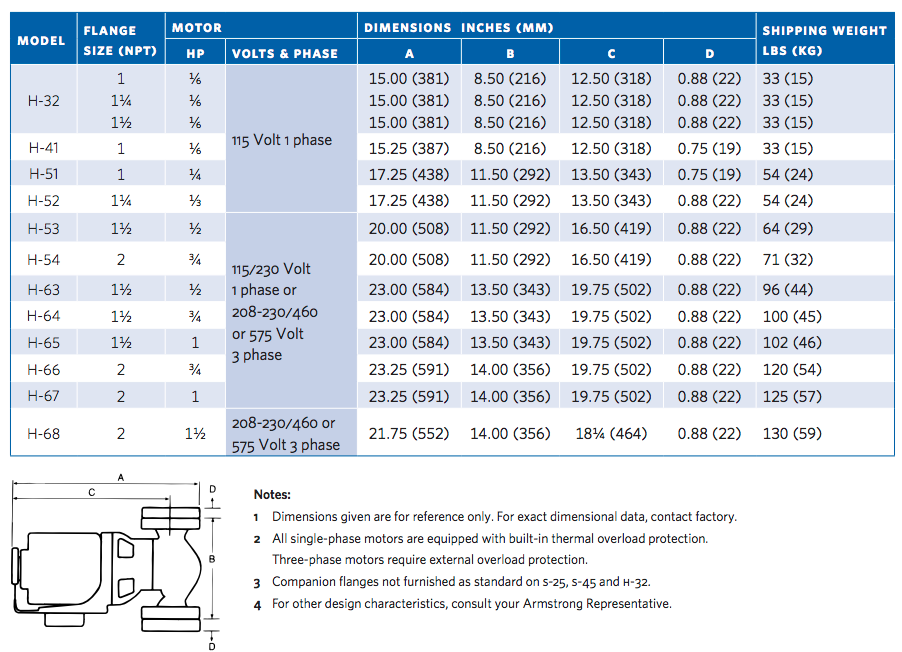

DIMENSIONS

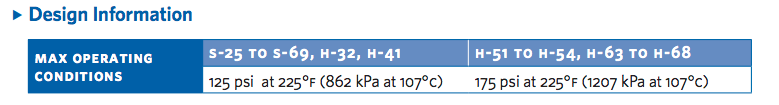

DESIGN INFORMATION

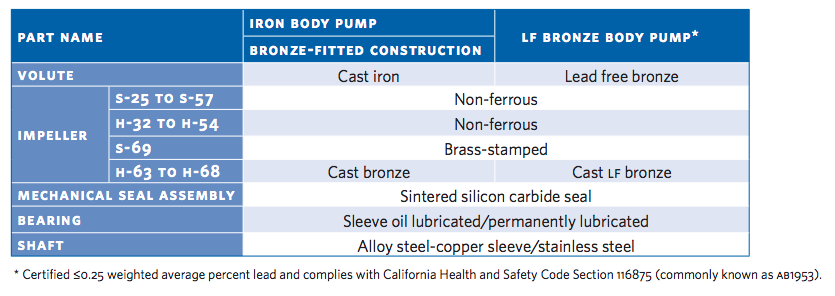

MATERIALS OF CONSTRUCTION

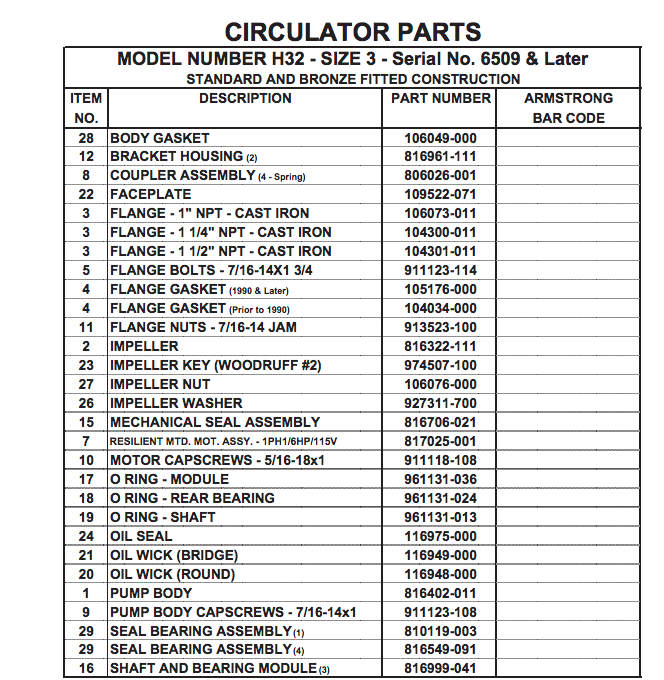

REPAIR PARTS

armstrong h series circulator pumps replacement parts

*For a full listing of repair parts, please refer to the repair parts manual*

BROCHURE

Armstrong H Series Circulator Pump Brochure

INSTALLATION MANUAL

Armstrong H Series Circulator Pump Installation Manual

REPAIR PARTS

Armstrong H Series Circulator Pump Repair Parts

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
