Armstrong Astro 2 Series Re-Circulation Pumps Buyers Guide & Review

The Armstrong Astro 2 series of re-circulation pumps is designed for dedicated return in three-pipe plumbing installations. It automatically circulates water through domestic water pipes. This ensures that hot water is available instantly at every tap throughout a residence. With this recirculation pump, far less water is wasted each time a hot water faucet is opened. It saves an average of 12,000 gallons of water annually for a typical four-person household. This model comes assembled, wired, tested, and ready for installation. No electrician required for installation!

Features

System components are compact, rugged, quiet, and reliable
Ceramic pump shaft and bearings
For indoor use only
Meets building code requirements (where applicable)
Maximum working pressure: 150 psi
Maximum water temperature: 230°F
6 ft power cord, molded duplex plug with ground
Complies with section 116875 at the California Health and Safety /Code and Vermont Act 193 (Lead content of wetted surface is 0.25% or less)

ARMSTRONG ASTRO 2 SERIES RE-CIRCULATION PUMPS

Armstrong Astro 2 Series Re-Circulation Pumps

Model Comparison Chart

Model	Connection	HP	Voltage	Material of Construction	GPM	Max. Head
ASTRO 225BS050S-LC	1/2" Sweat	1/25	115	Bronze	9	12'
ASTRO 225BS075S-LC	3/4" Sweat	1/25	115	Bronze	9	12'
ASTRO 220SSU-LC	1-1/4" NPSM Union	1/25	115	Stainless Steel	9	5.5'
ASTRO 220SSU050S-LC	1/2" Sweat	1/25	115	Stainless Steel	9	5.5'
ASTRO 220SSU075S-LC	3/4" Sweat	1/25	115	Stainless Steel	9	5.5'
ASTRO 225SSU-LC	1-1/4" NPSM Union	1/25	115	Stainless Steel	14	13'
ASTRO 230SS-LC	2 Bolt Flange	1/25	115	Stainless Steel	18	18'
ASTRO 250SS-LC	2 Bolt Flange	1/25	115	Stainless Steel	18	24'
ASTRO 225BS050S-T	1/2" Sweat	1/25	115	Bronze	9	10.5'
ASTRO 225BS075S-T	3/4" Sweat	1/25	115	Bronze	9	12'
ASTRO 220SSU-T	1-1/4" NPSM Union	1/25	115	Stainless Steel	9	5.5'
ASTRO 220SSU050S-T	1/2" Sweat	1/25	115	Stainless Steel	9	5.5'
ASTRO 220SSU075S-T	3/4" Sweat	1/25	115	Stainless Steel	9	5.5'
ASTRO 225BS075S-TA	3/4" Sweat	1/25	115	Bronze	9	12'
ASTRO 225SSU-T	1-1/4" NPSM Union	1/25	115	Stainless Steel	14	13'
ASTRO 220SSU-TA	1-1/4" NPSM Union	1/25	115	Stainless Steel	9	5.5'
ASTRO 220SSU050S-TA	1/2" Sweat	1/25	115	Stainless Steel	9	5.5'
ASTRO 230SS-T	2 Bolt Flange	1/25	115	Stainless Steel	18	18'
ASTRO 220SSU075S-TA	3/4" Sweat	1/25	115	Stainless Steel	9	5.5'
ASTRO 225SSU-TA	1-1/4" NPSM Union	1/25	115	Stainless Steel	14	13'
ASTRO 225BS050S-TA	1/2" Sweat	1/25	115	Bronze	9	12'
ASTRO 230SS-TA	2 Bolt Flange	1/25	115	Stainless Steel	18	18'
ASTRO 250SS-T	2 Bolt Flange	1/25	115	Stainless Steel	18	24'
ASTRO 250SS-TA	2 Bolt Flange	1/25	115	Stainless Steel	18	24'
ASTRO Express 2	1-1/4" NPSM Union	1/25	115	Stainless Steel	9	6'

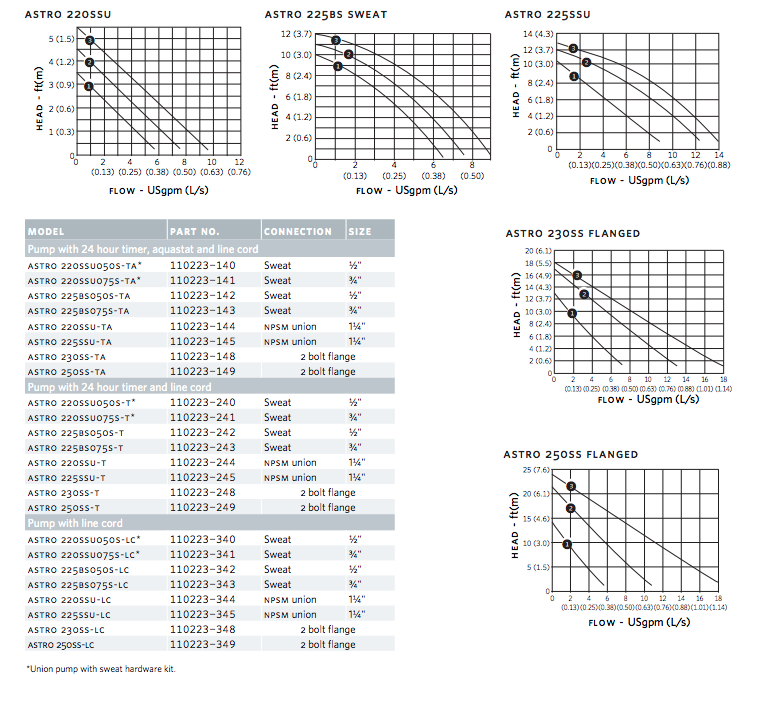

PERFORMANCE CURVES

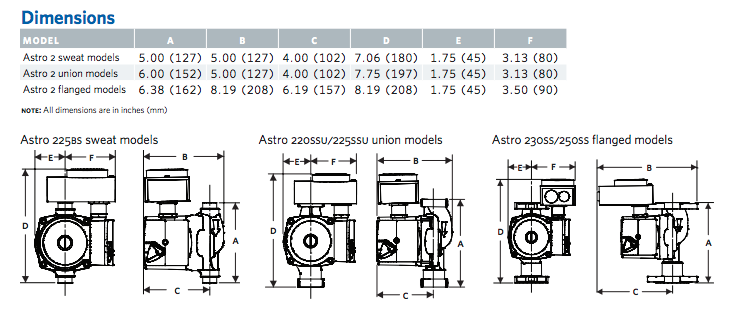

DIMENSIONS

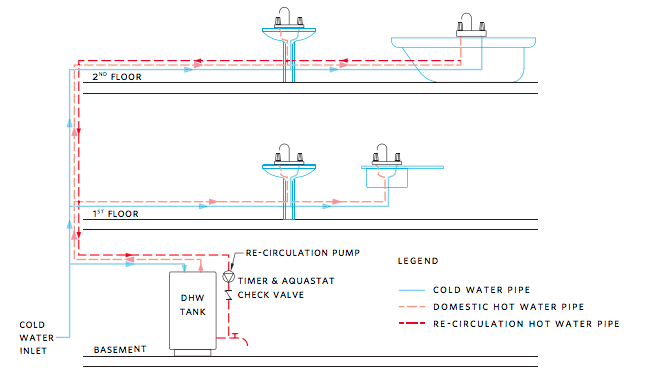

HOT WATER DISTRIBUTION WITH RE-CIRCULATION

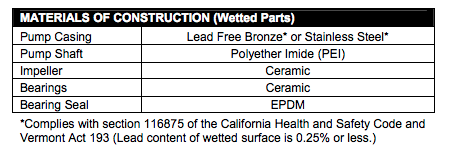

MATERIALS OF CONSTRUCTION

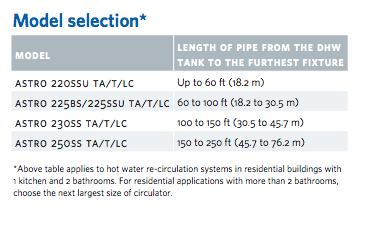

MODEL SELECTION

BROCHURE

Armstrong Astro 2 Series Re-Circulation Pump Brochure

INSTALLATION MANUAL

Armstrong Astro 2 Series Re-Circulation Pump Installation Manual

TIMER & AQUASTAT INSTRUCTIONS

Armstrong Timer & Aquastat Instructions

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
