Armstrong 4700 Series Vertical Multi-Stage Pumps Buyers Guide & Review

Product Buying Guides

July 29, 2019

Armstrong 4700 Series Vertical Multi-Stage Pumps Buyers Guide & Review

The Armstrong 4700 series of vertical multi-stage pumps offers an impressive combination of features including high-pressure performance, a small footprint, stainless steel design, high-efficiency, and tolerance for temperatures which make this series an ideal solution for a variety of applications.

ARMSTRONG 4700 SERIES VERTICAL MULTI-STAGE PUMPS

Armstrong 4700 Series Vertical Multi-Stage Pumps

Model Comparison Chart

Model	Flange Size	HP	Voltage	Phase	GPM	Max. Head
VMS-0302	1-1/4"	1/2	208	3	24	90'

PERFORMANCE CURVES

FEATURES

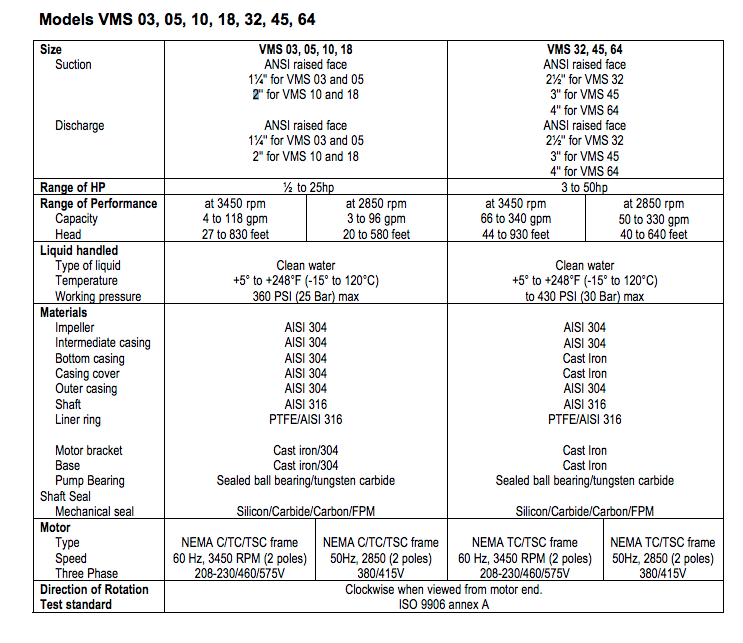

SPECIFICATIONS

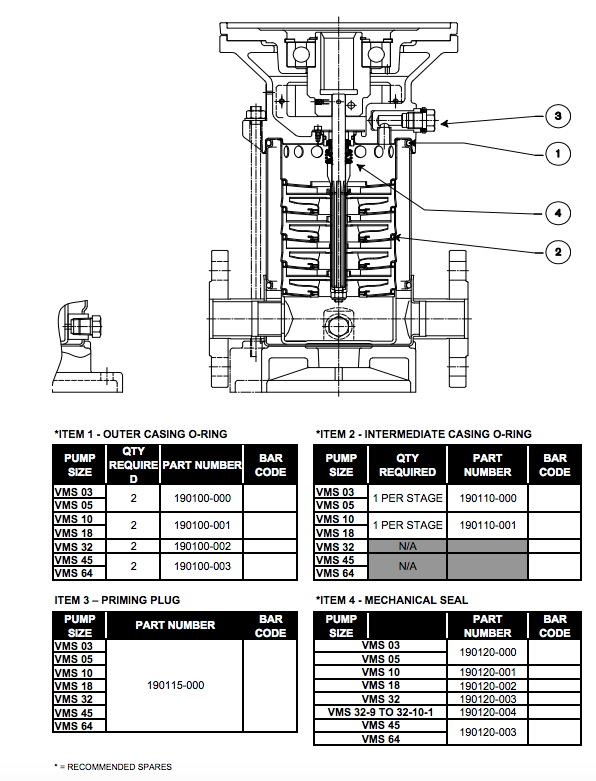

REPAIR PARTS

SUBMITTAL SHEET

Armstrong 4700 Series Vertical Multi-Stage Pump Submittal Sheet

BROCHURE

Armstrong 4700 Series Vertical Multi-Stage Pump Brochure

PUMP CURVE CHART

Armstrong 4700 Series Vertical Multi-Stage Pump Curve Chart

INSTALLATION INSTRUCTIONS

Armstrong 4700 Series Vertical Multi-Stage Pump Installation Instructions

REPLACEMENT PARTS

Armstrong 4700 Series Vertical Multi-Stage Pump Replacement Parts

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
