Bell & Gossett NRF Series Circulator Pumps Buyers Guide & Review

The Bell & Gossett NRF series is residential or light commercial, maintenance free, axial flanged, in-line, cast iron, wet rotor, circulation pumps designed for hydronic heating systems.

Features

High starting torque provides years of trouble-free start-ups
Unique B&G DuraGlide Bearing System assures whisper-quiet, maintenance-free operation
Closed impeller design improves operating efficiency
Backed by B&G's representatives and a great 3-year warranty

BELL & GOSSETT NRF SERIES CIRCULATOR PUMPS

Bell & Gossett NRF Series Circulator Pumps

Model Comparison Chart

Model	Connection Size	HP	Voltage	Phase	GPM	Max. Head
NRF-22	3/4", 1", 1-1/4", 1-1/2"	1/25	115	1	22	15'
NRF-9F/LW	3/4", 1", 1-1/4", 1-1/2"	1/40	115	1	13	8'
NRF-25	3/4", 1", 1-1/4", 1-1/2"	1/15	115	1	24	19'
NRF-33	3/4", 1", 1-1/4", 1-1/2"	1/15	115	1	37	12'

PERFORMANCE CURVES

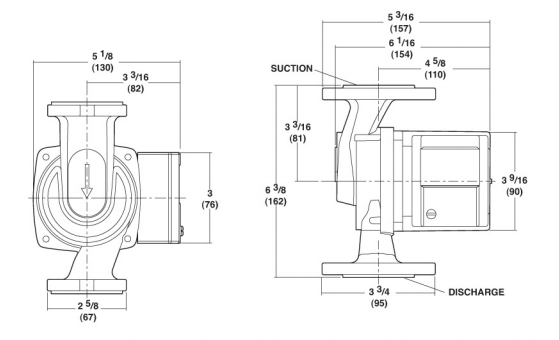

DIMENSIONS

SPECIFICATIONS

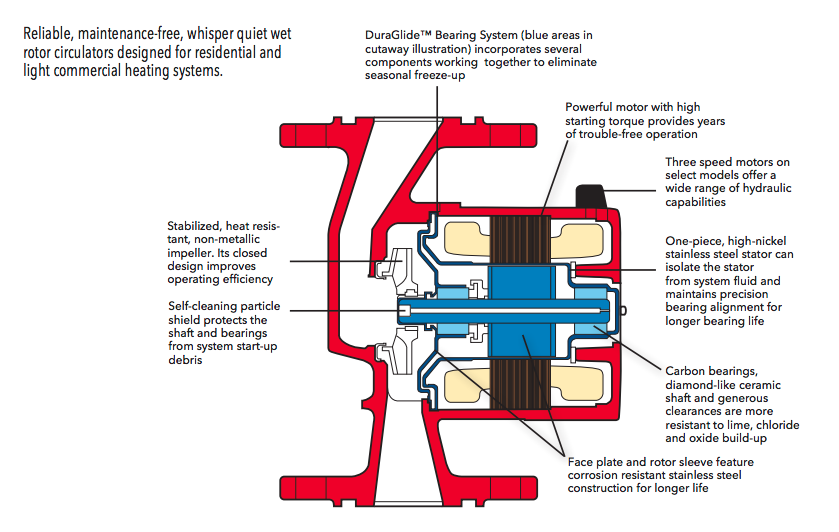

DIAGRAM

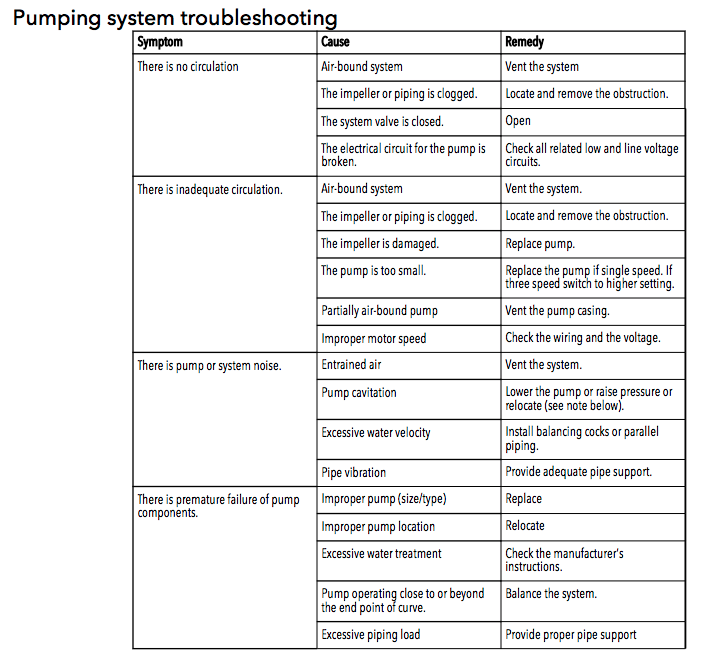

TROUBLESHOOTING

USER MANUAL

Bell & Gossett NRF Series Circulator Pump User Manual

INSTALLATION MANUAL

Bell & Gossett NRF Series Circulator Pump Installation Manual

REPAIR PARTS

Bell & Gossett NRF Series Circulator Pump Repair Parts

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
