Armstrong Compass Series Circulator Pumps Buyers Guide & Review

Product Buying Guides

July 26, 2019

Armstrong Compass Series Circulator Pumps Buyers Guide & Review

The Armstrong Compass series is an energy-efficient variable speed wet-rotor circulator. Designed to replace existing fixed speed circulators, with popular flange-to-flange dimensions, Compass can be considered a universal replacement for all circulators in its capacity range. These circulators incorporate advanced functionality to assist with your construction and service projects. The compass “auto” algorithm intelligently adapts to system demand, so you get the right setup every time and your customers enjoy comfortable room temperatures. Ultimately, compass circulators provide reliable performance, backed by a two-year warranty, with noticeable reductions in energy consumption and operating costs.

Features

Broad operating range, producing up to 20 feet of head and 20 USgpm flow
Design Envelope technology providing sensorless demand-based control
Efficient ecm motor technology and intelligent variable speed operation
Easy to read display
Eight different modes of operation providing versatility to cover the performance of a wide range of fixed speed circulators
Flanged connection
Maximum liquid temperature 230°F (110°C)
Power range: 5 W to 45 W
Includes check valve

Applications

Residential heating and cooling. For closed systems (boiler loops)

ARMSTRONG COMPASS SERIES CIRCULATOR PUMPS

Armstrong Compass Series Circulator Pumps

Model Comparison Chart

Model	COnnection Type	HP	Voltage	Material of Construction	GPM	Max. Head
20-20CI	Flanged	1/17	115	Cast Iron	20	20'
20-20 SS	Flanged	1/17	115	Stainless Steel	20	20'

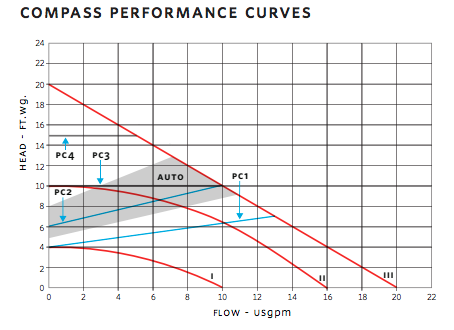

PERFORMANCE CURVES

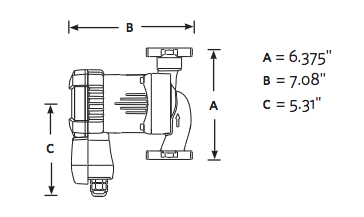

DIMENSIONS

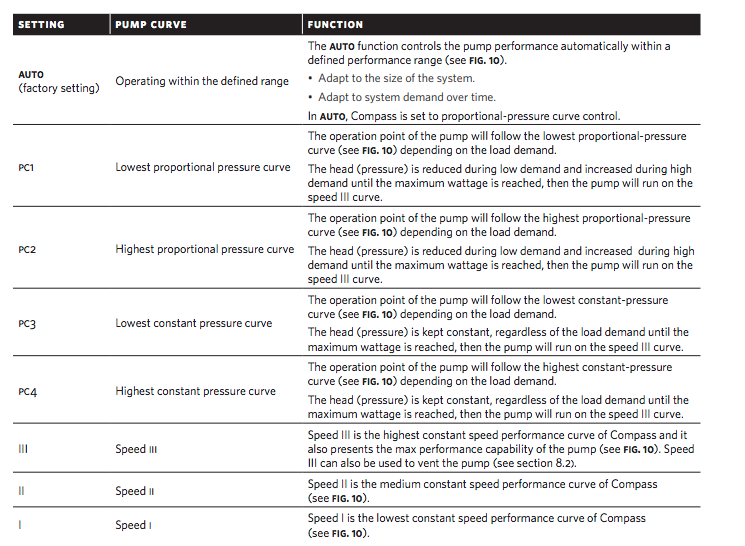

MODE OPTIONS

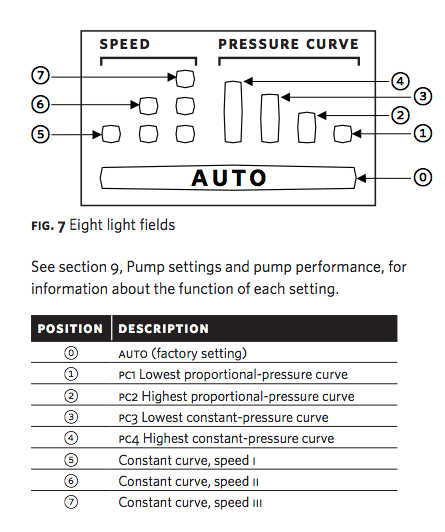

PUMP SETTINGS

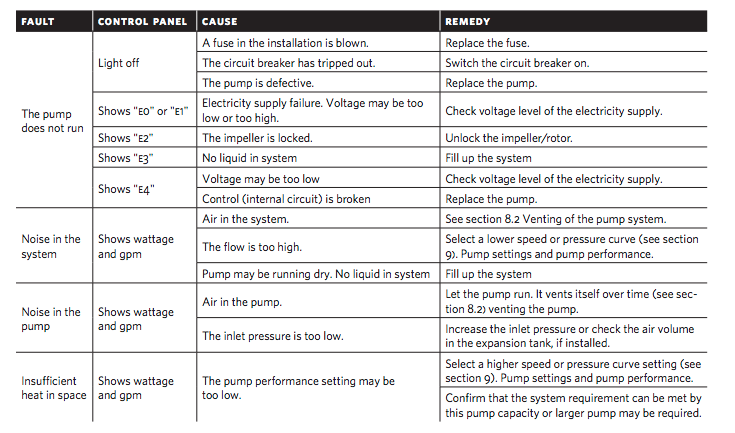

TROUBLESHOOTING

BROCHURE

Armstrong Compass Series Circulator Pump Brochure

INSTALLATION MANUAL

Armstrong Compass Series Circulator Pump Installation Manual

WARRANTY

Armstrong Compass Series Circulator Pump Warranty

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
