Armstrong ARMflo E.2 Series Circulator Pumps Buyers Guide & Review

The Armstrong ARMflo E.2 series of circulator pumps delivers outstanding value to designers, specifiers, contractors, wholesalers, OEMs, and building owners. The E.2 series is designed for use in a wide range of hydronic applications, including:

Hot & chilled water recirculation
Domestic hot water generation
Snow-melt installations
Radiant heating systems
Geothermal heat pumps

ARMflo E.2 series circulators have been re-designed to improve durability and provide enhanced protection against leakage and water damage to electrical components. New design elements include:

Larger, stainless steel shaft
New sealed, permanently lubricated bearings
Bellows-style mechanical seal with silicon carbide wear surfaces
New water slinger to protect motor against water intrusion

ARMSTRONG ARMFLO E.2 SERIES CIRCULATOR PUMPS

Armstrong ARMflo E.2 Series Circulator Pumps

Model Comparison Chart

Model	Connection	HP	Voltage	Phase	GPM	Max. Head
E7.2	1.25"	1/6	240	1	38	26'
E7.2	1.25'	1/6	120	1	38	26'
E9.2	1.25"	1/6	120	1	38	42.4'
E9.2	1.25"	1/6	240	1	38	42.4'
E8.2	1.25"	1/6	240	1	38	34'
E8.2	1.25"	1/6	120	1	38	34'
E10.2	1.5"	1/6	120	1	43	28'
E11.2	1.5"	1/6	120	1	45	31.9'
E13.2	1.5"	1/6	120	1	54	19.7'
E7.2B	1.25"	1/6	120	1	38	26'
E8.2B	1.25"	1/6	120	1	38	34'
E9.2B	1.25"	1/6	120	1	38	42.4'
E10.2B	1.5"	1/6	120	1	43	28'
E11.2B	1.5"	1/6	120	1	45	31.9'
E12.2	1.25"	2/5	120	1	50	56'
E14.2	1.25"	2/5	120	1	52	61'
E13.2B	1.5"	1/6	120	1	54	19.7'
E16.2	2"	1/6	120	1	68	16.8'
E30.2	2"	2/5	120	1	130	22'
E19.2	1.5"	2/5	120	1	90	23'
E21.2	1.5"	2/5	120	1	90	26.5'
E30.2	3"	2/5	120	1	130	22'
E17.2	1.25"	2/5	120	1	65	27'
E33.2	2"	2/5	120	1	143	26'
E33.2	3"	2/5	120	1	143	26'
E12.2B	1.25"	2/5	240	1	50	56'
E12.2B	1.25"	2/5	120	1	50	56'
E14.2B	1.25"	2/5	120	1	52	61'
E15.2	1.25"	2/5	120	1	58	24.5'
E28.2	3"	2/5	120	1	117	17'
E24.2	1.5"	2/5	120	1	105	30'
E22.2	1.5"	2/5	120	1	88	39.5'
E29.2	3"	2/5	120	1	128	19'
E23.2	1.5"	2/5	120	1	83	35.5'
E19.2B	1.5"	2/5	120	1	90	23'
E16.2B	2"	1/6	120	1	68	16.8'
E21.2B	1.5"	2/5	120	1	90	26.5'
E17.2B	1.25"	2/5	120	1	65	27'
E30.2B	2"	2/5	120	1	130	22'
E30.2B	3"	2/5	120	1	130	22'
E33.2B	2"	2/5	120	1	143	26'
E33.2B	3"	2/5	120	1	143	26'
E15.2B	1.25"	2/5	120	1	58	24.5'
E24.2B	1.5"	2/5	120	1	105	30'
E22.2B	1.5"	2/5	120	1	88	39.5'
E28.2B	3"	2/5	120	1	117	17'
E29.2B	3"	2/5	120	1	128	19'
E23.2B	1.5"	2/5	120	1	83	35.5'

PERFORMANCE CURVES

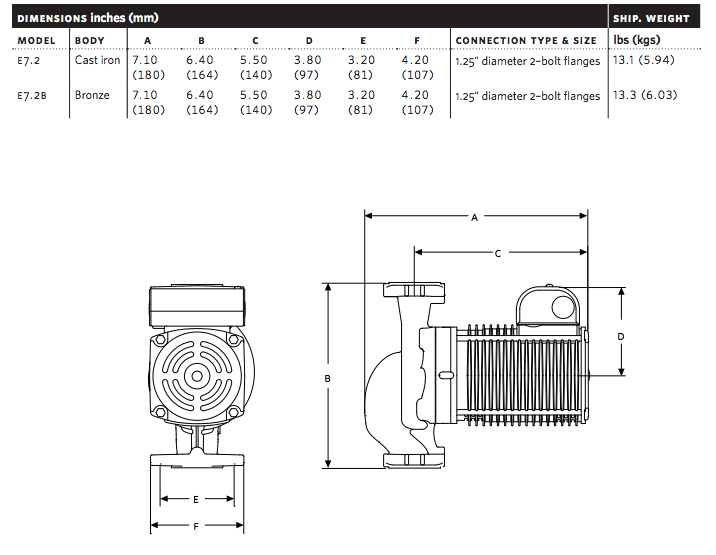

DIMENSIONS

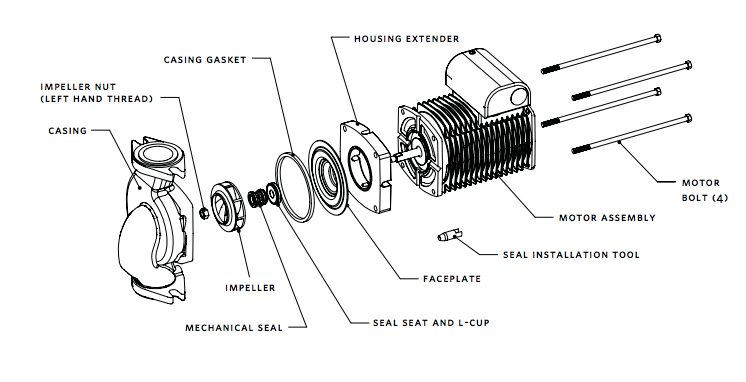

EXPLODED VIEW

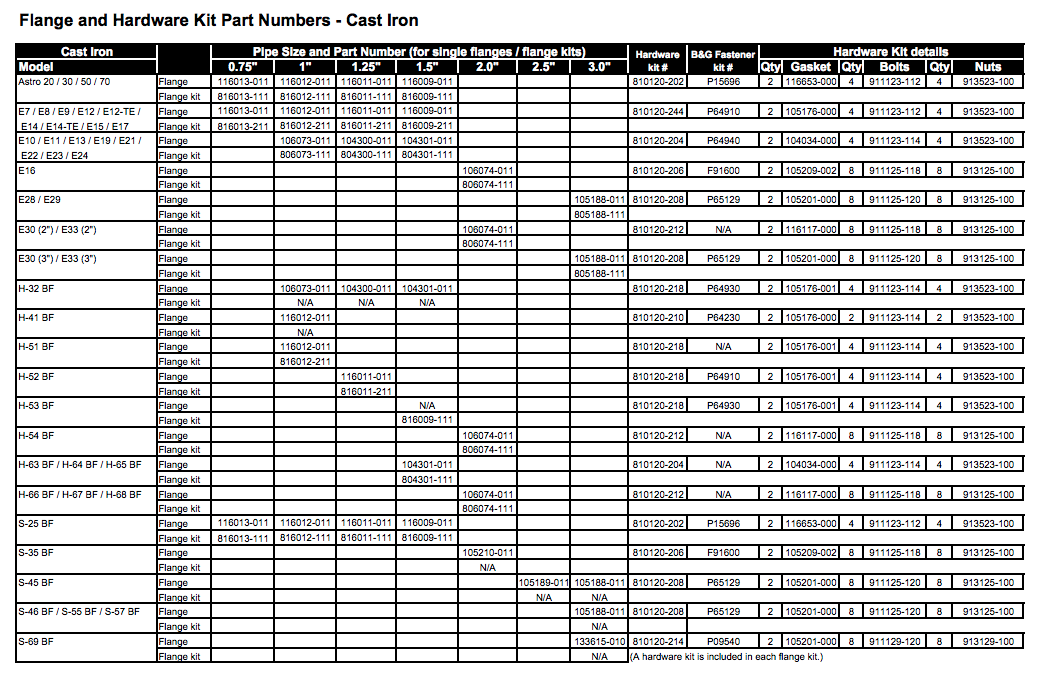

REPAIR PARTS

BROCHURE

Armstrong ARMflo E.2 Series Circulator Pump Brochure

INSTRUCTIONS

Armstrong ARMflo E.2 Series Circulator Pump Instructions

REPAIR PARTS

Armstrong ARMflo E.2 Series Circulator Pump Repair Parts

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
