Brand: Baldor
SKU: AOM3454

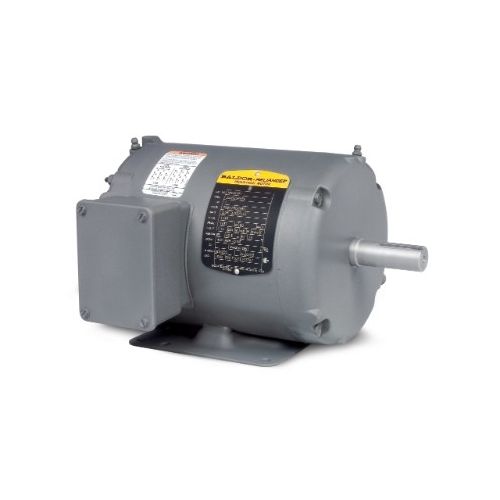

Baldor AOM3454, Yoke/Pedestal Fan HVAC Motor, 1/4 HP, 230/460 Volts, 0.7 Amps, 3 Phase, 1725 RPM, TEAO Enclosure, 48 Frame, Standard, Foot Mounted, 3410M Motor Type, Steel Frame
Baldor Super-E Premium Efficient Totally Enclosed General Purpose Motor
This motors are specifically engineered with industry-driven designs to keep your air handling systems running smoothly, quietly, and efficiently, which means better system reliability and performance, with less maintenance.The Super-E motor has an insulation system that meets the requirements of NEMA MG1 Part 31.4.4.2 for VFD (Variable Frequency Drive) use and is considered Not inverter.
Features
- 60 Hz design
- Locked DE bearing to allow mounting in any configuration
- Ball bearing
- Steel frame
- Gasketed conduit box
- NEMA Premium efficiency
- 3 year warranty
Applications
- Pumps
- Fans
- Conveyors
- Machine tools
- Gear reducers
Note: Picture is illustrative and may not reflect the actual product
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Baldor AOM3454, Yoke/Pedestal Fan HVAC Motor, 1/4 HP, 230/460 Volts, 0.7 Amps, 3 Phase, 1725 RPM, TEAO Enclosure, 48 Frame, Standard, Foot Mounted, 3410M Motor Type, Steel Frame | 1 | $435.05/each |
Description
Baldor Super-E Premium Efficient Totally Enclosed General Purpose Motor
This motors are specifically engineered with industry-driven designs to keep your air handling systems running smoothly, quietly, and efficiently, which means better system reliability and performance, with less maintenance.The Super-E motor has an insulation system that meets the requirements of NEMA MG1 Part 31.4.4.2 for VFD (Variable Frequency Drive) use and is considered Not inverter.
Features
- 60 Hz design
- Locked DE bearing to allow mounting in any configuration
- Ball bearing
- Steel frame
- Gasketed conduit box
- NEMA Premium efficiency
- 3 year warranty
Applications
- Pumps
- Fans
- Conveyors
- Machine tools
- Gear reducers
Note: Picture is illustrative and may not reflect the actual product
Specifications
| Brand | Baldor |
| Mfg. Number | AOM3454 |
| Product Type | Yoke/Pedestal Fan HVAC Motor |
| Horsepower | 1/4 HP |
| Voltage | 230/460 Volts |
| Phase | 3 |
| Frequency | 60 Hz |
| Synchronous Speed | 1800 RPM |
| Speed | 1725 RPM |
| Speed Code | Single Speed |
| High Voltage Full Load Amps | 0.7 Amps |
| Frame Size | 48 |
| Motor Type | 3410M |
| Motor Standards | NEMA |
| Number of Poles | 4 |
| Pulley Face Code | Standard |
| Frame Material | Steel |
| Motor Lead Quantity/Wire Size | 9 @ 18 AWG |
| Overall Length | 9.63 in |
| Service Factor | 1.35 |
| Efficiency @ 100% Load | 64.00% |
| Duty Rating | CONT |
| Inverter Code | Not inverter |
| Mounting Type | Foot Mounting |
| Auxillary Box | No Auxillary Box |
| Base Indicator | Rigid |
| Bearing Grease Type | POLYREX EM (-20F +300F) |
| Current | 1.7 A @ 208 V, 1.3 A @ 230 V, 0.7 A @ 460 V |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Heater Indicator | No heater |
| KVA Code | L |
| Motor Lead Exit | KO Box |
| Motor Lead Termination | Flying Leads |
| Rodent Screen | None |
| Shaft Diameter | 0.500 in |
| Insulation Class | B |
| Power Factor | 56 |
| Pulley End Bearing Type | Ball |
| Shaft Extension Location | Pulley End |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Starting Method | Direct on line |
| Vibration Sensor Indicator | No Vibration Sensor |
| Thermal Device - Bearing | No |
| Thermal Device - Winding | No |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, UR |
