Brand: Leeson
SKU: 140822.00

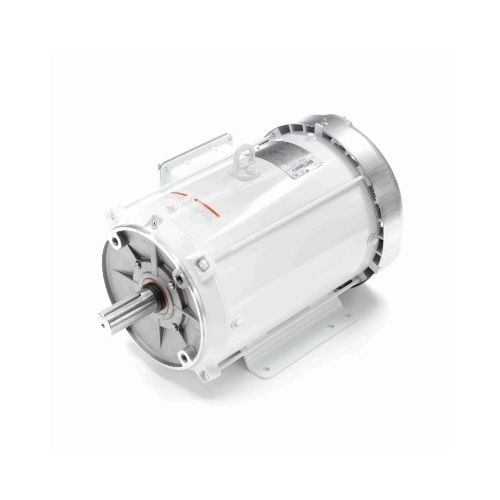

Leeson 140822.00, White Epoxy General Purpose Washdown Motor, 7-1/2 HP, 230/460 Volts, 10.8 Amps, 3 Phase, 60 Hz, 1765 RPM, TEFC Enclosure, 213TC Frame, Rigid base, Rolled Steel Frame, Model no: C213T17WK9A
Leeson White Epoxy General Purpose Washdown Motor
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
Description
Leeson White Epoxy General Purpose Washdown Motor
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Specifications
| Brand | Leeson |
| Model no | C213T17WK9A |
| Product Type | White Epoxy General Purpose Washdown Motor |
| Horsepower | 7-1/2 HP |
| Voltage | 230/460 Volts |
| Phase | 3 |
| Output KW | 5.6 kW |
| Frequency | 60 Hz |
| Speed | 1765 RPM |
| Current | 10.8 Amps |
| Enclosure | TEFC |
| Frame Size | 213TC |
| Motor Orientation | Horizontal |
| Number of Poles | 4 |
| Mounting Type | Rigid Base |
| Frame Material | Rolled Steel |
| Overall Length | 18.71 in |
| Service Factor | 1.25 |
| Efficiency @ 100% Load | 91.70% |
| Duty Rating | Continuous |
| Overload Protector | No |
| Electrical Type | Squirrel Cage Induction Run |
| Starting Method | Across The Line |
| Design Code | B |
| KVA Code | J |
| Frame Length | 12.00 in |
| Shaft Diameter | 1.375 in |
| Insulation Class | F |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 3.38 in |
| Shaft Rotation | Reversible |
| Shaft Type | T |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, CE, UL |
