Brand: Leeson
SKU: 112427.00

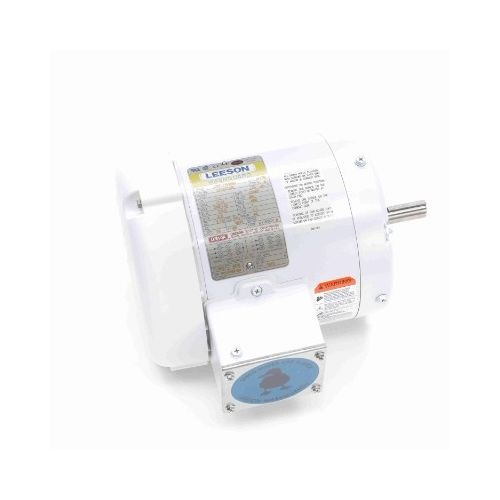

Leeson 112427.00, White Epoxy General Purpose Washdown Motor, 1/2 HP, 208-230/460 Volts, 1.0 Amps, 3 Phase, 60 Hz, 1725 RPM, TEFC Enclosure, 56 Frame, Rigid base, Rolled Steel Frame, Model no: C6T17WB6G
Leeson White Epoxy General Purpose Washdown Motor
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
Description
Leeson White Epoxy General Purpose Washdown Motor
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Specifications
| Brand | Leeson |
| Model no | C6T17WB6G |
| Product Type | White Epoxy General Purpose Washdown Motor |
| Horsepower | 1/2 HP |
| Voltage | 208-230/460 Volts |
| Phase | 3 |
| Output KW | 0.37 kW |
| Frequency | 60 Hz |
| Speed | 1725 RPM |
| Current | 1.0 Amps |
| Enclosure | TEFC |
| Frame Size | 56 |
| Motor Orientation | Horizontal |
| Number of Poles | 4 |
| Mounting Type | Rigid Base |
| Frame Material | Rolled Steel |
| Overall Length | 10.50 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 74% |
| Duty Rating | Continuous |
| Overload Protector | No |
| Electrical Type | Squirrel Cage Induction Run |
| Starting Method | Across The Line |
| Design Code | B |
| KVA Code | K |
| Frame Length | 5.00 in |
| Shaft Diameter | 0.625 in |
| Insulation Class | F |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 1.88 in |
| Shaft Rotation | Reversible |
| Shaft Type | NEMA 56 |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, CE, UL |
