Brand: Baldor
SKU: CSPM3611T

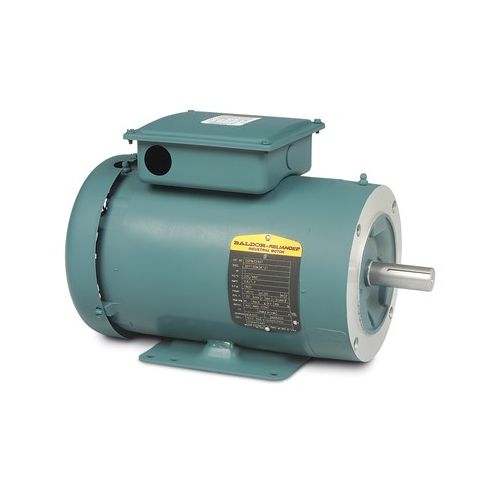

Baldor CSPM3611T, Synchronous Permanent Magnet Motor, 3 HP, 230/460 Volts, 9.4 Amps, 3 Phase, 60 Hz, 3450 RPM, TEFC Enclosure, 182TC Frame, C-Face, 3544M Motor Type, Steel Frame
Baldor Synchronous Permanent Magnet Motor
The Baldor Synchronous Permanent Magnet Motor is designed for those applications requiring inherent, precise, open-loop speed regulation of individual or multiple interconnected operations.
Features
- Permanent magnets
- Steel band frames
- Steel top mounted conduit box
- Inverter ready
Application
- Fast godet
- Slow godet
Note: Picture is illustrative and may not reflect the actual product
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Baldor CSPM3611T, Synchronous Permanent Magnet Motor, 3 HP, 230/460 Volts, 9.4 Amps, 3 Phase, 60 Hz, 3450 RPM, TEFC Enclosure, 182TC Frame, C-Face, 3544M Motor Type, Steel Frame | 1 | $5,736.50/each |
Description
Baldor Synchronous Permanent Magnet Motor
The Baldor Synchronous Permanent Magnet Motor is designed for those applications requiring inherent, precise, open-loop speed regulation of individual or multiple interconnected operations.
Features
- Permanent magnets
- Steel band frames
- Steel top mounted conduit box
- Inverter ready
Application
- Fast godet
- Slow godet
Note: Picture is illustrative and may not reflect the actual product
Specifications
| Brand | Baldor |
| Mfg. Number | CSPM3611T |
| Product Type | Synchronous Permanent Magnet Motor |
| Horsepower | 3 HP |
| Voltage | 230/460 Volts |
| Phase | 3 |
| Frequency | 60 Hz |
| Synchronous Speed | 1800 RPM |
| Speed | 1800 RPM |
| Speed Code | Single Speed |
| High Voltage Full Load Amps | 9.4 Amps |
| Enclosure | TEFC |
| Frame Size | 182TC |
| Motor Type | 3544M |
| Motor Standards | NEMA |
| Number of Poles | 4 |
| Pulley Face Code | C-Face |
| Frame Material | Steel |
| Motor Lead Quantity/Wire Size | 9 @ 18 AWG |
| Overall Length | 16.56 in |
| Service Factor | 1 |
| Efficiency @ 100% Load | 89.50% |
| Duty Rating | CONT |
| Inverter Code | Inverter ready |
| Auxillary Box | No Auxillary Box |
| Base Indicator | Rigid |
| Bearing Grease Type | POLYREX EM (-20F +300F) |
| Current | 8.0 A @ 230 V, 4.0 A @ 460 V |
| Design Code | - |
| Drip Cover | No Drip Cover |
| Heater Indicator | No heater |
| KVA Code | J |
| Motor Lead Exit | KO Box |
| Motor Lead Termination | Flying Leads |
| Shaft Diameter | 1.125 in |
| Insulation Class | F |
| Power Factor | 89 |
| Pulley End Bearing Type | Ball |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Starting Method | Direct on line |
| Vibration Sensor Indicator | No Vibration Sensor |
| Thermal Device - Bearing | No |
| Thermal Device - Winding | None |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, UR |
