Brand: Baldor
SKU: CESSWDM3558T-5
Baldor CESSWDM3558T-5, Stainless Steel Motor, 2 HP, 575 Volts, 2.3 Amps, 3 Phase, 1750 RPM, 60 Hz, TEFC Enclosure, 145TC Frame, C-Face, 3528M Motor Type, Stainless Steel Frame
Baldor Stainless Steel Motor
All stainless steel construction including housing, conduit box and cover, base, fan cover and endplates. Impervious to rust and deterioration caused by high pressure caustic sanitizing. Provides longer trouble-free life than conventional motors.
Features
- SSE Encapsulated or Stainless Steel
- Nema or IEC frames
- Maintenance-friendly drains
- Conduit box is welded to the frame to provide leak proof seal
- Polypropylene external fan
- Lipped conduit box lid
- Oversized conduit box
- Multiple foot mounting holes
- Laser etched nameplate on motor frame
- 300 Series stainless steel shaft
- TEFC or TENV
Applications
- Pumps
- Conveyors

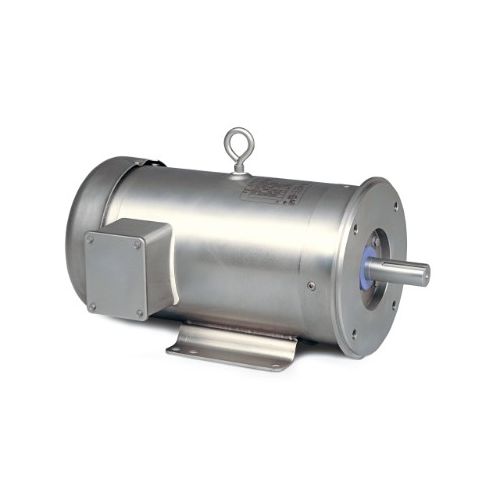

Note: Picture is illustrative and may not reflect the actual product
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Baldor CESSWDM3558T-5, Stainless Steel Motor, 2 HP, 575 Volts, 2.3 Amps, 3 Phase, 1750 RPM, 60 Hz, TEFC Enclosure, 145TC Frame, C-Face, 3528M Motor Type, Stainless Steel Frame | 1 | $3,376.45/each |
Description
Baldor Stainless Steel Motor
All stainless steel construction including housing, conduit box and cover, base, fan cover and endplates. Impervious to rust and deterioration caused by high pressure caustic sanitizing. Provides longer trouble-free life than conventional motors.
Features
- SSE Encapsulated or Stainless Steel
- Nema or IEC frames
- Maintenance-friendly drains
- Conduit box is welded to the frame to provide leak proof seal
- Polypropylene external fan
- Lipped conduit box lid
- Oversized conduit box
- Multiple foot mounting holes
- Laser etched nameplate on motor frame
- 300 Series stainless steel shaft
- TEFC or TENV
Applications
- Pumps
- Conveyors
Note: Picture is illustrative and may not reflect the actual product
Specifications
| Brand | Baldor |
| Mfg. Number | CESSWDM3558T-5 |
| Product Type | Stainless Steel Motor |
| Horsepower | 2 HP |
| Voltage | 575 Volts |
| Phase | 3 |
| Frequency | 60 Hz |
| Synchronous Speed | 1800 RPM |
| Speed | 1750 RPM |
| Speed Code | Single Speed |
| High Voltage Full Load Amps | 2.3 Amps |
| Enclosure | TEFC |
| Frame Size | 145TC |
| Motor Type | 3528M |
| Motor Standards | NEMA |
| Number of Poles | 4 |
| Pulley Face Code | C-Face |
| Frame Material | Stainless Steel |
| Motor Lead Quantity/Wire Size | 3 @ 18 AWG |
| Overall Length | 13.42 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 86.50% |
| Duty Rating | CONT |
| Inverter Code | Inverter ready |
| Auxillary Box | No |
| Base Indicator | Rigid |
| Bearing Grease Type | POLYREX EM (-20F +300F) |
| Current | 2.3 A |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Heater Indicator | No heater |
| KVA Code | L |
| Motor Lead Exit | KO Box |
| Motor Lead Termination | Flying Leads |
| Rodent Screen | No |
| Shaft Diameter | 0.875 in |
| Insulation Class | H |
| Power Factor | 75 |
| Pulley End Bearing Type | Sealed |
| Shaft Extension Location | Pulley End |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Starting Method | Direct on line |
| Vibration Sensor Indicator | No Vibration Sensor |
| Thermal Device - Bearing | No |
| Thermal Device - Winding | No |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, UR |
