Brand: Leeson
SKU: 101602.00

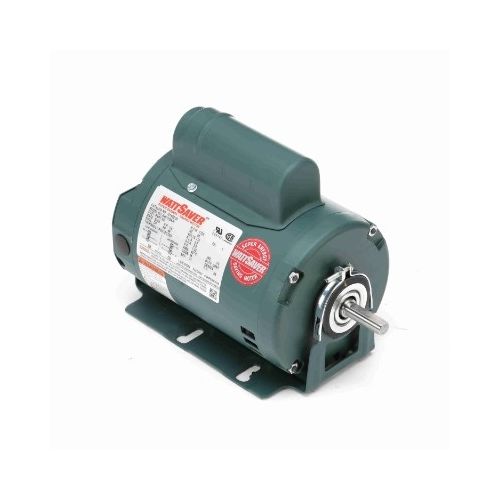

Leeson 101602.00, Single Phase HVAC Motor, 1/4 HP, 115 Volts, 2.5 Amps, 1725 RPM, ODP Enclosure, 48Z Frame, Resilient Base, Rolled Steel Frame, Model no: A4K17DR7F
Leeson Single Phase HVAC Motor
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Leeson 101602.00, Single Phase HVAC Motor, 1/4 HP, 115 Volts, 2.5 Amps, 1725 RPM, ODP Enclosure, 48Z Frame, Resilient Base, Rolled Steel Frame, Model no: A4K17DR7F | 1 | $565.52/each |
Description
Leeson Single Phase HVAC Motor
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Specifications
| Brand | Leeson |
| Model no | A4K17DR7F |
| Product Type | Single Phase HVAC Motor |
| Horsepower | 1/4 HP |
| Voltage | 115 Volts |
| Phase | 1 |
| Output KW | 0.19 kW |
| Frequency | 60 Hz |
| Speed | 1725 RPM |
| Current | 2.5 Amps |
| Enclosure | ODP |
| FrameSize | 48Z |
| Motor Orientation | Horizontal |
| Number of Poles | 4 |
| Mounting Type | Resilient Base |
| Frame Material | Rolled Steel |
| Overall Length | 10.39 in |
| Service Factor | 1.35 |
| Efficiency @ 100% Load | 71% |
| Duty Rating | Continuous |
| Overload Protector | Automatic |
| Electrical Type | Split Phase Start Capacitor Run |
| Starting Method | Across The Line |
| Design Code | NO DESIGN CODE |
| KVA Code | M |
| Frame Length | 6.00 in |
| Shaft Diameter | 0.500 in |
| Insulation Class | F |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 1.5 in |
| Shaft Rotation | Selective Counterclockwise |
| Ambient Temperature | 40 °C |
| Agency Approvals | UL, CSA,CE |
