Brand: Baldor
SKU: EBM3211T
Baldor EBM3211T, Short-Series Brake Motor, 3 HP, 230/460 Volts, 4.2 Amps, 3 Phase, 1765 RPM, 60 Hz, OPEN Enclosure, 182T Frame, Standard, 3630M Motor Type, Steel Frame
Baldor Short-Series Brake Motors
Short Series Brake Motors are availabe in either footed or footless mounting and designed in either totally enclosed fan cooled or totally enclosed non-vent construction. These motors are available from stock in ratings of 1/2 HP thru 5 HP (56 thru 184T frames).
Features
- These motors feature Dodge Short Series brakes which are spring set, magnetically released power off type brakes integrally mounted to the motor for the most compact design
- These brakes are single phase with built-in rectifier to DC and are inverter ready
- Brakes have a manual release lever
- Brake leads are brought into the motor conduit box for connecting to the motor leads on (56-140 frames) and set up for connecting separately on (180-210 frames)
Applications
- Unit and Baggage handling
- Conveyors
- Packaging equipment
- Machine tools
- Hoists
- Elevators and door openers

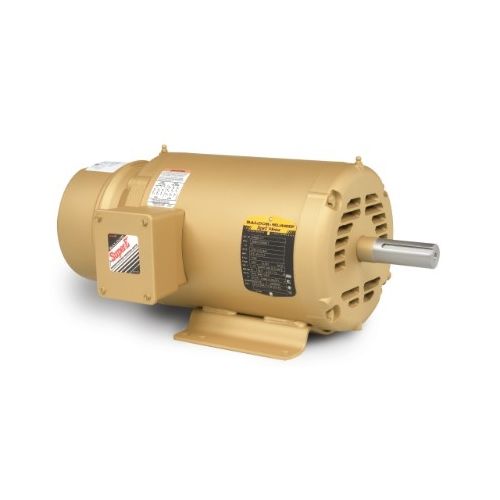

Note: Picture is illustrative and may not reflect the actual product
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Baldor EBM3211T, Short-Series Brake Motor, 3 HP, 230/460 Volts, 4.2 Amps, 3 Phase, 1765 RPM, 60 Hz, OPEN Enclosure, 182T Frame, Standard, 3630M Motor Type, Steel Frame | 1 | $2,762.38/each |
Description
Baldor Short-Series Brake Motors
Short Series Brake Motors are availabe in either footed or footless mounting and designed in either totally enclosed fan cooled or totally enclosed non-vent construction. These motors are available from stock in ratings of 1/2 HP thru 5 HP (56 thru 184T frames).
Features
- These motors feature Dodge Short Series brakes which are spring set, magnetically released power off type brakes integrally mounted to the motor for the most compact design
- These brakes are single phase with built-in rectifier to DC and are inverter ready
- Brakes have a manual release lever
- Brake leads are brought into the motor conduit box for connecting to the motor leads on (56-140 frames) and set up for connecting separately on (180-210 frames)
Applications
- Unit and Baggage handling
- Conveyors
- Packaging equipment
- Machine tools
- Hoists
- Elevators and door openers
Note: Picture is illustrative and may not reflect the actual product
Specifications
| Brand | Baldor |
| Mfg. Number | EBM3211T |
| Product Type | Short-Series Brake Motor |
| Horsepower | 3 HP |
| Voltage | 230/460 Volts |
| Phase | 3 |
| Frequency | 60 Hz |
| Synchronous Speed | 1800 RPM |
| Speed | 1765 RPM |
| Speed Code | Single Speed |
| High Voltage Full Load Amps | 4.2 Amps |
| Enclosure | OPEN |
| Frame Size | 182T |
| Motor Type | 3630M |
| Motor Standards | NEMA |
| Number of Poles | 4 |
| Pulley Face Code | Standard |
| Frame Material | Steel |
| Motor Lead Quantity/Wire Size | 9 @ 16 AWG |
| Overall Length | 19.57 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 89.50% |
| Duty Rating | CONT |
| Inverter Code | Inverter ready |
| Auxillary Box | No Auxillary Box |
| Base Indicator | Rigid |
| Bearing Grease Type | POLYREX EM (-20F +300F) |
| Current | 8.5 A @ 208 V 8.4 A @ 230 V 4.2 A @ 460 V |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Heater Indicator | No heater |
| KVA Code | K |
| Motor Lead Exit | KO Box |
| Motor Lead Termination | Flying Leads |
| Rodent Screen | No |
| Shaft Diameter | 1.125 in |
| Insulation Class | F |
| Power Factor | 74 |
| Pulley End Bearing Type | Ball Bearing |
| Shaft Extension Location | Pulley End |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Starting Method | Direct on line |
| Vibration Sensor Indicator | No Vibration Sensor |
| Thermal Device - Bearing | No |
| Thermal Device - Winding | No |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, CSA, EEV, UR |
