Brand: Marathon
SKU: 145T11TCR60007A1

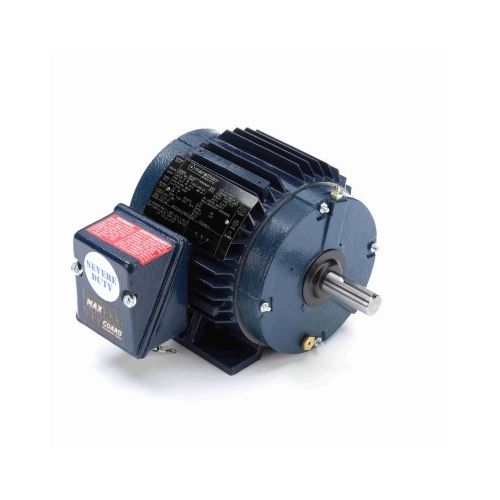

Marathon 145T11TCR60007A1, Severe Duty Motor, 1 HP, 230/460 Volts, 1.8 Amps, 3 Phase, 1150 RPM, 60 Hz, TENV Enclosure, 145T Frame, Rigid Base, Cast Iron Frame, Catalog No: E462A
Marathon Severe Duty Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Marathon 145T11TCR60007A1, Severe Duty Motor, 1 HP, 230/460 Volts, 1.8 Amps, 3 Phase, 1150 RPM, 60 Hz, TENV Enclosure, 145T Frame, Rigid Base, Cast Iron Frame, Catalog No: E462A | 1 | $1,095.40/each |
Description
Marathon Severe Duty Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies.
Specifications
| Brand | Marathon |
| Catalog No | E462A |
| Product Type | Severe Duty Motor |
| Horsepower | 1 HP |
| Voltage | 230/460 Volts |
| Phase | 3 |
| Output KW | 0.75 kW |
| Frequency | 60 Hz |
| Speed | 1150 RPM |
| Current | 1.8 Amps |
| Enclosure | TENV |
| Frame Size | 145T |
| Motor Orientation | Horizontal |
| Number of Poles | 6 |
| Mounting Type | Rigid Base |
| Frame Material | Cast Iron |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 82.50% |
| Duty Rating | Continuous |
| Overload Protector | No |
| Electrical Type | Squirrel Cage Inverter Rated |
| Starting Method | Line Or Inverter |
| Design Code | B |
| KVA Code | J |
| Insulation Class | F |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Rotation | Reversible |
| Shaft Type | T |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, CE, UL |
