Brand: Marathon
SKU: 145TTTN16630

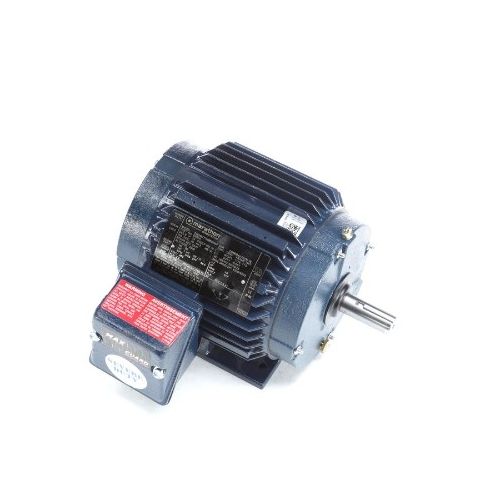

Marathon 145TTTN16630, Severe Duty Motor, 1-1/2 HP, 460 Volts, 2.3 Amps, 3 Phase, 1755 RPM, 60 Hz, TENV Enclosure, 145T Frame, Rigid Base, Cast Iron Frame, Catalog No: E652A
Marathon Severe Duty Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Marathon 145TTTN16630, Severe Duty Motor, 1-1/2 HP, 460 Volts, 2.3 Amps, 3 Phase, 1755 RPM, 60 Hz, TENV Enclosure, 145T Frame, Rigid Base, Cast Iron Frame, Catalog No: E652A | 1 | $1,028.69/each |
Description
Marathon Severe Duty Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies.
Specifications
| Brand | Marathon |
| Catalog No | E652A |
| Product Type | Severe Duty Motor |
| Horsepower | 1-1/2 HP |
| Voltage | 460 Volts |
| Phase | 3 |
| Output KW | 1.1 kW |
| Frequency | 60 Hz |
| Speed | 1755 RPM |
| Current | 2.3 Amps |
| Enclosure | TENV |
| Frame Size | 145T |
| Motor Orientation | Horizontal |
| Number of Poles | 4 |
| Mounting Type | Rigid Base |
| Frame Material | Cast Iron |
| Overall Length | 11.43 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 86.50% |
| Duty Rating | Continuous |
| Overload Protector | No |
| Electrical Type | Squirrel Cage Inverter Rated |
| Starting Method | Line Or Inverter |
| Design Code | B |
| KVA Code | P |
| Frame Length | 6.25 in |
| Shaft Diameter | 0.875 in |
| Insulation Class | F |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 2.56 in |
| Shaft Rotation | Reversible |
| Shaft Type | T |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, CE, UL |
