Brand: Baldor
SKU: EMM09756-PP

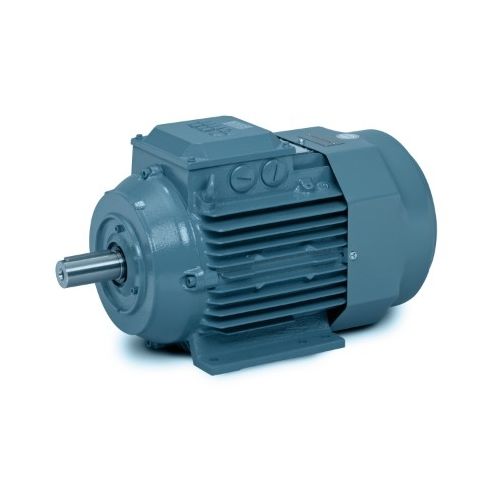

Baldor EMM09756-PP, Process Performance Motor, 0.75 KW, 230/380/400 Volts, 3.10/1.86/1.80 Amps, 3 Phase, 50 Hz, 938/927 RPM, 90 Frame
Baldor Process Performance Motor
Process performance motor is designed to operate at the highest levels of efficiency to save energy, reduce operating costs and enable demanding motor applications to perform reliability and without unscheduled downtime. Four properties set ABB Process performance motors apart - their efficiency, reliability, use of leading-edge technology, and the virtually limitless options they provide for customization.
Features
- Cast iron or die cast aluminum frame
- IP55 as standard
- Class F insulation with Class B rise
- 50 or 60hz operation
- VFD capable
- Warranty - 36 months from commissioning, maximum 42 months from the delivery date
- IE2, IE3 or IE4 efficiency classes
- Corrosion class C3M as standard
- -20 to +40°C ambient as standard
Application
- Compressors
- Conveyors
- Blowers
- Fans
- Irrigation
- Pumps
- Heat Exchangers
- Cranes & Hoist
- Printing
- Extruders
Note: Picture is illustrative and may not reflect the actual product
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Baldor EMM09756-PP, Process Performance Motor, 0.75 KW, 230/380/400 Volts, 3.10/1.86/1.80 Amps, 3 Phase, 50 Hz, 938/927 RPM, 90 Frame | 1 | $0.00/each |
Description
Baldor Process Performance Motor
Process performance motor is designed to operate at the highest levels of efficiency to save energy, reduce operating costs and enable demanding motor applications to perform reliability and without unscheduled downtime. Four properties set ABB Process performance motors apart - their efficiency, reliability, use of leading-edge technology, and the virtually limitless options they provide for customization.
Features
- Cast iron or die cast aluminum frame
- IP55 as standard
- Class F insulation with Class B rise
- 50 or 60hz operation
- VFD capable
- Warranty - 36 months from commissioning, maximum 42 months from the delivery date
- IE2, IE3 or IE4 efficiency classes
- Corrosion class C3M as standard
- -20 to +40°C ambient as standard
Application
- Compressors
- Conveyors
- Blowers
- Fans
- Irrigation
- Pumps
- Heat Exchangers
- Cranes & Hoist
- Printing
- Extruders
Note: Picture is illustrative and may not reflect the actual product
Specifications
| Brand | Baldor |
| Mfg. Number | EMM09756-PP |
| Product Type | Process Performance Motor |
| Horsepower | 400 V 380 V 230 V |
| Voltage | 230-380/400 Volts |
| Output KW | 0.750 kW |
| Phase | 3 |
| Frequency | 50 Hz |
| Synchronous Speed | 1000 RPM |
| Speed | 938/ 927 RPM |
| Speed Code | Single Speed |
| High Voltage Full Load Amps | 1.8 Amps |
| Frame Size | 90 |
| Motor Standards | IEC |
| Duty Rating | S1 |
| Auxillary Box | D-End Top |
| Current | 3.1 A @ 230 V, 1.9 A @ 380 V, 1.8 A @ 400 V |
| Insulation Class | F |
| Ambient Temperature | 40 °C |
