Brand: Leeson
SKU: 121878.00

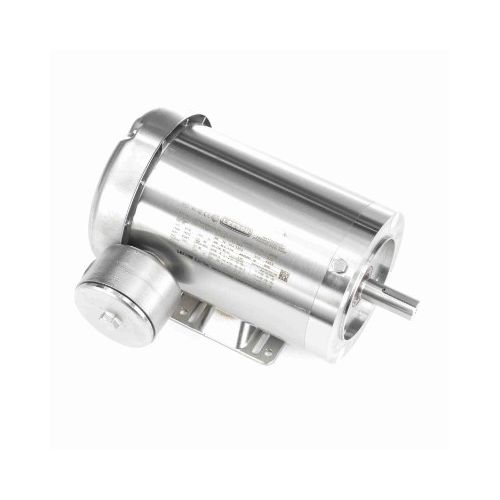

Leeson 121878.00, Premium Stainless Washdown Motor, 3 HP, 230/460 Volts, 4.0 Amps, 3 Phase, 3490 RPM, 60 Hz, TEFC Enclosure, 145TC Frame, Rigid Base, Stainless Steel Frame, Model no: CZ145T34WK27A
Leeson Premium Stainless Washdown Motor
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Leeson 121878.00, Premium Stainless Washdown Motor, 3 HP, 230/460 Volts, 4.0 Amps, 3 Phase, 3490 RPM, 60 Hz, TEFC Enclosure, 145TC Frame, Rigid Base, Stainless Steel Frame, Model no: CZ145T34WK27A | 1 | $3,455.26/each |
Description
Leeson Premium Stainless Washdown Motor
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Specifications
| Brand | Leeson |
| Mfg. Number | CZ145T34WK27A |
| Product Type | Premium Stainless Washdown Motor |
| Horsepower | 3 HP |
| Voltage | 230/460 Volts |
| Phase | 3 |
| Output KW | 2.2 kW |
| Frequency | 60 Hz |
| Speed | 3490 RPM |
| Current | 4.0 Amps |
| Enclosure | TEFC |
| Frame Size | 145TC |
| Motor Orientation | Horizontal |
| Number of Poles | 2 |
| Mounting Type | Rigid Base |
| Frame Material | Stainless Steel |
| Overall Length | 13.00 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 86.50% |
| Duty Rating | Continuous |
| Overload Protector | No |
| Electrical Type | Squirrel Cage Induction Run |
| Starting Method | Across The Line |
| Design Code | A |
| KVA Code | N |
| Frame Length | 8.00 in |
| Shaft Diameter | 0.875 in |
| Insulation Class | F |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 2.25 in |
| Shaft Rotation | Reversible |
| Shaft Type | T |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, CE, UL |
