Brand: Leeson
SKU: 114216.00

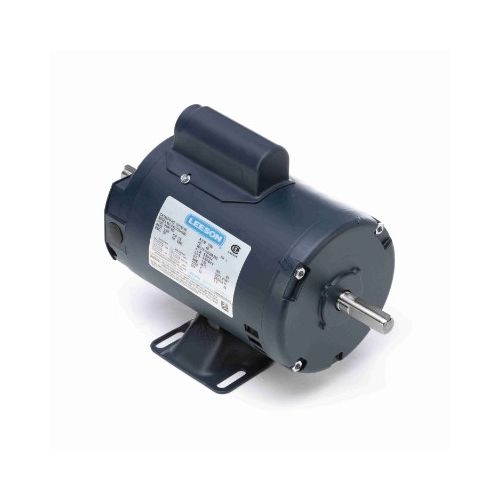

Leeson 114216.00, Power Tool Motor, 1 HP, 115/208-230 Volts, 6.0 Amps, 1 Phase, 3450 RPM, 60 Hz, ODP Enclosure, 56Z Frame, Rigid Base, Rolled Steel Frame, Model no: C6C34DB71C
Leeson Power Tool Motor
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Leeson 114216.00, Power Tool Motor, 1 HP, 115/208-230 Volts, 6.0 Amps, 1 Phase, 3450 RPM, 60 Hz, ODP Enclosure, 56Z Frame, Rigid Base, Rolled Steel Frame, Model no: C6C34DB71C | 1 | $821.74/each |
Description
Leeson Power Tool Motor
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Specifications
| Brand | Leeson |
| Model no | C6C34DB71C |
| Product Type | Power Tool Motor |
| Horsepower | 1 HP |
| Voltage | 115/208-230 Volts |
| Phase | 1 |
| Output KW | 0.75 kW |
| Frequency | 60 Hz |
| Speed | 3450 RPM |
| Current | 6.0 Amps |
| Enclosure | ODP |
| Frame Size | 56Z |
| Motor Orientation | Horizontal |
| Number of Poles | 2 |
| Mounting Type | Rigid Base |
| Frame Material | Rolled Steel |
| Overall Length | 12.81 in |
| Service Factor | 1.25 |
| Efficiency @ 100% Load | 70% |
| Duty Rating | Continuous |
| Overload Protector | No |
| Electrical Type | Capacitor Start Induction Run |
| Starting Method | Across The Line |
| Design Code | L |
| KVA Code | J |
| Frame Length | 6.00 in |
| Shaft Diameter | 0.625 in |
| Insulation Class | B |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 1.87 in |
| Shaft Rotation | Selective Counterclockwise |
| Shaft Type | Special Extension Both Sides |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, CE, UL |
