Brand: Leeson
SKU: 191205.00

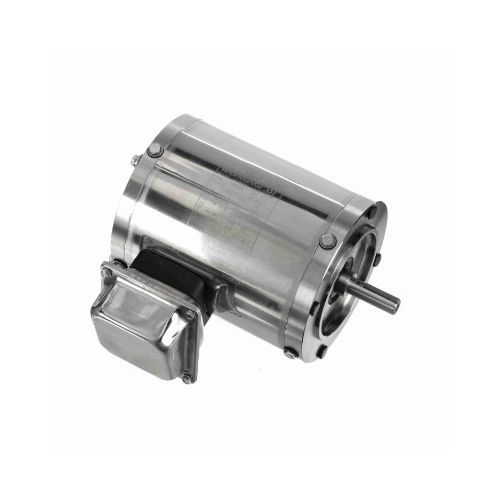

Leeson 191205.00, Paint Free All Stainless Washdown Motor, 1/2 HP, 208-230/460 Volts, 0.80 Amps, 3 Phase, 1740 RPM, 60 Hz, TENV Enclosure, 56C Frame, Round, Stainless Steel Frame ,Model no: C6T17NC329A
Leeson Paint Free All Stainless Washdown Motor
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
Description
Leeson Paint Free All Stainless Washdown Motor
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Specifications
| Brand | Leeson |
| Model no | C6T17NC329A |
| Product Type | Paint Free All Stainless Washdown Motor |
| Horsepower | 1/2 HP |
| Voltage | 208-230/460 Volts |
| Phase | 3 |
| Output KW | 0.37 kW |
| Frequency | 60 Hz |
| Speed | 1740 RPM |
| Current | 0.80 Amps |
| Enclosure | TENV |
| Frame Size | 56C |
| Motor Orientation | Horizontal |
| Number of Poles | 4 |
| Mounting Type | Round |
| Frame Material | Stainless Steel |
| Overall Length | 9.78 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 81.50% |
| Duty Rating | Continuous |
| Overload Protector | No |
| Electrical Type | Squirrel Cage Induction Run |
| Starting Method | Across The Line |
| Design Code | B |
| KVA Code | L |
| Frame Length | 6.00 in |
| Shaft Diameter | 0.625 in |
| Insulation Class | F |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 1.88 in |
| Shaft Rotation | Reversible |
| Shaft Type | NEMA 56 |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, CE, UL |
