Brand: Myers

SKU: MWS550120T

Myers MWS550120T, MWS5 Series, Sewage Pump with Tethered Float Switch, 1/2 HP, 115 Volts, 1 Phase, 2" NPT Vertical Discharge, 130 GPM Max, 18 ft Max Head, 20 ft Cord, Automatic

Write a Review
Myers
MAP
List Price: $973.60
Best Price Guarantee
"See final price in cart"
Available For Order! (Usually Ships 3-5 Days)
Call Sales Counter !
Free Shipping

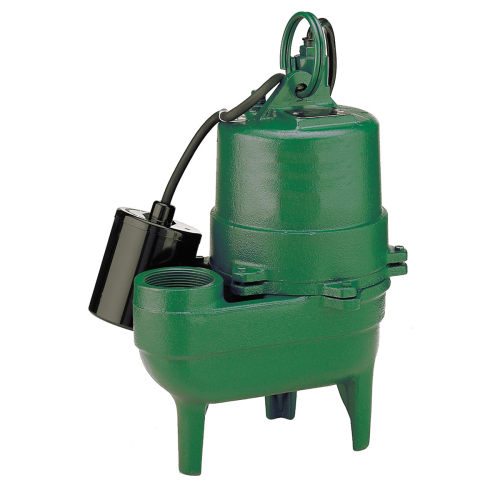

Myers MWS5 Series Submersible Sewage Pump

Features

  • Cast iron volute case and motor housing
  • Vortex impeller made of reinforced Noryl with brass threaded insert
  • 2” spherical solids handling capabilities
  • Built-in thermal overload with automatic reset
  • Bearing and mechanical seal is permanently lubricated for long life
  • Stainless steel hardware allows for easy disassembly after extended service
  • Heavyduty lift-out ring for easy serviceability
  • Standard controls available for automatic operation
  • Acceptable pH range of 5-9
  • Type 6A Carbon and Ceramic shaft seal
Applications
  • Sewage
  • Effluent
  • Wastewater Removal
  • Transfer,
  • Sump Drainage
  • Dewatering
  • Flood Control



Key Features:

Brand
Myers
Mfg. Number
MWS550120T
Series
MWS5
Impeller Type
Vortex
Pump Housing Material
Cast iron
Discharge Connection
2" NPT vertical
Description

Myers MWS5 Series Submersible Sewage Pump

Features

  • Cast iron volute case and motor housing
  • Vortex impeller made of reinforced Noryl with brass threaded insert
  • 2” spherical solids handling capabilities
  • Built-in thermal overload with automatic reset
  • Bearing and mechanical seal is permanently lubricated for long life
  • Stainless steel hardware allows for easy disassembly after extended service
  • Heavyduty lift-out ring for easy serviceability
  • Standard controls available for automatic operation
  • Acceptable pH range of 5-9
  • Type 6A Carbon and Ceramic shaft seal
Applications
  • Sewage
  • Effluent
  • Wastewater Removal
  • Transfer,
  • Sump Drainage
  • Dewatering
  • Flood Control



Specifications
Brand Myers
Mfg. Number MWS550120T
Series MWS5
Product Type Sewage pump
Application Sewage/Dewatering/Flood Control
Operation Automatic
Horsepower 1/2 HP
Voltage 115 Volts
Phase 1
Frequency 60 Hz
Speed 1550 RPM
Impeller Type Vortex
Pump Housing Material Cast iron
Discharge Connection 2" NPT vertical
Impeller Material Reinforced Noryl
Maximum Flow 130 GPM
Maximum Head 18 ft
Maximum Solids Handling 2"
Cord Length 20 ft
Maximum Fluid Temperature 130°F
