Brand: Marathon
SKU: 254TTDX7278

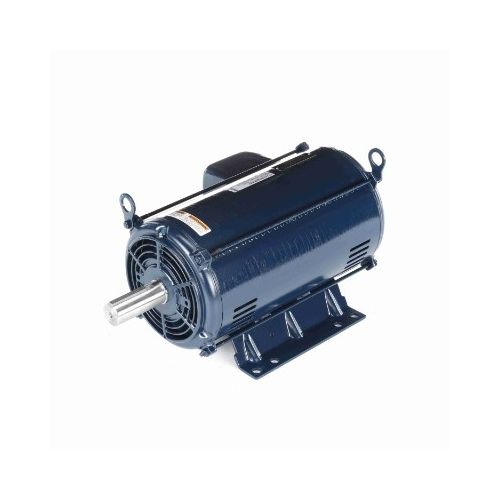

Marathon 254TTDX7278, Motor, 7-1/2 HP, 200-230 Volts, 10.2 Amps, 3 Phase, 1775 RPM, 60 Hz, ODP Enclosure, 254T Frame, Rigid Base, Rolled Steel Frame, Catalog No: Y456
Marathon Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Marathon 254TTDX7278, Motor, 7-1/2 HP, 200-230 Volts, 10.2 Amps, 3 Phase, 1775 RPM, 60 Hz, ODP Enclosure, 254T Frame, Rigid Base, Rolled Steel Frame, Catalog No: Y456 | 1 | $1,778.42/each |
Description
Marathon Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies.
Specifications
| Brand | Marathon |
| Catalog No | Y456 |
| Product Type | Motor |
| Horsepower | 7-1/2 HP |
| Voltage | 200-230 Volts |
| Phase | 3 |
| Output KW | 5.6 kW |
| Frequency | 60 Hz |
| Speed | 1775 RPM |
| Current | 10.2 Amps |
| Enclosure | ODP |
| FrameSize | 254T |
| Motor Orientation | Horizontal |
| Number of Poles | 4//6 |
| Mounting Type | Rigid Base |
| Frame Material | Rolled Steel |
| Overall Length | 22.32 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 87.50% |
| Duty Rating | Continous |
| Overload Protector | No |
| Electrical Type | Squirrel Cage Induction Run |
| Starting Method | Across The Line |
| Design Code | 2VT |
| KVA Code | K |
| Frame Length | 15.45 in |
| Shaft Diameter | 1.625 in |
| Insulation Class | B |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 4.19 in |
| Shaft Rotation | Reversible |
| Shaft Type | T |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, CE, UL |
