Brand: Marathon
SKU: 213TTFS7238

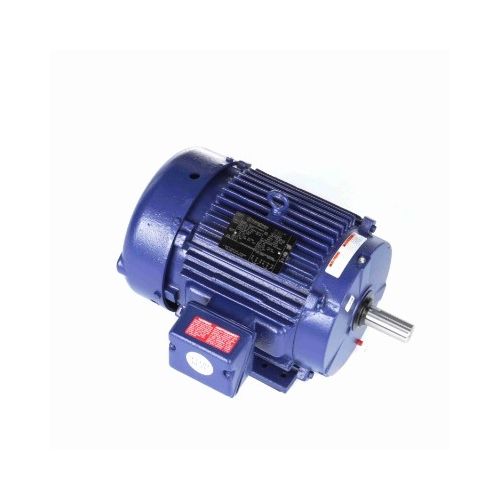

Marathon 213TTFS7238, Motor, 5 HP, 460 Volts, 2.4 Amps, 3 Phase, 1760 RPM, 60 Hz, TEFC Enclosure, 213T Frame, Rigid Base, Cast Iron Frame, Catalog No: Y381
Marathon Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Marathon 213TTFS7238, Motor, 5 HP, 460 Volts, 2.4 Amps, 3 Phase, 1760 RPM, 60 Hz, TEFC Enclosure, 213T Frame, Rigid Base, Cast Iron Frame, Catalog No: Y381 | 1 | $1,896.87/each |
Description
Marathon Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies.
Specifications
| Brand | Marathon |
| Catalog No | Y381 |
| Product Type | Motor |
| Horsepower | 5 Hp |
| Voltage | 460 Volts |
| Phase | 3 |
| Output KW | 3.7 kW |
| Frequency | 60 Hz |
| Speed | 1760 RPM |
| Current | 2.4 Amps |
| Enclosure | TEFC |
| FrameSize | 213T |
| Motor Orientation | Horizontal |
| Number of Poles | 4//8 |
| Mounting Type | Rigid Base |
| Frame Material | Cast Iron |
| Overall Length | 19.72 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 89.50% |
| Duty Rating | Continous |
| Overload Protector | No |
| Electrical Type | Squirrel Cage Induction Run |
| Starting Method | Across The Line |
| Design Code | 1VT |
| KVA Code | J |
| Frame Length | 8.75 in |
| Shaft Diameter | 1.375 in |
| Insulation Class | F |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 3.56 in |
| Shaft Rotation | Reversible |
| Shaft Type | T |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, CE, UL |
