Brand: Marathon
SKU: 184TTTN16545

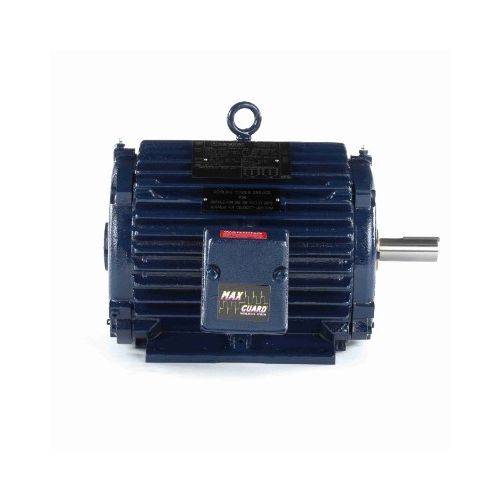

Marathon 184TTTN16545, Motor, 5 HP, 230/460 Volts, 6.2 Amps, 3 Phase, 1755 RPM, 60 Hz, TEAO Enclosure, 184TV Frame, Rigid Base, Cast Iron Frame, Catalog No: U1868
Marathon Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Marathon 184TTTN16545, Motor, 5 HP, 230/460 Volts, 6.2 Amps, 3 Phase, 1755 RPM, 60 Hz, TEAO Enclosure, 184TV Frame, Rigid Base, Cast Iron Frame, Catalog No: U1868 | 1 | $1,191.10/each |
Description
Marathon Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies.
Specifications
| Brand | Marathon |
| Catalog No | U1868 |
| Product Type | Motor |
| Horsepower | 5 Hp |
| Voltage | 230/460 Volts |
| Phase | 3 |
| Output KW | 3.7 kW |
| Frequency | 60 Hz |
| Speed | 1755 RPM |
| Current | 6.2 Amps |
| Enclosure | TEAO |
| FrameSize | 184TV |
| Motor Orientation | Horizontal Or Up Or Down |
| Number of Poles | 4 |
| Mounting Type | Rigid Base |
| Frame Material | Cast Iron |
| Overall Length | 15.74 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 90.20% |
| Duty Rating | Continous |
| Overload Protector | No |
| Electrical Type | Squirrel Cage Inverter Rated |
| Starting Method | Line Or Inverter |
| Design Code | B |
| KVA Code | J |
| Frame Length | 10.00 in |
| Shaft Diameter | 1.125 in |
| Insulation Class | F |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 2.85 in |
| Shaft Rotation | Reversible |
| Shaft Type | T |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, CE, UL |
