Brand: Marathon
SKU: 182TTTS18532

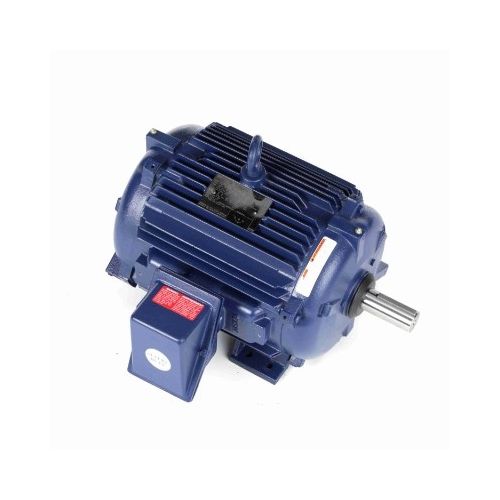

Marathon 182TTTS18532, Motor, 3 HP, 460 Volts, 3.9 Amps, 3 Phase, 1755 RPM, 60 Hz, TEAO Enclosure, 182T Frame, Rigid Base, Cast Iron Frame, Catalog No: S506
Marathon Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Marathon 182TTTS18532, Motor, 3 HP, 460 Volts, 3.9 Amps, 3 Phase, 1755 RPM, 60 Hz, TEAO Enclosure, 182T Frame, Rigid Base, Cast Iron Frame, Catalog No: S506 | 1 | $2,014.50/each |
Description
Marathon Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies.
Specifications
| Brand | Marathon |
| Catalog No | S506 |
| Product Type | Motor |
| Horsepower | 3 Hp |
| Voltage | 460 Volts |
| Phase | 3 |
| Output KW | 2.2 kW |
| Frequency | 60 Hz |
| Speed | 1755 RPM |
| Current | 3.9 Amps |
| Enclosure | TEAO |
| FrameSize | 182T |
| Motor Orientation | Horizontal |
| Number of Poles | 4 |
| Mounting Type | Rigid Base |
| Frame Material | Cast Iron |
| Overall Length | 13.74 in |
| Service Factor | 1 |
| Efficiency @ 100% Load | 90.20% |
| Duty Rating | Continous |
| Overload Protector | No |
| Electrical Type | Squirrel Cage Inverter Rated |
| Starting Method | Line Or Inverter |
| Design Code | B |
| KVA Code | K |
| Frame Length | 6.75 in |
| Shaft Diameter | 1.125 in |
| Insulation Class | H |
| Opp Drive End Bearing | Ball / Heat Stabilized |
| Drive End Bearing | Ball / Heat Stabilized |
| Shaft Extension Location | 2.81 in |
| Shaft Rotation | Reversible |
| Shaft Type | T |
| Ambient Temperature | 100 °C |
| Agency Approvals | CSA, CE, UL |
