Brand: Leeson
SKU: 120728.00

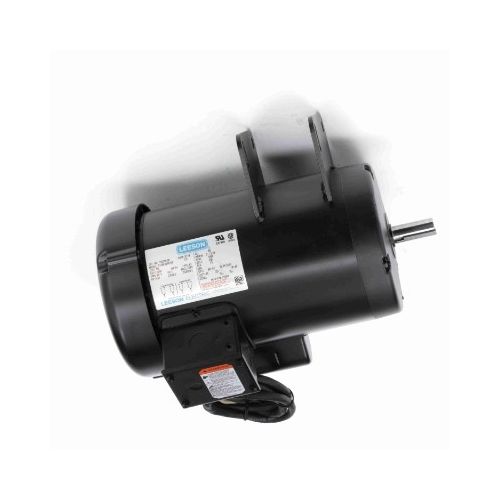

Leeson 120728.00, Motor, 3 HP, 230 Volts, 13.0 Amps, 1 Phase, 3450 RPM, 60 Hz, TEFC Enclosure, 145Y Frame, Round, Rolled Steel Frame, Model no: C145K34FB12E
Leeson Motor
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Leeson 120728.00, Motor, 3 HP, 230 Volts, 13.0 Amps, 1 Phase, 3450 RPM, 60 Hz, TEFC Enclosure, 145Y Frame, Round, Rolled Steel Frame, Model no: C145K34FB12E | 1 | $1,608.61/each |
Description
Leeson Motor
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Specifications
| Brand | Leeson |
| Model no | C145K34FB12E |
| Product Type | Motor |
| Horsepower | 3 HP |
| Voltage | 230 Volts |
| Phase | 1 |
| Output KW | 2.2 kW |
| Frequency | 60 Hz |
| Speed | 3450 RPM |
| Current | 13.0 Amps |
| Enclosure | TEFC |
| Frame Size | 145Y |
| Motor Orientation | Horizontal |
| Number of Poles | 2 |
| Mounting Type | Round |
| Frame Material | Rolled Steel |
| Overall Length | 12.86 in |
| Service Factor | 1 |
| Efficiency @ 100% Load | 81.50% |
| Duty Rating | Continuous |
| Overload Protector | No |
| Electrical Type | Capacitor Start Capacitor Run |
| Starting Method | Across The Line |
| Design Code | L |
| KVA Code | J |
| Frame Length | 8.50 in |
| Shaft Diameter | 0.750 in |
| Insulation Class | F |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 1.75 in |
| Shaft Rotation | Fixed Counterclockwise |
| Shaft Type | Single Special Extension |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, CE, UL |
