Brand: Marathon
SKU: 048A11O251

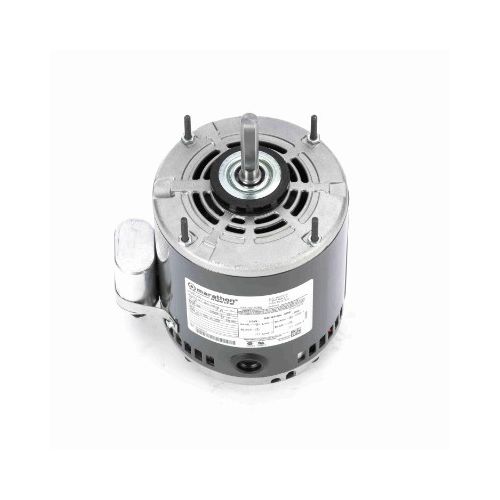

Marathon 048A11O251, Motor, 17/100 HP, 115 Volts, 2.2 Amps, 1 Phase, 1075 RPM, 60 Hz, OAO Enclosure, 48Z Frame, Resilient Ring - Extended Studs, Rolled Steel Frame, Catalog No: X260
Marathon Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Marathon 048A11O251, Motor, 17/100 HP, 115 Volts, 2.2 Amps, 1 Phase, 1075 RPM, 60 Hz, OAO Enclosure, 48Z Frame, Resilient Ring - Extended Studs, Rolled Steel Frame, Catalog No: X260 | 1 | $375.24/each |
Description
Marathon Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies.
Specifications
| Brand | Marathon |
| Catalog No | X260 |
| Product Type | Motor |
| Horsepower | 17/100 HP |
| Voltage | 115 Volts |
| Phase | 1 |
| Output KW | 0.13 kW |
| Frequency | 60 Hz |
| Speed | 1075 RPM |
| Current | 2.2 Amps |
| Enclosure | OAO |
| FrameSize | 48Z |
| Motor Orientation | HORIZONTAL |
| Number of Poles | 6 |
| Mounting Type | Resilient Ring - Extended Studs |
| Frame Material | Rolled Steel |
| Overall Length | 9.84 in |
| Service Factor | 1 |
| Efficiency @ 100% Load | 56.40% |
| Duty Rating | Continuous |
| Overload Protector | Automatic Lock Rotor Only |
| Electrical Type | Permanent Split Capacitor |
| Starting Method | Across The Line |
| Design Code | NO DESIGN CODE |
| KVA Code | D |
| Frame Length | 5.25 in |
| Shaft Diameter | 0.500 in |
| Insulation Class | B |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 2.59 in |
| Shaft Rotation | Selective Counterclockwise |
| Shaft Type | Single Special Extension |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, CE, UL |
