Brand: Liberty
SKU: LE52M

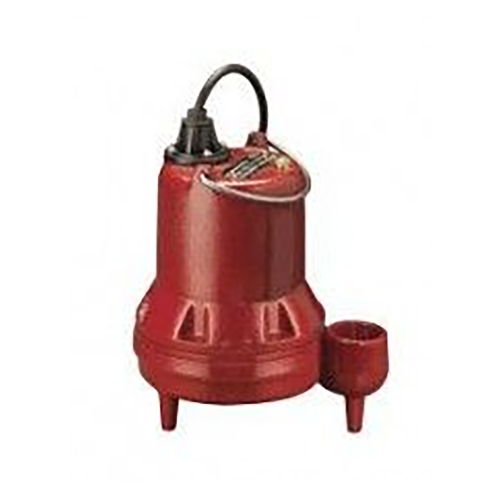

Liberty LE52M, Manual Submersible Sewage Pump , 1/2 HP, 208-230 Volts, 1 Phase, 2" FNPT Discharge, 158 GPM Max, 24 ft Max Head, 10 ft Cord
Liberty Pumps LE52M is a 230v, 1/2 HP Manual Submersible Sewage/Effluent Pump with 10 ft quick-disconnect power cord. These pumps are intended for usage with approved liquid level control or approved motor control with correct rating that matches motor input in full load amperes. For automatic operation a separate approved pump control device or panel is required.
CAUTION: Do not let the pump run dry.
Features:
- Heavy cast iron construction
- Oil filled, thermally protected motor
- Permanently lubricated bearings
- 2-vane, corrosion resistant HYTREL impeller
- All stainless steel fasteners and rotor shaft
- Quick-disconnect 10' standard power cord allows replacement of cord in seconds without breaking seals to motor
Control Panel Options
Below are Liberty control panels that can be used with this pump.
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Liberty LE52M, Manual Submersible Sewage Pump , 1/2 HP, 208-230 Volts, 1 Phase, 2" FNPT Discharge, 158 GPM Max, 24 ft Max Head, 10 ft Cord | 1 | $537.69/each |
Description
Liberty Pumps LE52M is a 230v, 1/2 HP Manual Submersible Sewage/Effluent Pump with 10 ft quick-disconnect power cord. These pumps are intended for usage with approved liquid level control or approved motor control with correct rating that matches motor input in full load amperes. For automatic operation a separate approved pump control device or panel is required.
CAUTION: Do not let the pump run dry.
Features:
- Heavy cast iron construction
- Oil filled, thermally protected motor
- Permanently lubricated bearings
- 2-vane, corrosion resistant HYTREL impeller
- All stainless steel fasteners and rotor shaft
- Quick-disconnect 10' standard power cord allows replacement of cord in seconds without breaking seals to motor
Control Panel Options
Below are Liberty control panels that can be used with this pump.
Specifications
| Brand | Liberty |
| Mfg. Number | LE52M |
| Series | LE50 |
| Product Type | Sewage pump |
| Application | Sewage |
| Operation | Manual |
| Horsepower | 1/2 HP |
| Voltage | 208-230 Volts |
| Phase | 1 |
| Frequency | 60 Hz |
| Speed | 1725 RPM |
| Volute Material | Gray iron |
| Impeller Type | 2 vane, semi-open |
| Discharge Connection | 2" FNPT |
| Maximum Flow | 158 GPM |
| Maximum Head | 24 ft |
| Maximum Solids Handling | 2" |
| Cord Length | 10 ft |
| Maximum Fluid Temperature | 140°F |
