Brand: Leeson
SKU: 113955.00

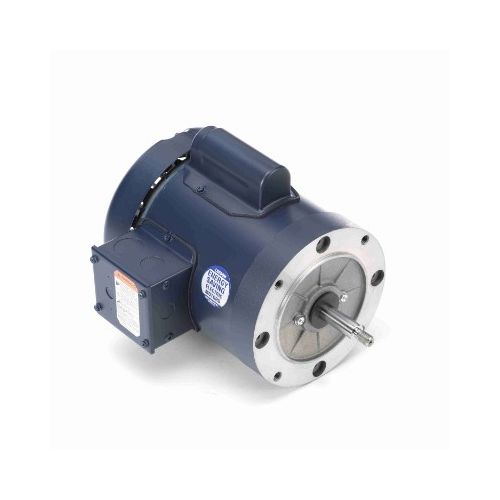

Leeson 113955.00, Jet Pump Motor, 1/2 Hp, 115/208-230 Volts, 3.8 Amps, 1 Phase, 60 Hz, 3450 RPM, TEFC Enclosure, 56J Frame, Round, Rolled Steel Frame, Model no: A6C34FC44F
Leeson Jet Pump Motor
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Leeson 113955.00, Jet Pump Motor, 1/2 Hp, 115/208-230 Volts, 3.8 Amps, 1 Phase, 60 Hz, 3450 RPM, TEFC Enclosure, 56J Frame, Round, Rolled Steel Frame, Model no: A6C34FC44F | 1 | $648.90/each |
Description
Leeson Jet Pump Motor
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Specifications
| Brand | Leeson |
| Model no | A6C34FC44F |
| Product Type | Jet Pump Motor |
| Horsepower | 1/2 Hp |
| Voltage | 115/208-230 Volts |
| Phase | 1 |
| Output KW | 0.37 kW |
| Frequency | 60 Hz |
| Speed | 3450 RPM |
| Current | 3.8 Amps |
| Enclosure | TEFC |
| Frame Size | 56J |
| Motor Orientation | HORIZONTAL |
| Number of Poles | 2 |
| Mounting Type | Round |
| Frame Material | Rolled Steel |
| Overall Length | 11.28 in |
| Service Factor | 1.6 |
| Efficiency @ 100% Load | 63% |
| Duty Rating | Continuous |
| Overload Protector | Automatic |
| Electrical Type | Capacitor Start Induction Run |
| Starting Method | Across The Line |
| Design Code | N |
| KVA Code | M |
| Frame Length | 5.50 in |
| Shaft Diameter | 0.625 in |
| Insulation Class | B |
| Opp Drive End Bearing | BALL |
| Drive End Bearing | BALL |
| Shaft Extension Location | 2.44 in |
| Shaft Rotation | Fixed Clockwise |
| Shaft Type | J |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, CE, UL |
