Brand: Marathon
SKU: 145THTR16032

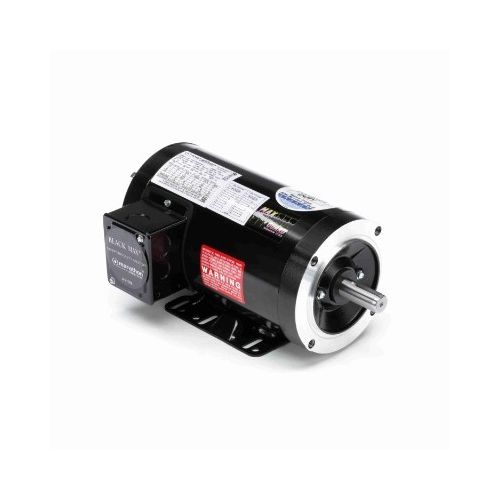

Marathon 145THTR16032, Inverter Duty Variable Speed Motor, 2 HP, 230/460 Volts, 3.0 Amps, 3 Phase, 60 Hz, 1745 RPM, TENV Enclosure, 145TC Frame, Rigid Base, Rolled Steel Frame, Catalog No: Y612
Marathon Inverter Duty Variable Speed Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Marathon 145THTR16032, Inverter Duty Variable Speed Motor, 2 HP, 230/460 Volts, 3.0 Amps, 3 Phase, 60 Hz, 1745 RPM, TENV Enclosure, 145TC Frame, Rigid Base, Rolled Steel Frame, Catalog No: Y612 | 1 | $1,809.50/each |
Description
Marathon Inverter Duty Variable Speed Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies.
Specifications
| Brand | Marathon |
| Catalog No | Y612 |
| Product Type | Inverter Duty Variable Speed Motor |
| Horsepower | 2 HP |
| Voltage | 230/460 Volts |
| Phase | 3 |
| Output KW | 1.5 kW |
| Frequency | 60 Hz |
| Speed | 1745 RPM |
| Current | 3.0 Amps |
| Enclosure | TENV |
| Frame Size | 145TC |
| Motor Orientation | Horizontal |
| Number of Poles | 4 |
| Mounting Type | Rigid Base |
| Frame Material | Rolled Steel |
| Overall Length | 16.04 in |
| Service Factor | 1 |
| Efficiency @ 100% Load | 86.50% |
| Duty Rating | Continous |
| Overload Protector | No |
| Electrical Type | Squirrel Cage Inverter Duty |
| Starting Method | Inverter Only |
| Design Code | INV |
| KVA Code | M |
| Frame Length | 9.56 in |
| Shaft Diameter | 0.875 in |
| Insulation Class | F |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 2.12 in |
| Shaft Rotation | Reversible |
| Shaft Type | T |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, CE, UL |
