Brand: Baldor
SKU: ECP84402T-5

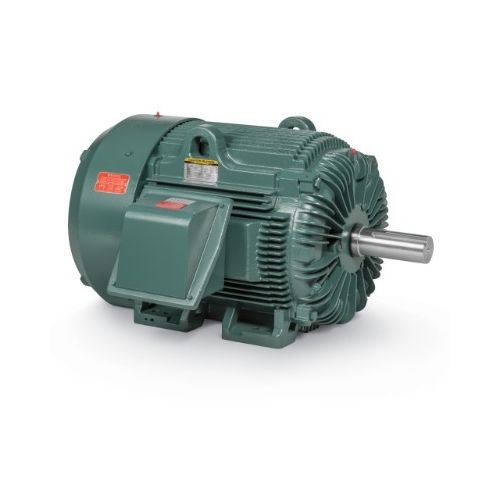

Baldor ECP84402T-5, IEEE 841 Motor, 100 HP, 575 Volts, 88.0 Amps, 3 Phase, 60 Hz, 3565 RPM, TEF Enclosure, 405TS Frame, Standard, Foot Mounted, A40060M Motor Type, Cast Iron Frame
Baldor IEEE 841 Motors
Motors is designed to meet and exceed the requirments of IEEE Std. 841. This Industry standard created for the Petrolium and Chemical Indusrty to improve the reliability, efficiency and performance of Severe Duty motors used in those applications. Other severe process industries like Forest Products have also adopted using the IEEE 841 spec as it helps promote uniform motor specification and reduce total cost of ownership.
Features
- Chemical Industry
- Oil & Gas Industry
- Forest Products Industry
Application
- Compressors
- Pumps
- Fans
- Conveyors
- Gear Reducers
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Baldor ECP84402T-5, IEEE 841 Motor, 100 HP, 575 Volts, 88.0 Amps, 3 Phase, 60 Hz, 3565 RPM, TEF Enclosure, 405TS Frame, Standard, Foot Mounted, A40060M Motor Type, Cast Iron Frame | 1 | $29,662.34/each |
Description
Baldor IEEE 841 Motors
Motors is designed to meet and exceed the requirments of IEEE Std. 841. This Industry standard created for the Petrolium and Chemical Indusrty to improve the reliability, efficiency and performance of Severe Duty motors used in those applications. Other severe process industries like Forest Products have also adopted using the IEEE 841 spec as it helps promote uniform motor specification and reduce total cost of ownership.
Features
- Chemical Industry
- Oil & Gas Industry
- Forest Products Industry
Application
- Compressors
- Pumps
- Fans
- Conveyors
- Gear Reducers
Specifications
| Brand | Baldor |
| Mfg. Number | ECP84402T-5 |
| Product Type | IEEE 841 Motor |
| Horsepower | 100 HP |
| Voltage | 575 Volts |
| Phase | 3 |
| Frequency | 60 Hz |
| Synchronous Speed | 3600 RPM |
| Speed | 3565 RPM |
| Speed Code | Single Speed |
| High Voltage Full Load Amps | 88.0 Amps |
| Enclosure | TEF |
| Frame Size | 405TS |
| Motor Type | A40060M |
| Motor Standards | None |
| Number of Poles | 2 |
| Pulley Face Code | Standard |
| Frame Material | Cast Iron |
| Motor Lead Quantity/Wire Size | 3 @ 2 AWG |
| Overall Length | 35.04 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 95.00% |
| Duty Rating | CONT |
| Inverter Code | Inverter ready |
| Auxillary Box | No Auxillary Box |
| Base Indicator | Rigid |
| Bearing Grease Type | POLYREX EM (-20F +300F) |
| Current | 88.0 A |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Heater Indicator | No heater |
| KVA Code | F |
| Rodent Screen | None |
| Shaft Diameter | 2.125 in |
| Insulation Class | F |
| Power Factor | 90 |
| Pulley End Bearing Type | Ball |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Starting Method | Direct on line |
| Vibration Sensor Indicator | No Vibration Sensor |
| Thermal Device - Bearing | No |
| Thermal Device - Winding | No |
| Ambient Temperature | 40 °C |
| Agency Approvals | CCSA, US, CSA, EEV, UR |
