Brand: Baldor
SKU: ECP84400T-4

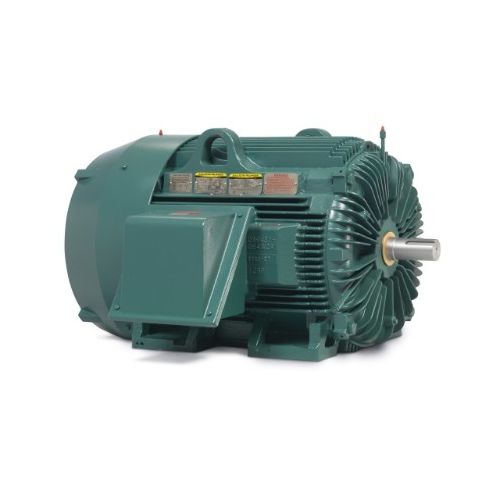

Baldor ECP84400T-4, IEEE 841 Motor, 100 HP, 460 Volts, 112.0 Amps, 3 Phase, 60 Hz, 1785 RPM, TEFC Enclosure, 405T Frame, Standard, Foot Mounted, A40064M Motor Type, Cast Iron Frame
Baldor IEEE 841 Motors
Motors is designed to meet and exceed the requirments of IEEE Std. 841. This Industry standard created for the Petrolium and Chemical Indusrty to improve the reliability, efficiency and performance of Severe Duty motors used in those applications. Other severe process industries like Forest Products have also adopted using the IEEE 841 spec as it helps promote uniform motor specification and reduce total cost of ownership.
Features
- Chemical Industry
- Oil & Gas Industry
- Forest Products Industry
Application
- Compressors
- Pumps
- Fans
- Conveyors
- Gear Reducers
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Baldor ECP84400T-4, IEEE 841 Motor, 100 HP, 460 Volts, 112.0 Amps, 3 Phase, 60 Hz, 1785 RPM, TEFC Enclosure, 405T Frame, Standard, Foot Mounted, A40064M Motor Type, Cast Iron Frame | 1 | $31,019.46/each |
Description
Baldor IEEE 841 Motors
Motors is designed to meet and exceed the requirments of IEEE Std. 841. This Industry standard created for the Petrolium and Chemical Indusrty to improve the reliability, efficiency and performance of Severe Duty motors used in those applications. Other severe process industries like Forest Products have also adopted using the IEEE 841 spec as it helps promote uniform motor specification and reduce total cost of ownership.
Features
- Chemical Industry
- Oil & Gas Industry
- Forest Products Industry
Application
- Compressors
- Pumps
- Fans
- Conveyors
- Gear Reducers
Specifications
| Brand | Baldor |
| Mfg. Number | ECP84400T-4 |
| Product Type | IEEE 841 Motor |
| Horsepower | 100 HP |
| Voltage | 460 Volts |
| Phase | 3 |
| Frequency | 60 Hz |
| Synchronous Speed | 1800 RPM |
| Speed | 1785 RPM |
| Speed Code | Single Speed |
| High Voltage Full Load Amps | 112.0 Amps |
| Enclosure | TEFC |
| Frame Size | 405T |
| Motor Type | A40064M |
| Motor Standards | None |
| Number of Poles | 4 |
| Pulley Face Code | Standard |
| Frame Material | Cast Iron |
| Motor Lead Quantity/Wire Size | 3 @ 2 AWG |
| Overall Length | 38.20 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 95.40% |
| Duty Rating | CONT |
| Inverter Code | Inverter ready |
| Auxillary Box | No Auxillary Box |
| Base Indicator | Rigid |
| Bearing Grease Type | POLYREX EM (-20F +300F) |
| Current | 112.0 A |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Heater Indicator | No heater |
| KVA Code | G |
| Rodent Screen | None |
| Shaft Diameter | 2.875 in |
| Insulation Class | F |
| Power Factor | 87 |
| Pulley End Bearing Type | Ball |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Starting Method | Direct on line |
| Vibration Sensor Indicator | No Vibration Sensor |
| Thermal Device - Bearing | No |
| Thermal Device - Winding | No |
| Ambient Temperature | 40 °C |
| Agency Approvals | CCSA, US, CSA, EEV, UR |
