Brand: Baldor
SKU: ECP83581T-5

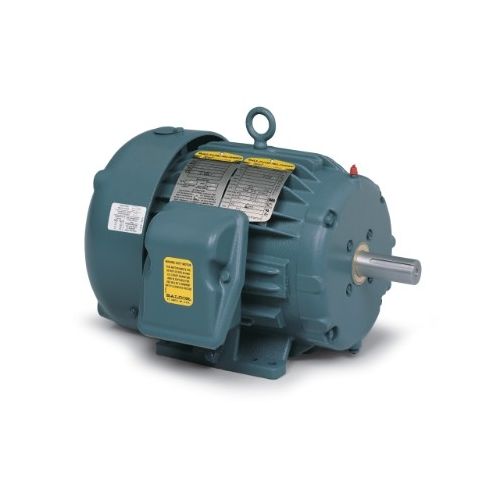

Baldor ECP83581T-5, IEEE 841 Motor, 1 HP, 575 Volts, 1.2 Amps, 3 Phase, 60 Hz, 1765 RPM, TEFC Enclosure, 143T Frame, Standard, 0524M Motor Type, Cast Iron Frame
Baldor IEEE 841 Motors
Motors is designed to meet and exceed the requirments of IEEE Std. 841. This Industry standard created for the Petrolium and Chemical Indusrty to improve the reliability, efficiency and performance of Severe Duty motors used in those applications. Other severe process industries like Forest Products have also adopted using the IEEE 841 spec as it helps promote uniform motor specification and reduce total cost of ownership.
Features
- Chemical Industry
- Oil & Gas Industry
- Forest Products Industry
Application
- Compressors
- Pumps
- Fans
- Conveyors
- Gear Reducers
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Baldor ECP83581T-5, IEEE 841 Motor, 1 HP, 575 Volts, 1.2 Amps, 3 Phase, 60 Hz, 1765 RPM, TEFC Enclosure, 143T Frame, Standard, 0524M Motor Type, Cast Iron Frame | 1 | $2,215.68/each |
Description
Baldor IEEE 841 Motors
Motors is designed to meet and exceed the requirments of IEEE Std. 841. This Industry standard created for the Petrolium and Chemical Indusrty to improve the reliability, efficiency and performance of Severe Duty motors used in those applications. Other severe process industries like Forest Products have also adopted using the IEEE 841 spec as it helps promote uniform motor specification and reduce total cost of ownership.
Features
- Chemical Industry
- Oil & Gas Industry
- Forest Products Industry
Application
- Compressors
- Pumps
- Fans
- Conveyors
- Gear Reducers
Specifications
| Brand | Baldor |
| Mfg. Number | ECP83581T-5 |
| Product Type | IEEE 841 Motor |
| Horsepower | 1 HP |
| Voltage | 575 Volts |
| Phase | 3 |
| Frequency | 60 Hz |
| Synchronous Speed | 1800 RPM |
| Speed | 1765 RPM |
| Speed Code | Single Speed |
| High Voltage Full Load Amps | 1.2 Amps |
| Enclosure | TEFC |
| Frame Size | 143T |
| Motor Type | 0524M |
| Motor Standards | NEMA |
| Number of Poles | 4 |
| Pulley Face Code | Standard |
| Frame Material | Cast Iron |
| Motor Lead Quantity/Wire Size | 3 @ 18 AWG |
| Overall Length | 12.87 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 87.50% |
| Duty Rating | CONT |
| Inverter Code | Inverter duty |
| Auxillary Box | No Auxillary Box |
| Base Indicator | Rigid |
| Bearing Grease Type | POLYREX EM (-20F +300F) |
| Current | 1.2 A |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Heater Indicator | No heater |
| KVA Code | N |
| Motor Lead Exit | KO Box |
| Motor Lead Termination | Flying Leads |
| Rodent Screen | None |
| Shaft Diameter | 0.875 in |
| Insulation Class | F |
| Power Factor | 70 |
| Pulley End Bearing Type | Ball |
| Shaft Extension Location | Pulley End |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | Shaft Slinger |
| Starting Method | Direct on line |
| Vibration Sensor Indicator | No Vibration Sensor |
| Thermal Device - Bearing | No |
| Thermal Device - Winding | No |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, CSA, EEV, UR |
