Brand: Marathon
SKU: 080T17FH15514

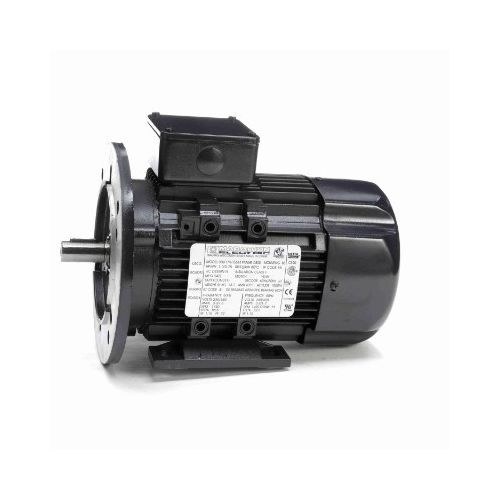

Marathon 080T17FH15514, IEC General Purpose Motor, 1 HP, 230/460 Volts, 1.5 Amps, 3 Phase, 1740 RPM, 60 Hz, TEFC Enclosure, D80D Frame, Rigid Base, Aluminum Frame, Catalog No: R393A
Marathon IEC General Purpose Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Marathon 080T17FH15514, IEC General Purpose Motor, 1 HP, 230/460 Volts, 1.5 Amps, 3 Phase, 1740 RPM, 60 Hz, TEFC Enclosure, D80D Frame, Rigid Base, Aluminum Frame, Catalog No: R393A | 1 | $814.92/each |
Description
Marathon IEC General Purpose Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies
Specifications
| Brand | Marathon |
| Catalog No | R393A |
| Product Type | IEC General Purpose Motor |
| Horsepower | 1 HP |
| Voltage | 230/460 Volts |
| Phase | 3 |
| Output KW | 0.75 kW |
| Frequency | 60 Hz |
| Speed | 1740 RPM |
| Current | 1.5 Amps |
| Enclosure | TEFC |
| Frame Size | D80D |
| Motor Orientation | Horizontal |
| Number of Poles | 4 |
| Mounting Type | Rigid Base |
| Frame Material | Aluminum |
| Overall Length | 11.88 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 85.50% |
| Duty Rating | Continuous |
| Overload Protector | No |
| Electrical Type | Squirrel Cage Induction Run |
| Starting Method | Across The Line |
| KVA Code | J |
| Frame Length | 6.10 in |
| Shaft Diameter | 0.750 in |
| Insulation Class | F |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 1.57 in |
| Shaft Rotation | Reversible |
| Shaft Type | IEC |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, CE, UL |
